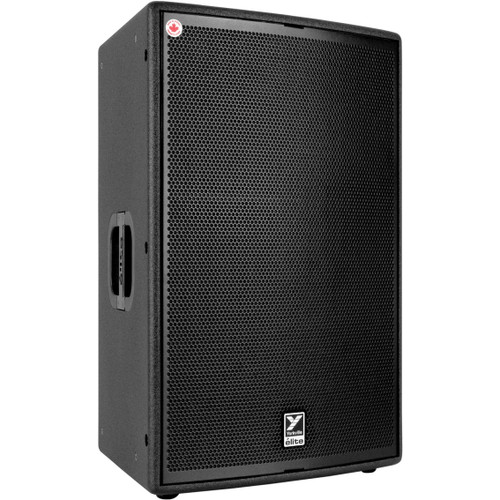

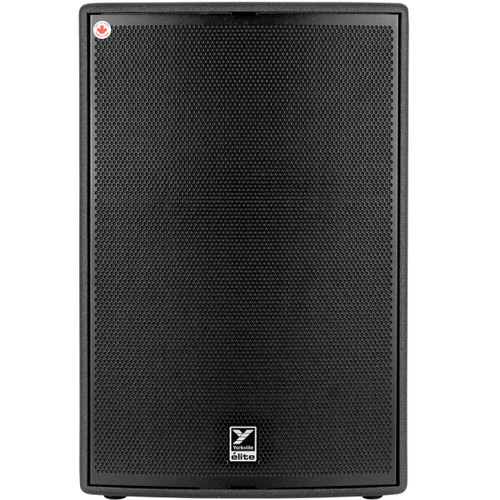

The EL15P Elite Series is a professional 15" powered loudspeaker engineered to deliver exceptional output, clarity, and reliability for demanding live sound environments. Designed and manufactured in Canada, the EL15P combines a high-efficiency 15" neodymium woofer with a premium high-frequency compression driver to provide powerful full-range performance with outstanding detail and projection. Its integrated amplifier delivers up to 2500 watts peak power, making it an ideal solution for portable PA systems, venues, houses of worship, and production companies.
Built for professional use, the EL15P features a rugged 15 mm birch plywood enclosure that withstands the rigors of touring and permanent installations. Integrated fly points and a pole mount adapter provide flexible deployment options, while an optional mounting bracket supports multi-cabinet flown configurations. The durable cabinet design ensures long-term reliability without compromising acoustic performance.

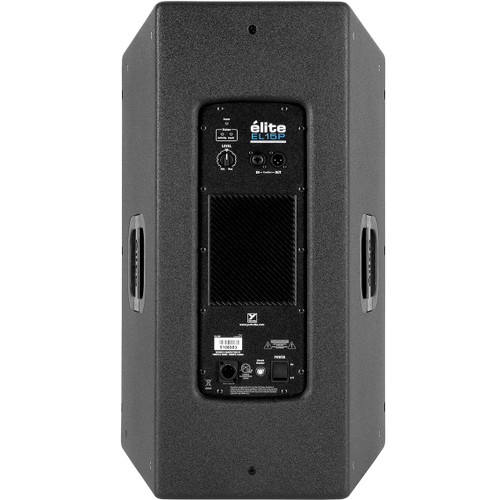

Connectivity is streamlined with a combo XLR/TRS input, XLR output, and a powerCON TRUE1 compatible power connection for secure operation. An onboard limiter helps protect the system during demanding performances, while compatibility with Yorkville EL12M stage monitors and EL18S or EL21S subwoofers allows users to build a complete Elite Series sound reinforcement system.
| System Type | Powered Loudspeaker |
|---|---|
| Power Rating | 2500W Peak (1250W Program) |
| Max SPL | 139 dB Peak (127 dB Continuous) |
| Frequency Response | 50 Hz - 20 kHz (+/- 3 dB) |
| Dispersion (H x V) | 60° x 40° |
| Crossover Frequency | 850 Hz |
| HF Driver(s) | ABS Horn with 1.4" exit, 3" Voice Coil, and Neodymium Magnet |
| HF Dispersion (°H x °V) | 60° x 40° |
| LF Driver(s) | 15" with 3" Voice Coil and Neodymium Magnet |
| Power Cable | powerCON TRUE1 Compatible Connector |
| Power Consumption (typ/max) | 3A, 7.5A |
| Inputs | 1x Combo-jack (XLR / 1/4" TRS) |
| Outputs | 1x XLR |
| Level Controls | Yes |
| LED Indicators | Power, Activity, Protection |
| Bar Handles | 2x Side |
| Flypoints | 4x Top, 4x Bottom, 2x Pull Back (1/4-20) |

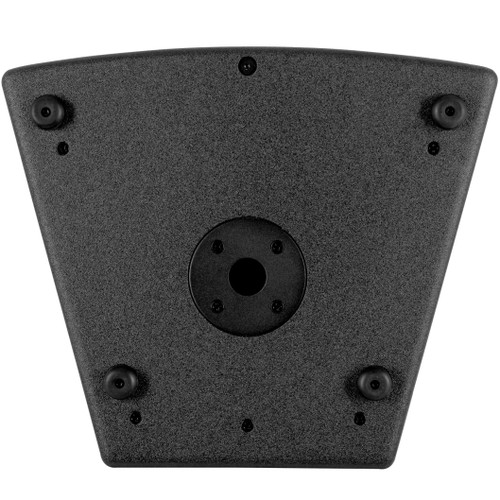

| Pole Mount Adapter | 1x Bottom |
| Enclosure Materials | 15 mm Birch Plywood |
| Grille | Powder-Coated Steel |
| Covering/Finish | Textured Paint |
| Optional Flying Hardware | EL15PBRACKET - For Arraying 2 - 3 Cabinets (Sold Separately) |
| Dimensions (H x W x D) | 28.6" (726.44 mm) x 18.5" (469.9 mm) x 15.8" (401.32 mm) |
| Weight | 62 lbs (28 kg) |
