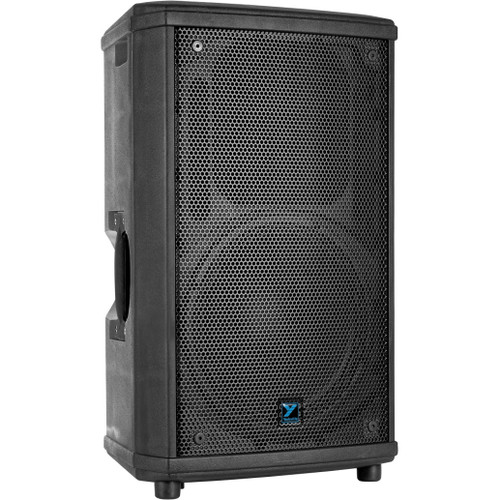

The NX35-2 is a high-performance 12-inch 2-way passive loudspeaker designed for venues and professionals using external power amplifiers. Rated at 1000 watts peak (500 watts program), it delivers powerful, balanced sound in a compact enclosure suited for front-of-house or stage monitor use. As an evolution of the original NX20, the NX35-2 features increased cabinet volume for improved low-frequency response and enhanced overall performance.
Equipped with a 12-inch low-frequency driver with a 2.5-inch voice coil and a 1.4-inch high-frequency driver, the NX35-2 provides clear mids, articulate highs, and strong low-end punch. The 80 x 50 degree horn design, modeled after the custom waveguide found in Yorkville's Elite series, ensures smooth, even high-frequency dispersion for consistent coverage across the audience area.
The custom-molded composite enclosure uses low-resonance, variable-density materials with rigid internal bracing for durability and reduced cabinet vibration. Resistant to UV and moisture, the NX35-2 is built for long-term reliability in portable or installed applications. With dual 1/4 inch and speakON inputs and integrated flying hardware, it offers flexible connectivity and installation options for professional sound reinforcement systems.
| System Type | 2-way |
|---|---|
| Powered or Passive | Passive |
| Program Power (watts) | 1000 watts peak, 500 watts program |
| Biampable | No |
| Nominal Impedance (Ohms) | 8 |
| Max SPL (dB) | 127dB continuous |
| Frequency Response | 60 - 18k (Hz +/-3 dB) |
| Crossover Frequency | 2 kHz |
| LF Driver | 12" |
| HF Driver | 1.4" |
| HF Horn | Integrated into Baffle |
| HF Dispersion (°H x °V) | 80° x 50° |
| Inputs | 2x Speakon 2x 1/4" |
| Flying Hardware | 2x Top, 2x Bottom 1x Pullback 1/4-20 Threading |
| Optional Flying Hardware | NXF35U (U-bracket) NXF35W (Wall bracket) NXF35A (Array adaptor) |
| Bar Handles | 1x Side |
| Pole Mount Adapter | 1 Bottom (1 3/8-inch/3.5 cm) |
| Enclosure Materials | Polypropylene Cabinet |
| Grille | Powdered Coated Perforated Steel |
| Covering/Finish | Molded Polypropylene |
| Dimensions (H x W x D) | 26.5" (673.1 mm) x 16" (406.4 mm) x 12.25" (311.15 mm) |
| Weight | 28 lbs (12.7 kg) |
