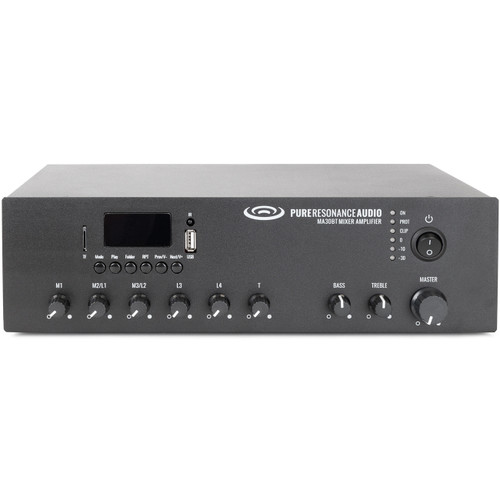

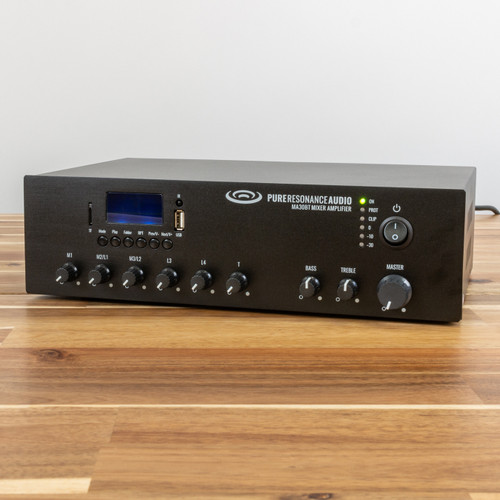

Commercial Audio 30W Mixer Amplifier for Paging and BGM
Versatility
This 7-channel mixer amplifier from Pure Resonance Audio with built-in 70V/100V transformer technology provides a simple-to-operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. With an easy-to-use interface, balanced and unbalanced inputs, and 70V, 100V, 8 ohm, or 4 ohm outputs, this versatile and compact mixer-amp is an easy choice for any application in need of background music and general announcements and is equipped with paging and MOH (Music On Hold). It's perfect for use in restaurants, retail stores, offices, schools, hospitality environments and more.
Flexibility
The onboard plug-in-play MP3 player accepts TF cards and USB thumb drives that can be plugged in on the front panel. The unit includes RCA inputs and RCA line level outputs, a telephone input with VOX priority and an MOH (Music on Hold) output, as well as an XLR input with phantom power. The IR remote for MP3, FM Radio, and Bluetooth provides freedom and flexibility allowing full control, even from across the room.
Bluetooth-Enabled
This compact public address amplifier also supports playback from Bluetooth-enabled devices such as PCs, iPads, tablets, or mobile phones, enabling you to walk in and link up with your Bluetooth wireless connection to instantly play music or any sound source file.
Due to the possibilities of FM radio interference and the variables involved, it's not recommended to use FM radio as your primary input source.
- Features
Features
- 7-channel powered mixer amplifier (6 inputs + Bluetooth media player)
- Volume controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
- MP3 player, FM radio and Bluetooth (with IR remote control)
- USB and TF inputs on front panel
- Power output rating 30 watts
- Built-in 70V/100V transformer
- Speaker outputs: 70V, 100V, 4, 8 and 16 ohms
- Mic 1 of balanced XLR input (with phantom power)
- Mic 2-3 microphone or line switchable
- Line 1-2 input of RCA inputs
- DIP switches for Mic/Line, phantom power and microphone priority
- Unbalanced 6.3 mm phone jack input
- One RCA line output (0.775 line level 0 dBV)
- Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
- LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
- Short-circuit, clip, overload and high temp protection
- 24 VDC Emergency backup supply
- 115V 60 Hz and 24V DC both operation system
- Specification
Rated Power Output 30W Speaker Outputs 70V, 100V and 4 Ohms, 8 Ohms or 16 Ohms Connectors Mic 1 input by balanced XLR with phantom power
Input 2-3 Mic/Line switchable unbalanced 6.3 mm phone jack
Line 1-2 inputs by RCA; Line output by RCAAttenuation Microphone 1-3, line 1-2 and MP3/FM Radio, bass/treble and master Input MIC 1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA Line Out 0.775 (0dBV) Frequency Response 60Hz - 15kHz (±3dB) S/N Ratio Line ≥ 85dB, Mic≥ 72dB THD Less than 0.5% Protection Short-circuit, clip, overload and high temp protection Power Consumption 60W Power Supply 115V 60Hz & 24V DC Remote Control IR remote control with (replaceable) CR2025 3V lithium battery Dimensions (H x W x D) 3.5" (88 mm) x 11.8" (300 mm) x 10.8" (275 mm) Weight 7.9 lbs (3.6 kg) - Documents
- In The Box
In The Box
- (1) MA30BT Bluetooth Mixer Amplifier
- (1) IR Remote Control
- (1) Power Cord
