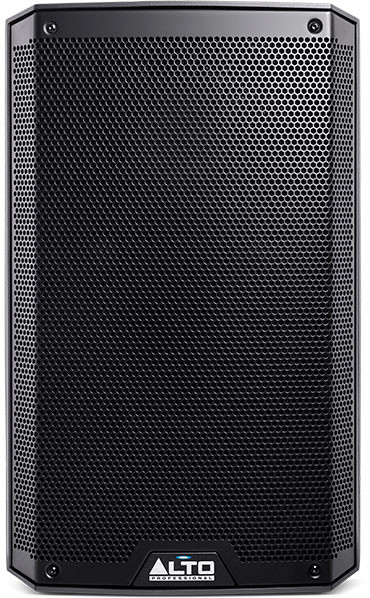

The Alto Truesonic TS210 is the result of a clean-sheet approach to designing professional speakers that strike an ideal balance between no-compromise acoustic performance, the complete array of features that users demand and outstanding ergonomics and utility—all coupled with a stunning new industrial design.
The amplifier is rated at 550W continuous, 1100W peak—a significant increase over the previous line. This higher power capability ensures greater output for use in larger spaces, with increased clarity, since the amplifiers won’t “run out of steam” and distort the way less powerful units will.
The industrial design is more than just beautiful. The TS210 has two integrated handles, making it easy to pick up in either H or V orientation. It also employs professional-grade M10 rigging/suspension points. The tough, durable cabinets have excellent acoustic properties, while their light weight makes them easy to transport.
Because of the cutting-edge, high-efficiency amplifier, this speaker run at far lower temperatures than conventional amplifiers, even during extended periods of high output. The ground-up design effort for this speaker enabled us to incorporate advanced amplifiers with superior heat-dissipation characteristics, eliminating the need for costly, noisy cooling fans. The result is a powered speaker system that is cleaner, quieter and more reliable.
Higher performance, unsurpassed utility and flexible I/O options, easy transportability and unparalleled value—you’ll find it all in the Alto Professional TS210 Powered Speaker.
- Features
Features
- 550W continuous, 1100W peak Class D power
- Bi-amplified design with precision active crossover and EQ
- 10-inch (254 mm) LF driver, 2-inch (50.8 mm) high-temperature voice coil
- 1-inch (25.4 mm) neodymium HF driver with precision waveguide
- Integrated 2-channel mixer with dual XLR 1/4-inch combo mic/line inputs and independent level controls
- Custom engineered high-efficiency class D amplifiers with passive cooling design – No fan means the speaker runs cleaner, quieter and has greater long-term reliability
- Ground-Lift switch
- Contour switch for increased EQ control
- Electronic clip, thermal and transducer overdrive protection
- Compact, lightweight, trapezoidal cabinet design for easy transport and installation
- Angled rear panel for wedge monitor applications
- Stand and pole-mountable with integral M10 suspension points
- XLR Link output
- Designed and tuned in the USA
- Specification
Output Power 1100W peak (700 LF + 400 HF) / 550W continuous (350 LF + 200 HF) Low Frequency 10" (254 mm) woofer, 2" (51 mm) voice coil High Frequency 1" (25 mm) neodymium driver with precision waveguide Crossover 2.5 kHz Maximum SPL 125 dB peak, 122 dB continuous (dB-SPL @ 1 m) Frequency Response 54 - 20 kHz (+/- 3 dB) Frequency Range 48 Hz - 22 kHz (-10 dB) Coverage 90° H x 60° V nominal Connectors XLR + ¼-inch combo jack mic/line inputs XLR Mix output Cabinet Trapezoidal, injection-molded, polypropylene enclosure with perforated steel grille Controls Volume, power on/off with LED, clip limiter with LED, ground lift Protection Electronic clip, thermal and transducer overdrive protection Power AC Input: 100-120/220-240 V, 50/60 Hz, Fuse: 100-120 V T6.3AL AC250V/220-240 V T3.15AL AC250V Dimensions (H x W x D) 20.8" (527 mm) x 12.8" (323 mm) x 12.0" (305 mm) Weight 22 lbs (10 kg) - Documents
