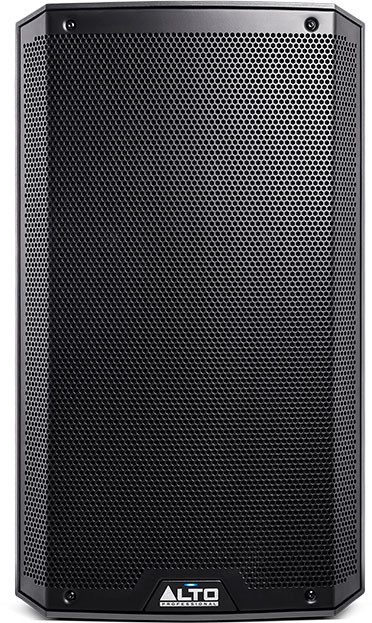

Alto TRUESONIC 2 TS212 1100W 12" Powered Loudspeaker (Discontinued)

Part #:
TS212 XUS
Model #:
TS212
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Alto Truesonic TS212 was designed with versatility and longevity in mind. This durable, lightweight enclosure is stand-mountable for weekend gigs and flyable for more permanent installations. Both the 12” low-frequency and 1” high-frequency drivers in the TS212 are designed to be super-efficient.

Description

The Truesonic TS212 is the result of a clean-sheet approach to designing professional speakers that strike an ideal balance between no-compromise acoustic performance, the complete array of features that users demand and outstanding ergonomics and utility—all coupled with a stunning new industrial design.

The amplifier is rated at 550 watts continuous, 1100 watts peak—a significant increase over the previous line. This higher power capability ensures greater output for use in larger spaces, with increased clarity, since the amplifiers won’t “run out of steam” and distort the way less powerful units will.

The industrial design is more than just beautiful: The TS212 has five integrated handles, making them easy to pick up in either H or V orientation. It also employs professional-grade M10 rigging/suspension points. The tough, durable cabinets have excellent acoustic properties, while their light weight makes them easy to transport.

Because of the cutting-edge, high-efficiency amplifiers, this speaker run at far lower temperatures than conventional amplifiers, even during extended periods of high output. The ground-up design effort for this speaker enabled us to incorporate advanced amplifiers with superior heat-dissipation characteristics, eliminating the need for costly, noisy cooling fans. The result is a powered speaker system that is cleaner, quieter and more reliable.

Higher performance, unsurpassed utility and flexible I/O options, easy transportability and unparalleled value—you’ll find it all in the Alto Professional TS212 Powered Speaker.

Features

  • 550W continuous, 1100W peak Class D power
  • 12-inch (304.8 mm) LF driver, 2.5-inch (63.5mm) high-temperature voice coil
  • 1-inch (25.4 mm) neodymium HF driver with precision waveguide
  • Bi-amplified design with precision active crossover and EQ
  • Integrated 2-channel mixer with dual XLR 1/4-inch combo mic/line inputs and independent level controls
  • Custom engineered high-efficiency class D amplifiers with passive cooling design – No fan means the speaker runs cleaner, quieter and has greater long-term reliability
  • Ground-Lift switch
  • Contour switch for increased EQ control
  • Electronic clip, thermal and transducer overdrive protection
  • Compact, lightweight, trapezoidal cabinet design for easy transport and installation
  • Angled rear panel for wedge monitor applications
  • Stand and pole-mountable with integral M10 suspension points
  • XLR Link output
  • Designed and tuned in the USA

Specifications

Output Power 1100 W peak (700 LF + 400 HF) 550 W continuous RMS (350 LF + 200 HF)
Low Frequency 12-inch (305 mm) woofer, 2-inch (51 mm) voice coil
High Frequency 1-inch (25 mm) neodymium driver with precision waveguide
Crossover 2 kHz
Maximum SPL 127 dB peak, 124 dB continuous (dB-SPL @ 1 m)
Frequency Response 53 Hz – 20 kHz (+/- 3 dB)
Frequency Range 46 Hz – 22 kHz (-10 dB)
Coverage 90° H x 60° V nominal
Connectors (2) XLR + ¼-inch combo jack mic/line inputs (1) XLR Mix Output
Cabinet Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
Controls Volume, power on/off with LED, clip limiter with LED, ground lift
Protection Electronic clip, thermal and transducer overdrive protection
Power AC Input: 100–120/220–240 V, 50/60 HzFuse: 100-120 V T6.3AL AC250V / 220-240 V T3.15AL AC250V
Dimensions (H x W x D) 23.28" (591 mm) x 14.04" (357 mm) x 13.80" (351 mm)
Weight 28.4 lbs (12.86 kg)
