Audix AP42 C2BP Dual Wireless Microphone System with R42 Diversity Receiver and H60/OM2 Transmitter with B60 Bodypack

By Audix Microphones

Audix AP42 C2BP Dual Wireless Microphone System with R42 Diversity Receiver and H60/OM2 Transmitter with B60 Bodypack

Name: Audix AP42 C2BP Dual Wireless Microphone System with R42 Diversity Receiver and H60/OM2 Transmitter with B60 Bodypack
Brand: Audix Microphones
SKU: AUDIX-AP42 C2BP-A
Price: 1240 USD
Availability: InStock

Write a Review

Part #:

AP42C2BPA

Model #:

AP42 C2BP

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Audix AP42 C2BP is a value-packed diversity system featuring R42 diversity receiver, H60/OM2 handheld microphone, and the versatile B60 bodypack transmitter.

Description

Audix AP42 C2BP Dual Wireless Microphone System
with R42 Receiver and H60/OM2 Handheld Transmitter with B60 Bodypack

This is a very efficient and cost-effective wireless microphone system with the flexibility of a handheld mic. The OM2 has a slight bass proximity, a tailored mid-range, and a full-bodied sound. Ideally optimized for small to mid-size PA systems, the OM2 is a workhorse microphone known for its excellent isolation on stage, outstanding feedback rejection, and ability to handle high sound pressure levels without distortion.

Features

R42 Two Channel Diversity Receiver:

32 MHz wide-spectrum tuning receiver

106 pre-coordinated frequencies

One-touch auto scan searches for clear channel

One-touch sync links transmitter to receiver via infrared beam

B60 Bodypack Transmitter:

64 MHz Wide spectrum transmitter

Durable metal housing

14 Hour run time - AA batteries

H60 OM2 Handheld Microphone:

64 MHz Wide spectrum transmitter with OM2 dynamic capsule

Durable metal housing

14 Hour run time - AA batteries

Specifications

R42 Receiver

Frequency Range Band A: 522 MHz – 554 MHz
Band B: 554 MHz - 586 MHz

Bandwidth 32 MHz

Compatible Systems 16 Compatible system operation

Switchable Frequencies 106 Preset frequencies

Frequency Response 45 Hz - 18 kHz

Compander System 2:1

Pilot Tone 32 kHz

Receiving System Single tuner, diversity

Signal-to-Noise Ratio 105 dB at 30 kHz deviation (A-weighted)

Total Harmonic Distortion ≤.7% (33 kHz deviation at 1 kHz)

Sensitivity 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)

Audio Output (AF=0) Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
1/4": -18 dBv @ 25 kHz deviation, 10 kohm load

Output Connectors 1/4", XLR

Audio Level Adjust Balanced: -12 to +9 dBu
Line: -24 to +4 dBu (adjustable in 3 dB-steps)

Range 300', (91 M)

Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A

Dimensions (44 mm) x (406 mm) x (209 mm)

Net Weight 4.4 lbs (2 kg)

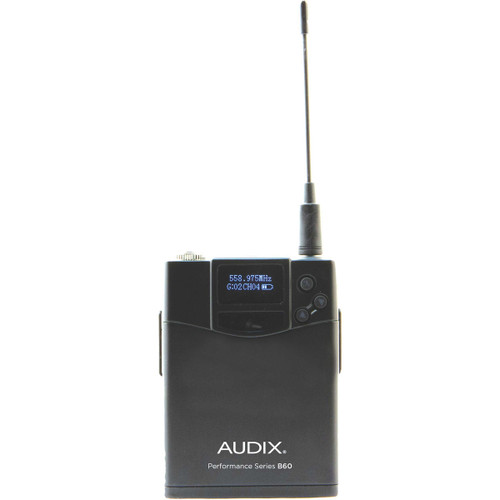

B60 Bodypack Transmitter

RF Power Output 10 mW, 40 mW

Frequency Bandwidth 64 MHz

Gain Controls 0 db, -6 dB, -12 dB

Input Connector 3 pin mini-XLR

Batteries Included 2 AA 1.5 V

Current Consumption 110 mA typical

Battery Life 14 hours

Input Impedance Mic: 10 kohm, Line: 1 Mohm

Max Sound Pressure Level 128 dB to140 dB (depending on mic)

Dimensions (H x W x D) 3.5" (90 mm) x 2.6" (67 mm) x 0.67" (17 mm)

H60 OM2 Handheld Transmitter

RF Power Output 10 mW, 40 mW

Frequency Bandwidth 64 MHz

Gain Controls 0 dB, -6 dB, -12 dB

Batteries Included 2 AA 1.5 V

Current Consumption 110 mA typical

Battery Life 14 hours

Max Sound Pressure Level >140 dB (depending on capsule)

Dimensions (L x Dia) 10.43" (265 mm) x 2.1" (53 mm)

Net Weight 11.0 oz / 312 g (without battery)

DOCUMENTS

Related Products

Audix ADS48 Antenna Distribution System for AP42/AP62 Two-Channel Microphone Systems

Model #:

Audix ADS48 Antenna Distribution Systemfor AP42/AP62 Two-Channel Microphone Systems The Audix ADS48 is a wide range UHF antenna distribution system that combines up to four wireless systems to be...

MSRP:

Was

Now: (Inc. Tax)

MSRP: $839.00

Was

Now: $699.00

Usually arrives in 5-9 business days.

MSRP:

Was

Now: (Inc. Tax)

MSRP: $839.00

Was

Now: $699.00

Add to Cart The item has been added

Audix ADX10 Miniaturized Lavalier Condenser Microphone

Model #:

Audix ADX10 Miniaturized Lavalier Condenser Vocal Microphone The ADX10 is a miniaturized condenser microphone designed for lavalier applications such as speech, presentation, and theatrical...

MSRP:

Was

Now: (Inc. Tax)

MSRP: $239.00

Was

Now: $199.00

Usually arrives in 5-9 business days.

MSRP:

Was

Now: (Inc. Tax)

MSRP: $239.00

Was

Now: $199.00

Add to Cart The item has been added

Audix AP42 BP Wireless Microphone System with R42 2-Channel Diversity Receiver and 2 B60 Bodypack Transmitters

Model #:

Audix AP42 BP Wireless Microphone System (522 MHz - 554 MHz / 544 MHz - 586 MHz) A value-packed diversity system featuring the versatile B60 bodypack transmitter. This bodypack may be used with any...

MSRP:

Was

Now: (Inc. Tax)

MSRP: $1,488.00

Was

Now: $1,240.00

Usually arrives in 5-9 business days.

MSRP:

Was

Now: (Inc. Tax)

MSRP: $1,488.00

Was

Now: $1,240.00

Choose Options

Audix AP42 OM5 Dual Channel Wireless Microphone System with R42 True Diversity Receiver and 2 H60/OM5 Handheld Transmitters

Model #:

Audix AP42 OM5 Dual Channel Wireless Handheld Microphone System A high-performance handheld diversity wireless system featuring the legendary Audix OM5. Since the mid-90s, the OM5 has become one of...

MSRP:

Was

Now: (Inc. Tax)

MSRP: $1,686.00

Was

Now: $1,405.00

Usually arrives in 5-9 business days.

MSRP:

Was

Now: (Inc. Tax)

MSRP: $1,686.00

Was

Now: $1,405.00

Choose Options

Audix AP42 C210 Performance Series Dual-Channel Combo Handheld and Lavalier Wireless System

Model #:

Audix AP42 C210 Dual-Channel Handheld and Lavalier Wireless System The Audix AP42 C210 is a dual-channel wireless system combining the OM2 handheld transmitter with the ADX10 cardioid lavalier system...

MSRP:

Was

Now: (Inc. Tax)

MSRP: $1,650.00

Was

Now: $1,375.00

Usually arrives in 5-9 business days.

MSRP:

Was

Now: (Inc. Tax)

MSRP: $1,650.00

Was

Now: $1,375.00

Choose Options

Audix AP42 OM2 Dual Channel Wireless Microphone System with R42 True Diversity Receiver and 2 H60/OM2 Handheld Transmitters

Model #:

Audix AP42 OM2 Dual Channel Wireless Handheld Microphone System A professional true diversity handheld wireless system featuring the Audix OM2. The OM2, is a best-selling vocal microphone, has a...

MSRP:

Was

Now: (Inc. Tax)

MSRP: $1,488.00

Was

Now: $1,240.00

Usually arrives in 5-9 business days.

MSRP:

Was

Now: (Inc. Tax)

MSRP: $1,488.00

Was

Now: $1,240.00

Choose Options

Audix AP42 VX5 Wireless Microphone System with R42 2-Channel Diversity Receiver and 2 H60/VX5 Handheld Transmitters

Model #:

Audix AP42 VX5 Wireless Microphone System (522 MHz - 554 MHz / 554 MHz - 586 MHz) A highly detailed handheld diversity wireless system featuring the Audix VX5. The VX5 is a multi-purpose,...

MSRP:

Was

Now: (Inc. Tax)

MSRP: $1,914.00

Was

Now: $1,595.00

Usually arrives in 5-9 business days.

MSRP:

Was

Now: (Inc. Tax)

MSRP: $1,914.00

Was

Now: $1,595.00

Choose Options

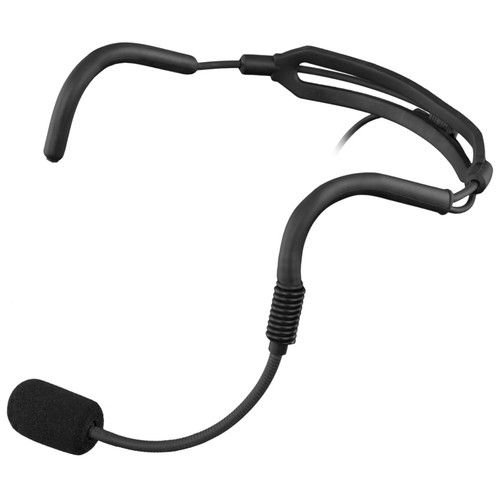

Audix HT2 Heavy-Duty Headworn Vocal Microphone for Live Sound

Model #:

Audix HT2 Heavy-Duty Headworn Vocal Microphone for Live Sound The HT2 is a professional pre-polarized headset condenser microphone for the stage, presentation, and broadcast. The HT2 is known for...

MSRP:

Was

Now: (Inc. Tax)

MSRP: $275.00

Was

Now: $229.00

Usually arrives in 5-9 business days.

MSRP:

Was

Now: (Inc. Tax)

MSRP: $275.00

Was

Now: $229.00

Add to Cart The item has been added

Audix HT5 Lightweight Dual Ear Wireless Headworn Omnidirectional Microphone - Black

Model #:

Audix HT5 Lightweight Dual Ear Wireless Headworn Omnidirectional Condenser Microphone The HT5 is a professional pre-polarized headworn condenser microphone designed for stage, presentation and...

MSRP:

Was

Now: (Inc. Tax)

MSRP: $420.00

Was

Now: $350.00

Usually arrives in 5-9 business days.

MSRP:

Was

Now: (Inc. Tax)

MSRP: $420.00

Was

Now: $350.00

Add to Cart The item has been added

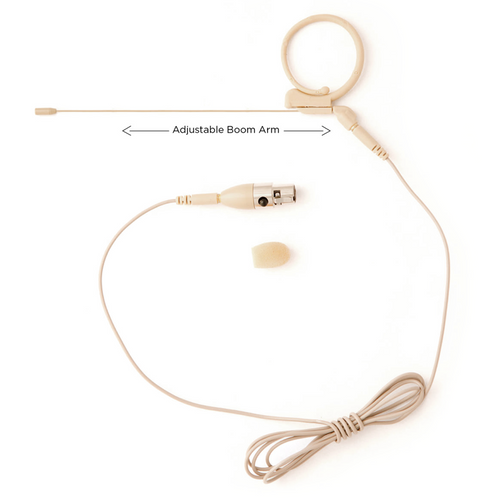

Audix HT7BG3P Omnidirectional Headset Mic with TA3F Connector - Beige
