- Description
Details

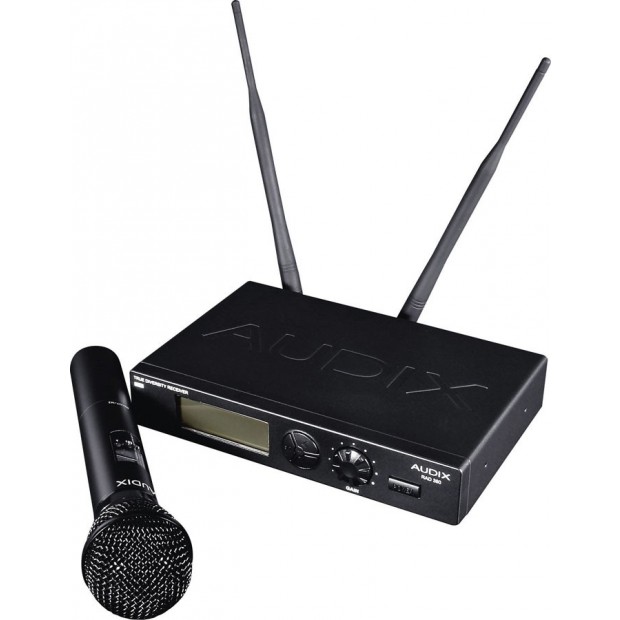

The Audix W3OM3 RAD-360 Handheld Wireless Microphone System is a frequency agile UHF wireless microphone system with 193 selectable frequencies (per system group) and dual tuner, true diversity receivers. Operating in the UHF band between 614-638 MHz and 638-662 MHz in the USA, the RAD360 is designed for a wide range of professional applications including live performances, fixed installations, corporate meetings and Houses of Worship.

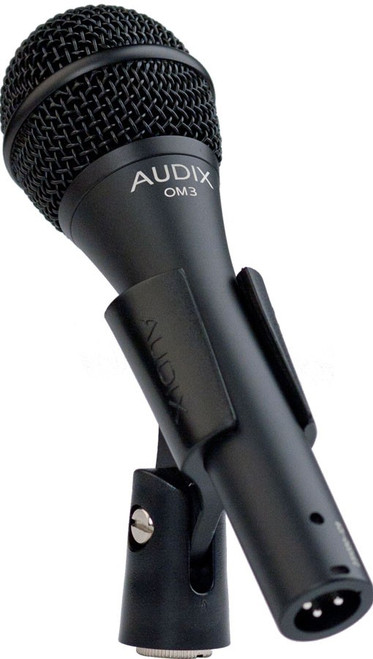

The handheld transmitter utilizes aconvenient gain setting control to help prevent overload or distortion. The modular design of the threaded microphone head enables the user to change the transmitter mic capsule from one OM Series model to another in a matter of seconds.
The W3OM3 Wireless System is excellent for general musical performances, presentations, and House of Worship. Clear, natural, accurate sound emanates from through the W3OM3.
- Features
Features
- Frequency Agile
- Soft-key Controls
- Backlit LCD Menu Driven Displays
- Noise Squelch Circuitry Analyzes signal quality
- Surface Acoustic Wave (S.A.W.) Filters RF resistance
- Tone Key Squelch Eliminates unwanted noise
- Tuned Antennas
- Audio Output
- RF Level Meters
- Audio Meters
- Battery Power Indicators
- Easy to use Set and Lock Function
- Sensitivity Adjustment
- Interchangeable Head Assemblies
- Durable Metal Housings
- Clear, accurate vocal reproduction
- Handles high SPL without distortion
- Low handling noise
- Provides exceptional gain before feedback
- Provides excellent vocal isolation on stage
- Dent resistant steel spring grill
- Specification
Frequency Range 614 MHz–662 MHz Switchable Frequencies 193 (per system group of 24 MHz spaced 125 kHz apart) Freq Response 40 Hz–18 kHz (depending on capsule) Signal To Noise Ratio >110 dB Compander System HDX Pilot Tone 32.768 kHz OM3 Handheld Transmitter Transducer Type Dynamic Frequency Response 50 Hz - 18 kHz Polar Pattern Hypercardioid Output Impedance 250 ohms Sensitivity 1.7 mV / Pa @ 1k Capsule Technology VLM Type B Off Axis Rejection > 25 dB Maximum SPL ≥144 dB Connector Switchcraft maleXLR connector Housing / Finish Zinc Alloy /Black E-coat Length 6.9" (176 mm) Weight 0.68 lbs (307 g) - System Includes
System Includes
- RAD-360 System
- OM3 Dynamic Handheld Transmitter
