Inside the Design
This Bose 4-zone restaurant sound system is built for large restaurants, bars, and hospitality venues that need reliable, evenly balanced sound across multiple areas. Six Bose Professional DesignMax Luna DML88P pendant speakers cover the main dining areas and the bar, delivering full, consistent performance. The included black restaurant pendant speakers are ideal for modern open ceilings, but white versions are also available for lighter interiors. Bose Professional DM3C 3.25" ceiling speakers deliver clean sound in restroom areas, while the DM5SE 5.25" and DM3SE 3.25" indoor/outdoor wall-mounted restaurant speakers extend audio to hallways, entryways, and patios.
This multi-zone sound system is powered by two AtlasIED CLA802 800-watt 2-channel power amplifiers for strong, flexible output. The AtlasIED Atmosphere AZM4 4-zone audio processor adds advanced DSP, WiFi control, routing, EQ, and preset management. The C-T4 wall control panel provides staff-friendly adjustments, while the C-V in-wall volume controls allow quick access in each zone. A Sonos Port wireless streaming receiver adds simple, dependable WiFi streaming for playlists and ambient music. With an A-XLR audio input for DJs or hosted events, this four-zone restaurant sound system offers premium performance, long-term reliability, and easy daily use.
Sound System Features:
- Multi-zone sound system for balanced audio in restaurants and hospitality venues
- Bose Professional DesignMax speakers deliver rich, even coverage across dining rooms, bars, entryways, patios, hallways, and restrooms
- Dual AtlasIED CLA802 power amplifiers supply efficient, powerful output for all zones
- AtlasIED Atmosphere AZM4 4-zone audio processor offers advanced DSP, WiFi control, routing, and presets
- The touchscreen audio wall controller provides simple daily control for staff
- Sonos Port enables easy WiFi music streaming and app-based control
- Remote XLR input wall plate supports DJs, performers, and live event sources
- Wall-mount volume controls allow quick zone-specific level adjustments
About the System Components
Bose Professional DesignMax Luna DML88P PENDANT LOUDSPEAKERS
The Bose Professional DesignMax Luna DML88P is a premium 70V and 100V pendant speaker that provides full, balanced sound for dining rooms and bar areas. Its integrated amplification and tuning deliver wide, evenly distributed coverage ideal for open ceiling environments. Black models are included for this system, with white versions available for alternate design needs.

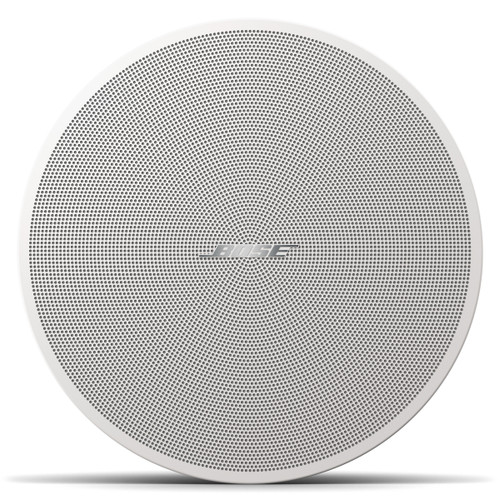

Bose Professional DesignMax DM3C 3.25" CEILING SPEAKERS
The Bose DesignMax DM3C is a 3.25-inch 30-watt ceiling speaker that delivers rich, full-range sound for restrooms and auxiliary areas. Its low-profile form blends neatly into ceilings, and the included tile bridge and mounting hardware allow fast, secure installation.

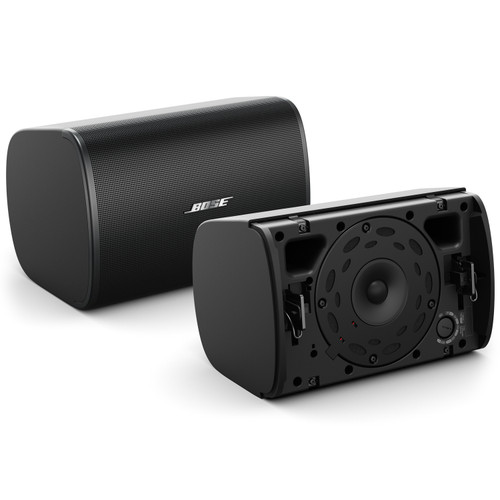

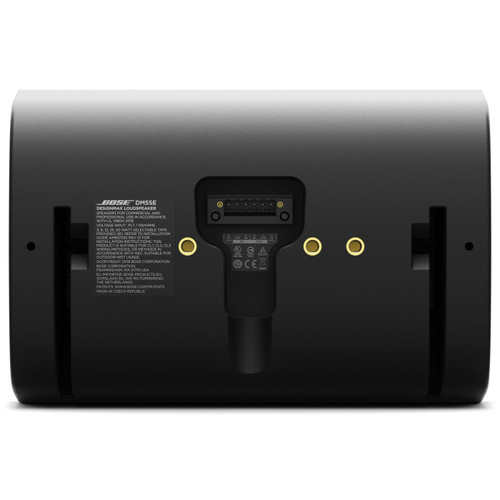

Bose Professional DesignMax DM5SE 5.25" INDOOR OUTDOOR SURFACE MOUNT SPEAKERS
The Bose DM5SE is a 5.25-inch indoor outdoor surface-mount speaker designed for patios, entrances, and semi-exterior zones. With an IP55 weather rating and wide coverage pattern, it delivers strong clarity and output while matching the tonal quality of the Luna and DM3C speakers.
Bose Professional DesignMax DM3SE 3.25" INDOOR OUTDOOR SURFACE MOUNT SPEAKERS
The Bose DesignMax DM3SE is a compact 3.25-inch surface-mount speaker that provides clear, natural audio for hallways, entryways, and patios. Its IP55 weather rating and clean QuickHold mounting design make it ideal for outdoor or transitional areas where durability and aesthetics are important.

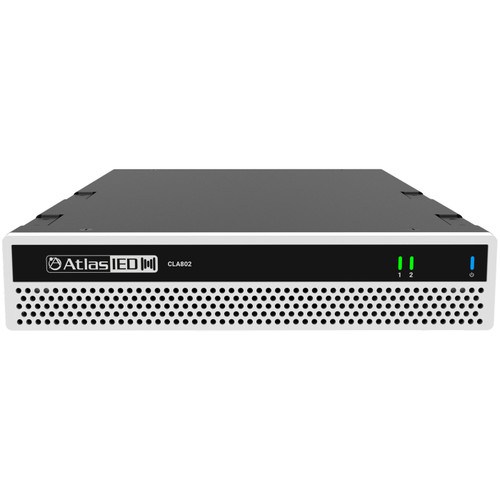

AtlasIED CLA802 800W 2 CHANNEL MULTI IMPEDANCE POWER AMPLIFIER
The AtlasIED CLA802 is an 800-watt 2-channel power amplifier engineered for multi-zone commercial audio environments. Power Share technology allows flexible power allocation across zones regardless of impedance, ensuring stable, high-performance output. Rear panel configuration switches make setup fast and reliable.

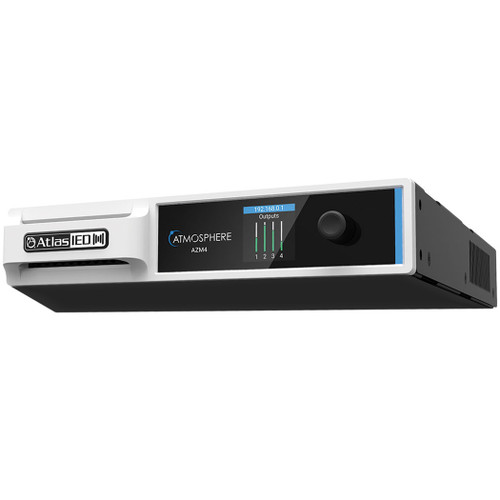

AtlasIED Atmosphere AZM4 4 ZONE AUDIO PROCESSOR
The AtlasIED Atmosphere AZM4 is a powerful digital signal processor that manages routing, EQ, automation, scheduling, and noise sensing for four-zone restaurant audio systems. It supports Ethernet and WiFi control and serves as the central hub for all sources and tuning.

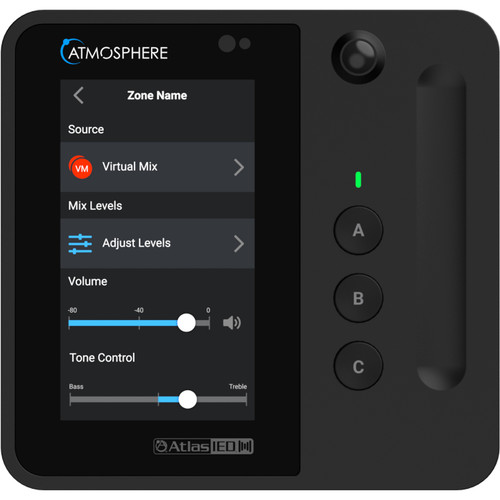

AtlasIED C-T4-B TOUCHSCREEN WALL CONTROLLER
The AtlasIED C-T4-B is a 4.3-inch touchscreen controller that provides simple, intuitive access to zone volumes, source selection, and system actions. Its modern interface and fast response make it ideal for daily staff use in restaurants and hospitality environments.

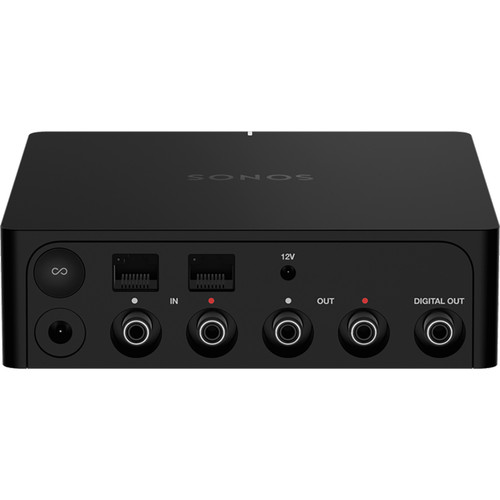

Sonos Port WIRELESS STREAMING RECEIVER
The Sonos Port enables easy WiFi music streaming and can be controlled through the Sonos app or Apple AirPlay 2. It supports multiple streaming services and provides dependable, high-quality music playback across all zones.

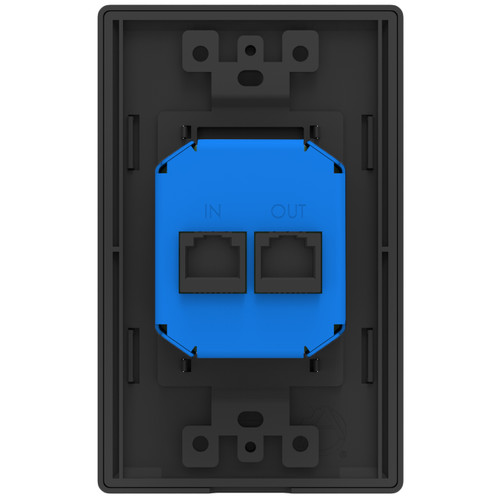

AtlasIED A XLR B REMOTE XLR AUDIO INPUT
The AtlasIED A XLR B is a remote XLR input plate for connecting microphones, DJ mixers, or event audio sources directly into the sound system. The AZM4 automatically applies EQ, gain control, and processing for professional, consistent audio.

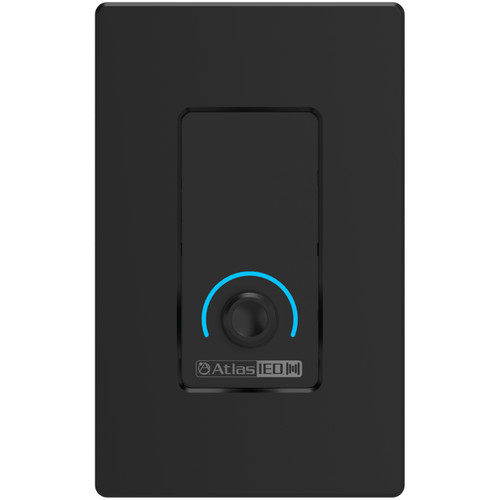

AtlasIED C-V-B VOLUME CONTROLLERS
The AtlasIED C-V-B in-wall volume controllers provide precise local volume adjustment for individual zones. Staff can adjust audio levels quickly without changing overall system settings. Their clean design and long-distance wiring support make them ideal for multi-zone restaurant installations.
