Inside the Design
This multi-zone restaurant sound system is engineered for upscale dining spaces, fine dining, and banquets that require refined audio quality and flexible zone control. This system includes twelve Bose Professional DesignMax DM5C 5.25" ceiling speakers and four DM3C 3.25" ceiling speakers to provide smooth, consistent coverage across dining rooms, bar areas, private dining spaces, and restrooms. For outdoor audio, two Bose Professional FreeSpace 360P II in-ground landscape speakers deliver immersive 360-degree sound for patios, entry areas, and exterior seating. At the core of this 4-zone restaurant sound system, the AZMP4 4-zone audio processor with built-in 600-watt amplifier from the AtlasIED Atmosphere lineup manages routing, EQ, DSP functions, and automation through simple web-based access. Two Sonos Port WiFi streaming hubs supply independent playlists for different areas of the restaurant, giving staff complete control over music content. Daily operation is streamlined through the AtlasIED C-T4 audio wall controller, an A-XLR audio input, and three C-V in-wall volume controls, creating a complete solution that blends performance, convenience, and event-ready functionality for premium restaurant environments.
Sound System Features:
- Bose 4-zone restaurant sound system with flexible control and consistent coverage for upscale and fine dining spaces
- Bose Professional DesignMax ceiling speakers for clean, detailed indoor audio, and FreeSpace in-ground landscape speakers for outdoor coverage
- Audio processor delivers powerful multi zone management with built in amplification, DSP, and WiFi control for seamless operation
- Wall control panel with touchscreen for fast and simple zone adjustments
- Sonos Port wireless streaming receiver for easy app-based music control
- XLR input wall plate for banquet events, DJs, and live sources
- Wall-mount volume controls for quick zone-specific audio level adjustments
About the System Components
Bose Professional DesignMax DM5C 5.25" Ceiling Speakers
The Bose Professional DesignMax DM5C is a premium 5.25 inch 60 watt ceiling speaker designed to deliver rich, detailed audio with wide coverage. Ideal for dining rooms, bars, and private spaces, the DM5C blends clean aesthetics with impressive output. These Bose restaurant ceiling speakers include integrated SafetyShield mounting hardware and SmartBass processing for improved low end performance. Within a multi zone restaurant sound system, the DesignMax DM5C provides clear, balanced sound that enhances the guest experience in upscale environments.

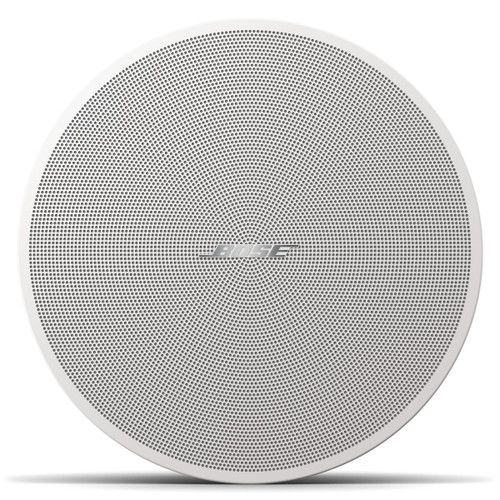

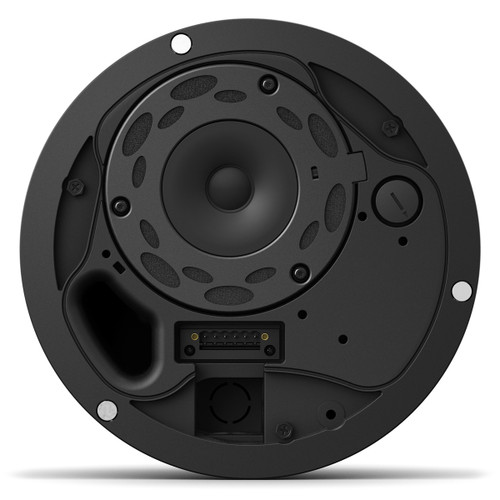

Bose Professional DesignMax DM3C 3.25" Ceiling Speakers
The Bose Professional DesignMax DM3C is a compact 3.25 inch 30 watt ceiling speaker that provides smooth background audio for restaurant restrooms, hallways, entry areas, and lower ceiling spaces. Despite its small size, the DM3C delivers full range clarity. The QuickHold mounting system allows efficient installation, and the sleek white finish blends seamlessly with upscale interiors. These restaurant ceiling speakers are perfect for areas that require lower levels of ambient audio without sacrificing Bose signature quality.
Bose Professional FreeSpace 360P Series II In Ground Landscape Speakers
The Bose Professional FreeSpace 360P Series II is a 360 degree outdoor in ground speaker with a 4.5 inch weatherproof full range driver that provides uniform coverage across patios, entry points, and landscaped areas. Designed for long term durability, the FreeSpace 360P outdoor landscape speaker provides clear and immersive sound. Its omnidirectional dispersion maintains even audio coverage throughout outdoor seating areas, making it a popular choice for restaurant patios where guests gather and move through the space.
AtlasIED Atmosphere AZMP4 4 Zone Audio Processor with 600W Amp, WiFi, and DSP
The AtlasIED Atmosphere AZMP4 is a 4 zone audio processor with a built in 600 watt amplifier that serves as the central engine of this multi zone restaurant sound system. It provides powerful DSP, source routing, EQ, and automatic processing to ensure consistent high quality audio throughout dining rooms, bar areas, private event spaces, and outdoor zones. With intuitive web based control and seamless integration with Atmosphere accessories including the C T4 touchscreen controller, C V volume controls, and A XLR remote audio input, the AZMP4 allows staff to manage music, events, and zone levels effortlessly. Designed for commercial environments, the AZMP4 delivers reliable performance, flexible configuration, and the clean balanced sound required for upscale restaurant operations.
AtlasIED C T4 B Atmosphere Wall Controller
The AtlasIED C T4 B is a 4.3 inch touchscreen wall control panel designed for fast and intuitive system operation. Staff can adjust zone volumes, select sources, and trigger system actions from a simple interface. The capacitive slider and customizable buttons make control effortless, while built in motion detection supports occupancy based automation. This digital audio wall controller integrates directly with the AZMP4 using CAT5e and is ideal for restaurants that need reliable hands on control throughout the day.

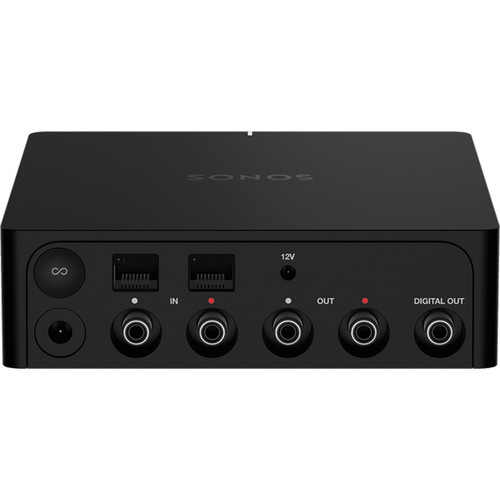

Sonos Port WiFi Enabled Wireless Music Streaming Hub
The Sonos Port provides wireless audio streaming using the Sonos app or Apple AirPlay 2. With dual ports included in this 4 zone restaurant sound system, staff can run independent playlists in separate zones for dining, bar, or private event spaces. The Sonos Port wireless streaming receiver integrates cleanly with the Atmosphere processor, making it simple to deliver curated music content across multiple zones in a restaurant environment. Ideal for operators who want app based control and flexible streaming options.
AtlasIED A-XLR-B Atmosphere Remote XLR Audio Input
The AtlasIED A-XLR-B is a remote XLR input wall plate that allows DJs, musicians, and presenters to connect microphones or audio feeds directly into the system without accessing the equipment rack. The AZMP4 automatically applies EQ, compression, phantom power, and auto gain control when this XLR audio input is detected. This makes it ideal for banquet rooms, private dining events, or live entertainment zones that require professional audio connectivity.
AtlasIED C-V-B Atmosphere Volume Controllers
The AtlasIED C-V-B in wall volume control provides precise local volume adjustment, muting, and level metering for individual zones. Restaurant staff can quickly change audio levels without affecting other parts of the venue, ensuring comfortable sound in every area. These wall mount volume controls integrate seamlessly with the Atmosphere ecosystem and support long distance runs up to 1000 feet. Their clean design and reliable performance make them perfect for multi zone restaurant sound system installations.
