Quam Speakers
-
Quam ERD8U Steel Loudspeaker Back Box
The Quam ERD-8x series is a round, steel loudspeaker back box. The finish is a white baked epoxy hybrid. The back box is intended for indoor and sheltered outdoor applications.
-
Quam QC10 Attenuator Volume Control Single-Gang 10-Step UL Listed 20 Watt
The Quam QC10 Attenuator Series is a single gang, continuous rotary, ten-step audio level attenuator with an OFF position. The finishes vary with the model. Refer to the technical specification. The knobs are black with white indicators.
-
Quam UL-6 General Signaling UL Listed Speaker
The Quam UL-6 is a UL Listed (1480) loudspeaker assembly, transformer, and back box used as a general (non-fire alarm) signaling device. Finish: White baked epoxy hybrid. -
Quam SYSTEM-3/VC Surface Mounted Speaker System
The Quam SYSTEM 3/VC is a complete loudspeaker assembly in a 22 gauge slanted steel enclosure with 8" frame loudspeaker, 25/70.7V universal transformer and volume control. It has a white baked epoxy hybrid enclosure and perforated steel grille.
-
Quam SYSTEM 16/8 Lay In Tile Loudspeaker
The Quam SYSTEM 16 is a complete, extended frequency response loudspeaker assembly, with 8" frame loudspeaker, 10W extended response transformer with 5-taps, "micro-perf" steel baffle, integrated back box and trim rail on 23-3/4" side. -
Quam SYSTEM-5 Lay In Tile Loudspeaker
The Quam SYSTEM 5 is a complete loudspeaker assembly, with 8" frame, perforated steel baffle and integral back box in a 12" x 24" format. Transformer options include a 25/70.7V pigtail; 25V/70.7V pigtail with Volume Control; 25V Rotary Select.
-
Quam SYSTEM-1 Surface Mounted Speaker System
The Quam SYSTEM 1 is a complete loudspeaker assembly with 8" frame loudspeaker, 25 and 70.7V universal transformer, 16 gauge square steel enclosure and 22 gauge baffle. The assembly finish is a white baked epoxy hybrid.
-

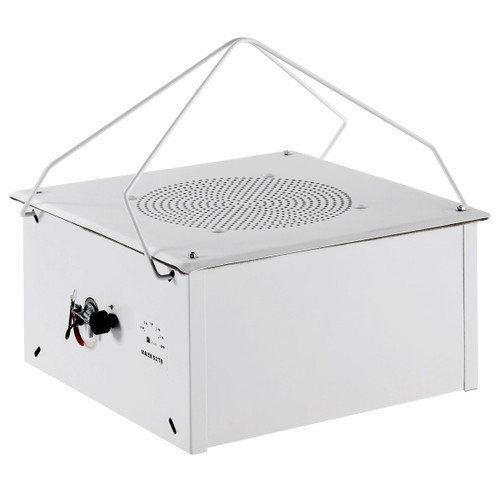

Quam MA/E8/S2/T8 Sound Masking Loudspeaker
The Quam MA/E8/S2/T8 is a 690 CID sound masking loudspeaker assembly consisting of an 8C10PAX - 8" O.D. dual cone loudspeaker with a 10 oz. magnet, and a 4W-70V rotary select transformer.
-

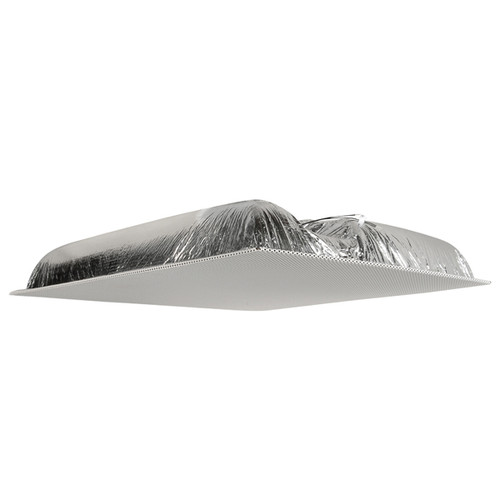

Quam SYSTEM 12/8 Lay In Ceiling Mount Loudspeaker
The Quam SYSTEM 12/8 is a complete loudspeaker assembly, with 8" frame, perforated steel baffle and integral back box; 24" x 24" format. Transformer options include a 25/70.7V pigtail; 25/70.7V pigtail with Volume Control; 25V Rotary Select.
-
Quam MA/E9/S2/T8 Sound Masking Loudspeaker
The MA/E9/S2/T8 is a 617 CID, ceiling grid mount, sound masking loudspeaker assembly consisting of an 8C10PAX - 8" O.D. dual cone loudspeaker with a 10 oz. magnet and a TBL70 - 4W-70V rotary select transformer. Support chain is supplied.
-
Quam SYSTEM-5/VC Lay In Tile Loudspeaker With Volume Control
The Quam SYSTEM 5 is a complete loudspeaker assembly, with 8" frame, perforated steel baffle and integral back box in a 12" x 24" format. Transformer options include a 25/70.7V pigtail; 25V/70.7V pigtail with Volume Control; 25V Rotary Select.
-
Quam QH16T Paging Horn
The Quam QH16T is a weatherproof loudspeaker assembly with double re-entrant horn, compression type driver, 25V and 70.7V universal transformer and adjustable, universal mounting flange. The assembly finish is tan enamel. -
Quam SYSTEM 12/VC Lay In Ceiling Mount Loudspeaker With Volume Control
The Quam SYSTEM12/VC is a complete loudspeaker assembly, with 8" frame, perforated steel baffle and integral back box; 24" x 24" format. Transformer options include a 25/70.7V pigtail; 25/70.7V pigtail with Volume Control; 25V Rotary Select.
-
Quam SYSTEM 15 Lay In Tile Loudspeaker
The Quam SYSTEM 15 is a complete loudspeaker assembly, with 8" frame, wide frequency response, coaxial loudspeaker, 70.7V transformer, perforated steel baffle and integral back box; 24" x 24" format.
-
Quam SYSTEM-19/8 Lay In-Ceiling Mount Loudspeaker
The Quam SYSTEM 19/8 is a complete, UL Listed, 2-way, shallow depth, lightweight, 2' x 2' ceiling tile replacement loudspeaker system consisting of an 6-1/2" O.D. LF woofer, 1" tweeter, and an 8 Ohm impedance.
-

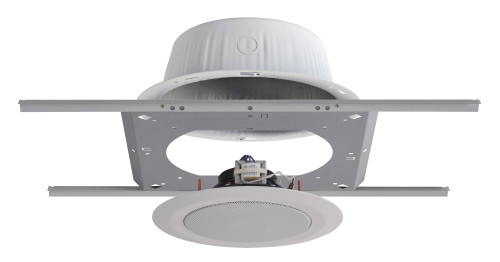

Quam Solution 3 Installer Package Speaker System
The Quam Solution 3 is a complete speaker/transformer/designer baffle solution for ceiling installations. The 8C10FEPAX has 8 Ω O.D. foam edge surround and features a dual cone loudspeaker.
-
Quam System 19 Lay-In Ceiling Tile Speaker
The System 19 is a complete, UL Listed, 2-way, shallow depth, lightweight, 2' x 2' ceiling tile replacement loudspeaker system consisting of an 6.50" O.D. LF woofer, 1" tweeter, and a 20 W-70 V rotary select transformer including an 8 Ohm tap.
-
Office Sound Masking System with Quam Sound Masking Speakers, Pink Noise Masking Generator and Volume Controls up to 1800SF (Discontinued Components)
This Quam office privacy sound masking system effectively raises the ambient noise level of your environment making speech noise less intelligible and therefore less distracting. The sound masking generator with 25-watt amplifier produces analog pink noise and allows you to add paging and background music to your speech privacy system. -
Quam SYSTEM-30 Wall Mount Paging Loudspeaker
The Quam SYSTEM 30 is a complete, bi-directional, surface mounted, loudspeaker assembly with one 4” frame loudspeaker, 25/70.7V transformer and CRS enclosure and mount pedestal. The enclosure finish is a white baked epoxy hybrid.
-
Quam UL22/70/DM 2' x 2' UL Listed Fire Signaling Speaker with Mounts for Strobes, Smoke Detectors, Indicator Lights, and Cameras
The Quam UL22/70/DM is a complete 2' x 2' UL listed fire signaling device providing superior voice intelligibility performance, shallow depth, lightweight, fire-protective signaling device with built-in device mount to accommodate 3rd party strobes, smoke detectors, indicator lights and cameras.
-

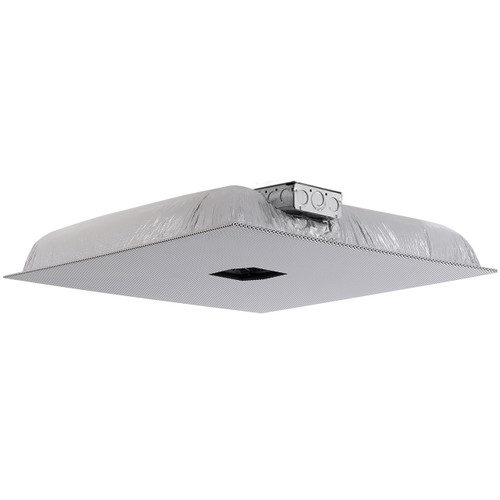

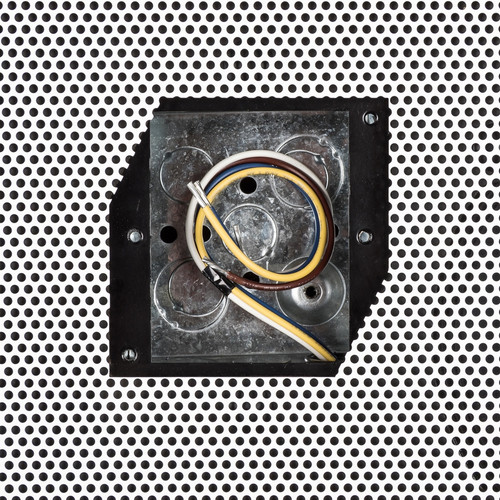

Quam UL22DM 2' x 2' UL Listed Fire Signaling Speaker with Mounts for Strobes, Smoke Detectors, Indicator Lights, and Cameras
The Quam UL22DM is a shallow depth, UL listed, fire signaling device for mass notification and emergency communications. It provides superior voice intelligibility and high efficiency performance in a complete, 2′ x 2′ lay-in ceiling tile replacement loudspeaker system.
-
White Noise Sound Masking System with Quam Pendant Mound Speakers and Masking Noise Generator for up to 2500SF
This cost-effective speech privacy system with 10 Quam sound masking speakers comes with a powerful yet compact 40W generator, mixer and amplifier in one meeting the requirements of any office space or commercial environment with plenum ceilings up to 2,500 sq ft.
-
Quam MA/E14/S6/T8 Sound Masking Loudspeaker
The MA/E14/S6/T8 is a compact, bi-directional sound masking loudspeaker assembly consisting of dual 4" O.D. loudspeakers designed for quick and easy installation under raised access floors and above suspended ceilings
-
Quam MA/E6/S2/T8 Sound Masking Loudspeaker
The MA/E6/S2/T8 is a 690 CID sound masking loudspeaker assembly consisting of an 8C10PAX - 8" O.D. dual cone loudspeaker with a 10 oz. magnet, 4W-70V rotary select transformer, and a bi-metal composite 'QuietSteel' enclosure.
