- Description
Details

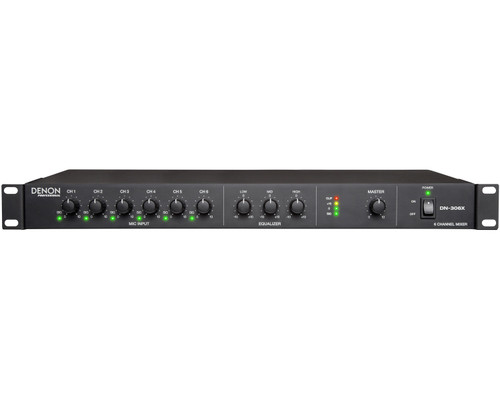

The DN-306X is a compact 6-channel mixer. It features combo XLR/TRS input jacks with switchable MIC, LINE, and phantom power along with two XLR line outputs. Added features include mic one priority and a 3-band equalizer on the output. The DN-306X is compact, versatile and ready to solve any number of audio installation challenges.
- Features
Features
- Six-channel mixer in one rack space
- XLR/TRS combo input jacks with phantom power
- Two XLR line outputs
- Master level control and 3-band equalizer
- Mic one priority control
- Specification
Signal-to-Noise Ratio > 94dB Max Output Level +24dBu Inputs (6) combo XLR/TRS Phantom Power 48VDC Maximum Voltage Gain 60dB Max Input Level -20dBu Sensitivity -40dBu Impedance 1.4kΩ Max Input Level +24dBu Impedance 10kΩ Equalizer High: ± 15dB @ 12kHz
Mid: ± 12dB @ 2.5kHz
Low: ± 15dB @ 80HzEnvironmental Operating Temperature: 40 - 140°F (5 - 60°C)
Operating Humidity: 25 ~ 85% (non-condensing)Power Requirement 100 ~ 240VAC 50/60Hz Power Consumption < 5W Dimensions (H x W x D) 1.7" (44 mm) x 19" (483 mm) x 7.7" (195 mm) Weight 5.6 lbs (2.5 kg) - Documents
