The Electro-Voice EVID-EC8.2 is a pair of white 8" ceiling speakers that deliver premium sound quality with a sleek, low-profile design, front tap adjustment, and UL certification, perfect for professional commercial installations.

Description

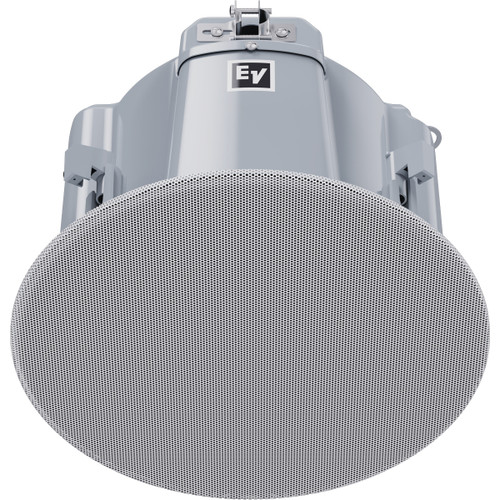

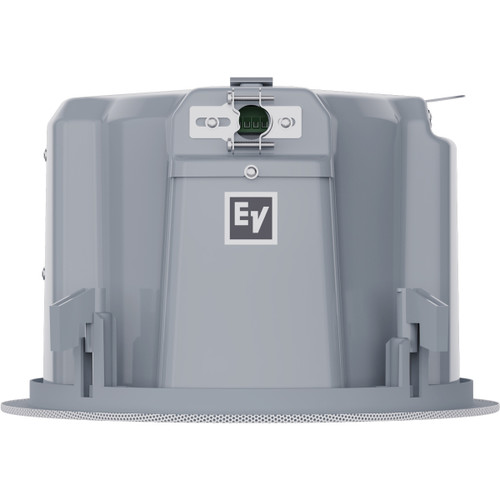

Electro-Voice EVID-EC8.2 8-Inch White Coaxial In-Ceiling Speakers

The EVID-EC8.2 8-inch coaxial ceiling speaker in white pair combines exceptional performance, reliability, and refined aesthetics for professional audio environments. Featuring a high-efficiency 8" coaxial two-way design, these speakers provide clear, natural sound reproduction across a wide 75 Hz - 20 kHz frequency range with a 90° conical coverage. The result is even sound distribution, ideal for offices, retail spaces, restaurants, and hospitality venues.

Designed for seamless installation and long-term durability, the EVID-EC8.2 features a bezel-less magnetic grille, front baffle wattage tap adjustment, and includes both a C-ring and tile bridge for secure ceiling mounting. The semi-gloss white powder-coated finish (RAL 9003) blends beautifully into modern interiors. Its heavy-gauge steel enclosure, UL 94V-0 ABS baffle, and IP34 indoor rating ensure dependable performance even in demanding commercial environments.

The EVID-EC8.2 supports both 70V/100V distributed audio and 8-ohm low-impedance configurations, providing flexibility for any installation. With power handling up to 70W continuous (280W peak), a sensitivity of 92 dB, and selectable transformer taps from 1.88W to 30W, this speaker pair delivers high-output, low-distortion sound with exceptional clarity and efficiency. Certified to UL 1480A, UL 2043, CSA C22.2 No. 205, and IEC 62368-1, it meets the highest standards for safety and performance.

Features

  • Pair of 8-inch coaxial two-way ceiling speakers for commercial installations
  • Exceptional full-range performance with 75 Hz - 20 kHz frequency response
  • 90° conical coverage ensures even sound dispersion across wide areas
  • High-efficiency 8" woofer and 1" HF driver deliver balanced, dynamic audio
  • Bezel-less magnetic grille design for a clean, modern appearance
  • Front-access wattage tap switch simplifies setup and adjustment
  • 70V/100V transformer taps and 8-ohm bypass for versatile system design
  • Heavy-duty steel backcan with UL 94V-0 ABS baffle for long-term reliability
  • Includes tile bridge and C-ring for secure, fast installation
  • UL 1480A, UL 2043, CSA, and IEC 62368-1 certified for safety and compliance
  • IP34 rated for indoor use with an operating range from 0°C to 50°C (32°F-122°F)

Specifications

Frequency Range (-10 dB) 75 Hz - 20,000 Hz
Maximum Continuous SPL 110 dB
Maximum Peak SPL 116 dB
Sensitivity 92 dB SPL 1 W, 1 m
Coverage Angle Conical 90°
Power Handling Continuous: 70W
Peak: 280W
Long-Term Power Handling Continuous: 50W
Peak: 200W
Nominal Impedance 8Ω
Recommended High Pass 70 Hz
Transformer Taps 70V: 30W, 15W, 7.5W, 3.75W, 1.88W
100V: 30W, 15W, 7.5W, 3.75W
LF Driver 8"
HF Driver 1"
Material Steel
Grille Material Powder Coated Steel
Color RAL 9003 Signal white
Connector Type 4-pin Euroblock Input + Pass through
Wire Size 12 AWG (maximum)
Wire Diameter 3.3 sq. mm (maximum)
Mounting Cutout 10.7" (272 mm)
Mounting Depth 5.9" (149 mm)
Ceiling Thickness 0.5 - 1.5" (12.5 - 38 mm)
Safety Agency Ratings UL 1480A, safe for use in air handling spaces per UL 2043, CSA C22.2 No. 205 certified, IEC 62368-1
IP Rating IP34
Dimensions (Dia x D) 11.9" (302 mm) x 7.6" (194 mm)
Weight (pair) 21.2 lbs (9.6 kg)
Shipping Weight (pair) 26.2 lbs (11.9 kg)

DOCUMENTS

In The Box

  • (2) Electro-Voice EVID-EC8.2 Ceiling Speakers
  • (2) Loudspeaker Connection Covers - Installed
  • (2) Magnetic Grilles
  • (4) Ceiling Tile Rails
  • (2) C-Rings
  • (4) Screws
  • (1) Cutout Template
  • (2) Paint Covers
  • Quick Installation Guide
