Electro-Voice RE2-L21 Microphone Wireless Bodypack System (Discontinued)

Electro-Voice RE2-L21 Microphone Wireless Bodypack System (Discontinued)

Name: Electro-Voice RE2-L21 Microphone Wireless Bodypack System (Discontinued)
Brand: Electro-Voice
SKU: BOSCH-EV-RE2-L21
Price: 529 USD
Availability: OutOfStock

Write a Review

Part #:

RE-2-L21

Model #:

RE-2-L21

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Electro-Voice RE2-L21 Microphone Wireless Bodypack System brings sophisticated professional features to an affordable price point. The RE-2 is a completely programmable frequency agile system with one-touch Auto-ClearScan, operates over 28MHz (6 TV channels), XLR Mic or Line level output and many other features.

Description

Features

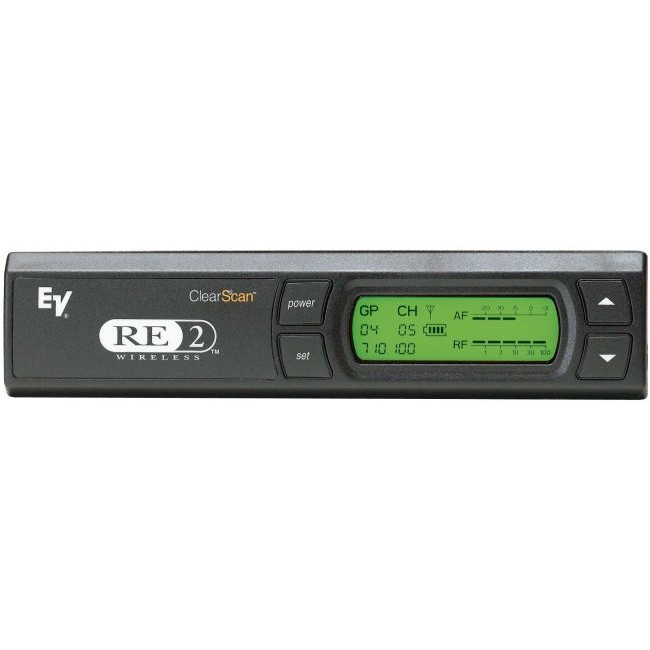

RE-2 Receiver

Completely programmable, frequency-agile wireless system
One-touch Auto-ClearScan, Posi-phase diversity
Advanced audio circuits for the best possible sound
Includes XLR mic/line level output, backlit LCD display, and a unique mode that is optimized for guitar

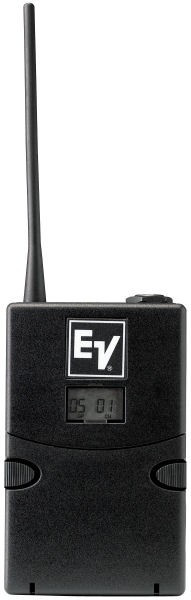

RE-2 Bodypack Transmitter

Made of high-impact ABS plastic
Compact bodypack transmitter for the RE-2 wireless system
TA4 microphone connector is compatible with any EV lavalier or headworn mic

ULM21 Lavalier Microphone

Directional pickup pattern
Reduced feedback and improved sound quality

Specifications

BPU2 Transmitter
Radiated Output	30 mW typical
TA4 Connector Wiring	Pin 1: Ground; Pin 2 Mic Input; Pin 3: +5V bias; Pin 4: +5V bias through a 3kΩ resistor
Audio Gain Adjustment	40 dB (handheld 26 dB)
Power Requirements	9 Volt Alkaline Battery
Battery Life (Typical)	> 8 hours with 9-Volt Alkaline Typical
Antenna	Flexible external 1/4 wave
Dimensions (H x W x D)	3.8" (96.52 mm) x 2.6" (66.04 mm) x 0.92" (23.368 mm)
RE-2 Receiver
Receiver Type	Synthesized PLL
Frequency Range (RF)	A Band 648 – 676 MHz (TV Channels 43 48), B Band 696 – 724 MHz (TV Channels 51 56)
Number of Channels	1112 possible channels Programmable in 25 kHz steps
Modulation	+/- 40 kHz
Diversity	Digital Secure-Phase™ True Diversity
RF Sensitivity	< 1.0 mV for 12 dB SINAD
Image Rejection	> 60 dB
Squelch	Tone Code plus Amplitude
Ultimate Quieting	> 100 dB
FCC Certification	Approved under Part 15
Power Requirements	12 V AC/DC 300 mA
Antennas	Detachable 1/4 wave
Dimensions (H x W x D)	1.72" (43.688 mm) x 7.50" (190.5 mm) x 5.90" (149.86 mm)
