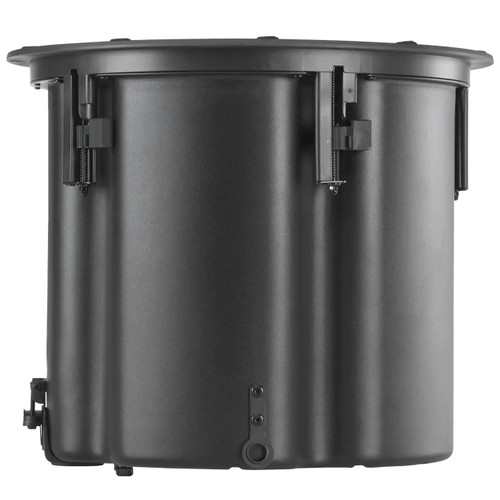

JBL Control 419CS/T 8" Ceiling Subwoofers - Pair

JBL Control 419CS/T 8" Ceiling Subwoofer

The JBL Control 419CS/T is a ceiling subwoofer, featuring an 8” woofer and integrated enclosure for installation in most ceiling plenum spaces. When you need to extend low-end performance, the Control C419CS/T integrates seamlessly with Control 400 Series full-range models to significantly extend low-frequency bass output. A full-face magnetic grille blends seamlessly with modern decors and optional black and square grilles are available. Mechanical improvements include redesigned terminal covers with top and side cable entry ports and an extremely reliable new dogear design that works with a wide range of ceiling thicknesses. The JBL Control 419CS/T includes a transformer to support both 70V/100V and low impedance applications.

Refined, Modern Aesthetics

Full-face magnetic grilles provide a sleek, refined look to meet the sensibilities of modern architectural design. They are equipped with safety tethers, which mount right into the baffle to ensure peace of mind. Optional black and square accessory grilles are also available to empower added design versatility.

Extended Low-Frequency Bass Performance

To significantly extend low-frequency bass performance of the Control 400 Enhanced Coverage Series, the Control C419CS/T features an 8” (200mm) woofer and two large, tapered ports for warm, smooth bass response. For simple integration with full-range speakers, including Control 400 full-range models, a built-In passive low-pass filter is included.

Efficient, Flexible Installation

Various Control 400 Enhanced Coverage Series mounting enhancements improve installation repeatability and safety while reducing installation time. Redesigned terminal covers provide both top and side cable entry ports and can be secured without tools thanks to captive hand-screws. The captive dogear design is extremely reliable and works with a wide range of ceiling thicknesses.

• 8" (200 mm) woofer
• Integrated enclosure with two large, tapered ports for warm, smooth bass response
• Built-In Passive low-pass filter for simple integration with full-range speakers
• Built-in 70V/100V subwoofer-band multi-tap transformer, plus 8-ohm direct input
• Full-face, easily paintable magnetic grilles
• Black and square magnetic accessory grilles available
• Top and side exit cable entry options
• Robust and adaptable dog ears for wide range of ceiling thicknesses
• IP33 rated

Spec Sheet

Owner's Manual

• (2) JBL Control 419CS/T 8" Passive Ceiling-Mounted Subwoofers
• (2) White Round Grilles
• (2) C-Rings
• (2) Tile Rails
