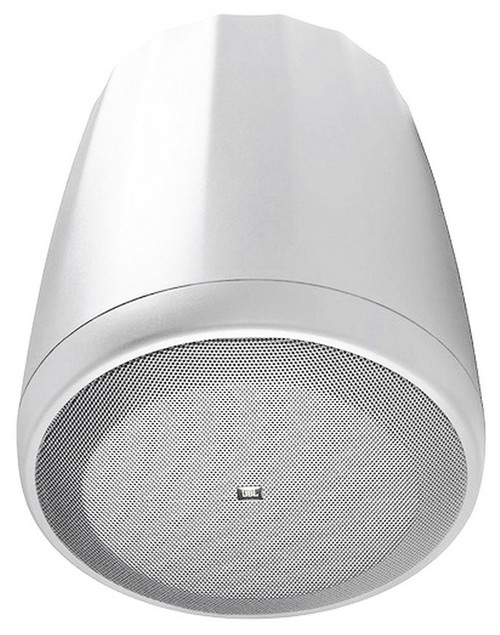

The JBL Control 60PS/T pendant subwoofer loudspeaker with crossover, provides bass extension and high impact. Features 150 Watt power handling and low distortion, the long-excursion 8" low frequency driver features butyl rubber surround for well-damped, tight sound quality and long-term reliability, and a polypropylene-coated cone for humidity protection. The high-temperature 2" voice coil and low-mass fiberglass coil former ensure good bass transient response and excellent stability under high power, high duty-cycle, working conditions.
It may be driven solo (or with other subwoofers) on an amplifier channel, sending it either a signal that has been actively low-passed earlier in the signal chain via DSP or a full-range signal, utilizing the built-in passive 125 Hz low-pass filter. The passive crossover also provides high-passed satellite outputs for use with either 2 or 4 satellite loudspeakers (not for 1 or 3 satellite speakers), resulting in a full-range, wide-bandwidth, passively-crossed, mono subwoofer-satellite system. Using the built-in passive crossover best suited for satellite speakers with sensitivities in the 82 dB to 86 dB (2.83V @ 1m) range, resulting in a well-balanced overall frequency response.
A 100 Watt multi-tap, wide-bandwidth, low-saturation transformer allows the speaker to be used on either a 70V/100V distributed speaker system or as a direct low-impedance 8 speaker. If satellite speakers are used on the 70V/100V settings, the satellite speakers should be low-impedance (8 to 16 each).
A loop out connector is provided on the subwoofer for looping the full-range input signal to other loudspeakers or to other subwoofer/satellite systems. Rubber boot covers for each locking connector protect the terminals and the optional MTC-PC60 full-top cover accessory adds additional terminal protection for outdoor use.
Applications: Restaurants, retail stores, music cafes, health clubs, theme bars, leisure venues, and other locations where full-range high fidelity foreground/background music systems are utilized.
| Frequency Range (-10 dB) | 42 Hz – 350 Hz |
|---|---|
| Frequency Response (± 3 dB) | 55 Hz – 125 Hz |
| Power Capacity | 300 Watts Continuous Program Power, 100 hrs 150 Watts Continuous Pink Noise, 100 hrs |
| Nominal Sensitivity (2.83V/1m) | 88 dB |
| Rated Maximum SPL | 107 dB @ 1m (3.3 ft) average, 113 dB peak |
| Rated Impedance | 8 ohms |
| Transformer Taps | 110W, 55W, 30W (& 15W @ 70V) Set via rotary tap-selector switch (70V/100V taps along with direct 8 ohm) |
| Transformer Insertion Loss | 0.98 dB @ 15W, 0.99 dB @ 30W, 0.94 dB @ 55W, 1.10 @ 110W |
| Standalone Hookup | Connect to Input connector; built-in low-pass filter permanently engaged. Loop Out in parallel with Input connector (pre low-pass filter) for sending to additional speakers |
| Subwoofer-Satellite Hookup | or either two or four satellite speakers (not for one or three satellite speakers). With two satellite speakers, must connect to Sat 1 and Sat 2 terminals only (NC to Sat 3 and Sat 4 terminals). Satellite outputs highpassed. Suggested satellite speakers include Control 62P (pendant), Control 52 (surface-mount on-wall) and Control 42C (in-ceiling) |
| Transducer | 200mm (8 in) polypropylene-coated paper cone with butyl rubber surround, 50 mm (2 in) high-temperature copper voice coil, vented fiberglass resin voice coil former |
| Enclosure Material | High impact polystyrene |
| Grille | Zinc-plated steel grille with powder-coat finish, foam backing |
| Environmental | Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating |

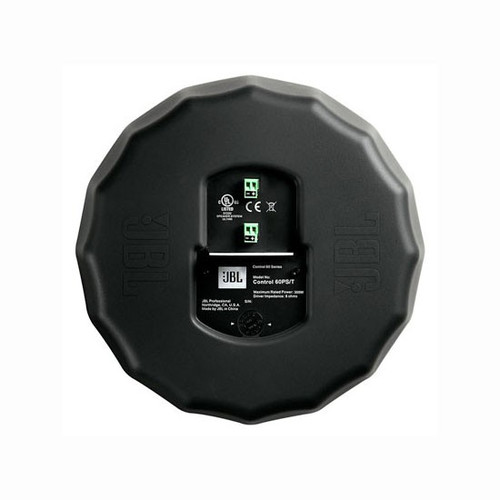

| Termination | Six removable locking 2-pin connectors with screw-down terminals. Input, Loop Out, Sat 1, Sat 2, Sat 3, Sat 4. Max wire 12 AWG (2.5 mm2). Rubber terminal covers included |
| Safety Agency | Speaker listed per UL1480 (UEAY), transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®- brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81 |
| Dimensions (Dia x H) | 13.1" (333 mm) x 13.6" (344 mm) |
| Net Weight | 16.7 lbs (7.6 kg) |
| Shipping Weight (Pair) | 38.7 lbs (17.6 kg) |
