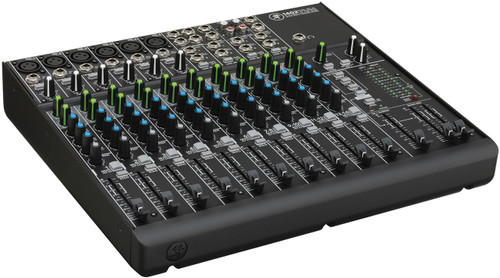

The 14-channel 1402VLZ4 brings the proven performance of Mackie's Onyx preamps in a professional compact mixer design great for applications that demand flexibility. From every input to every output, the 1402VLZ4 is designed to provide the highest headroom and lowest noise possible for maximum signal integrity. Plus, it is truly "Built-Like-A-Tank" with a ridiculously rugged solid steel chassis plus high-contrast controls for ultimate tactile control. And with features like a dedicated control room section and smooth, accurate fader control, the 1402VLZ4 is the premium mixer choice for anybody who demands professional performance.
| Main Mix Noise | |
|---|---|
| Main Mix (Fader Down, Channel Faders Down) | –101 dBu |
| Main Mix (@ Unity, Channel Faders Down) | –91 dBu (95 dB Signal to Noise Ratio, ref +4 dBu) |
| Main Mix (Fader @ Unity, Channel Faders @ Unity) | –86 dBu |
| Total Harmonic Distortion (THD) | |
| Mic Pre @ Insert | 0.0007% (1 kHz @ 35 dB gain, 20 Hz–20 kHz bandwidth) |
| Attenuation (Crosstalk) | |
| Main Mix Fader Down | –100 dBu |
| Channel Alt / Mute Switch Engaged | –90 dBu |
| Channel Fader Down | –90 dBu |
| Frequency Response | |
| Mic Input to Main Output (Gain @Unity) | +0, –1 dB, 20 Hz to 50 kHz +0, –3 dB, 100 kHz |
| Equivalent Input Noise (EIN) | |
| 150Ω Termination | –128.5 dBu, 20 Hz–20 kHz (Mic in to Insert Send out, max gain.) |
| Common Mode Rejection Ratio (CMRR) | |
| 1 kHz | better than –70 dB (Mic in to Insert Send out, max gain.) |
| Mic In | +22 dBu |
| Tape In | +16 dBu |
| All Other Inputs | +22 dBu |
| Main Mix XLR Out | +28 dBu |
| All Other Outputs | +22 dBu |
| Impedances | |
| Mic In | 2.5 kΩ |
| Channel Insert Return | 2.5 kΩ |
| All Other Inputs | 10 kΩ or greater |
| Tape Out | 1.1 kΩ |
| All Other Outputs | 120 Ω |
| EQ | |
| High Shelving | ±15 dB @ 12 kHz |
| Mid Peaking | ±15 dB @ 2.5 kHz |
| Low Shelving | ±15 dB @ 80 kHz |
| Power Consumption | |
| Watts | 25W |
| Fuse Rating | |
| 100-120V | 500 mA slo blo, 5 x 20 mm |
| 220-240V | 250 mA slo blo, 5 x 20 mm |
| Dimensions (H x W x D) | 12.5" (317 mm) x 14" (356 mm) x 3.2" (81 mm) |
| Weight | 9.5 lbs (4.5 kg) |
