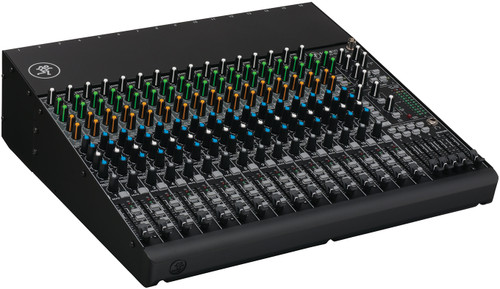

Mackie 1604VLZ4 16-Channel Compact Mixer Featuring Mackie's Flagship Onyx Mix Mic Preamps
A legend in compact mixer design, the Mackie 1604VLZ4 now combines the proven performance of Onyx preamps with the no-compromise high-headroom/low-noise design that made the 1604 an industry mainstay. All 16 channels feature an Onyx mic pre, line input and insert in a compact 4-bus design built for application flexibility and professional performance. Plus, it is truly "Built-Like-A-Tank" with a ridiculously rugged solid steel chassis that includes high-contrast controls for ultimate tactile control. Found in countless professional broadcast and post facilities and easily the most proven band-friendly analog mixer ever, the Mackie 1604 stands alone in the world of compact mixing.
Featuring Mackie's flagship Onyx mic preamps, the comprehensive Mackie 1604VLZ4 delivers the proven feature set, high-headroom/low-noise design and "Built-Like-A-Tank" construction that created an industry more than 25 years ago. From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time. 16 XLR ins, assignable sub-groups, inserts per channel.
| Main Mix Noise | |
|---|---|
| Main Mix Fader Unity, Channel Faders Down | –88.5 dBu |
| Main Mix Fader @ Unity, Channel Faders @ Unity | –82.5 dBu |
| Total Harmonic Distortion (THD) | |
| Mic In To Insert Send | |
| Mic In To Main Out | |
| Attenuation / Crosstalk | |
| Channel Mute Switch Engaged | –84 dBu |
| Channel Gain Knob Down | –84 dBu |
| Frequency Response | |
| Mic Input to Main Output (Gain @ Unity) | +0, –1 dB, 20 Hz to 50 kHz,+0, –3 dB, 100 kHz |
| Equivalent Input Noise (EIN) | |
| 150Ω Termination | –128.5 dBu20 Hz–20 kHz |
| Common Mode Rejection Ratio (CMRR) | |
| 1 kHz Better Than | –70 dB |
| Maximum Levels | |
| Mic In | +22 dBu |
| All Other Inputs | +22 dBu |
| Main Mix TRS Out | +28 dBu |
| All Other Outputs | +22 dBu |
| Impedances | |
| Mic In | 2.5 kΩ |
| Channel Insert Return | 2.5 kΩ |
| All Other Inputs | 10 kΩ or greater |
| Tape Out | 1.1 kΩ |
| All Other Outputs | 120 Ω |
| EQ | |
| High Shelving | ±15 dB @ 12 kHz |
| Mid Peaking | ±15 dB sweep 100 Hz – 8 kHz |
| Low Shelving | ±15 dB @ 80 Hz |
| Low Cut Filter | 18 dB/octave, –3 dB @ 75 Hz |
| AC Power Requirements | |
| Power Consumption | 50W |
| US, JP | 100 – 120 VAC, 50 – 60 Hz |
| EU, UK, AU, CN | 200 – 240 VAC, 50 – 60 Hz |
| Operating Temperature | 0˚ – 40˚C,32˚ – 104˚F |
| Fuse Rating | |
| 100-120V | 1A slo blo, 5 x 20 mm |
| 220-240V | 0.5A slo blo, 5 x 20 mm |
| Dimensions (H x W x D) | |
| Product | 17" (433 mm) x 17.3" (440 mm) x 5.1" (129 mm) |
| Shipping | 9.3" (236 mm) x 21.3" (541 mm) x 20.7" (526 mm) |
| Weight | |
| Net | 20.0 lbs (9.1 kg) |
| Shipping | 24.0 lbs (10.9 kg) |
