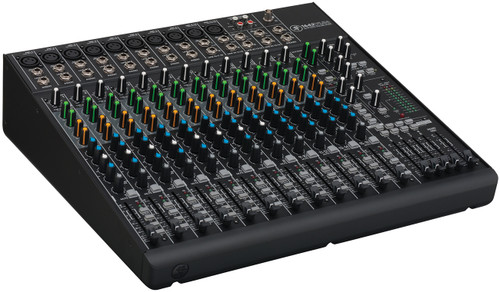

The 16-channel 1642VLZ4 delivers the proven performance of Mackie Onyx mic preamps in a compact 4-bus mixer design perfect for bands, clubs and more. From every input to every output, the 1642VLZ4 is designed to provide the highest headroom and lowest noise possible for maximum signal integrity. Plus, it is truly “Built-Like-A-Tank” with a ridiculously rugged solid steel chassis that includes high-contrast controls for ultimate tactile control. And with features like an expanded return section for no-hassle system integration plus a dedicated control room section, the 1642VLZ4 is the go-to mixer choice for any application that demands flexibility and professional performance.
| Main Mix Noise | |
|---|---|
| Main Mix Fader Unity, Channel Faders Down | –86.5 dBu |
| Main Mix Fader @ Unity, Channel Faders @ Unity | –86 dBu |
| Total Harmonic Distortion (THD) | |
| Mic In to Insert Send | |
| Attenuation / Crosstalk | |
| Channel Mute Switch Engaged | –82 dBu |
| Channel Gain Knob Down | –82 dBu |
| Frequency Response | |
| Mic Input to Main Output (Gain @ Unity) | +0, –1 dB, 20 Hz to 50 kHz,+0, –3 dB, 100 kHz |
| Equivalent Input Noise (EIN) | |
| 150 Ω Termination | –128.5 dBu,20 Hz–20 kHz |
| Common Mode Rejection Ratio (CMRR) | |
| 1 kHz | better than –70 dB |
| Maximum Levels | |
| Mic In | +22 dBu |
| All Other Inputs | +22 dBu |
| Main Mix TRS Out and XLR Out | +28 dBu |
| All Other Outputs | +22 dBu |
| Impedances | |
| Mic In | 2.5 kΩ |
| All Other inputs | 10 kΩ or greater |
| Tape Out | 1.1 kΩ |
| All Other Outputs | 120 Ω |
| 3-Band EQ (Channels 1-8) | |
| High Shelving | ±15 dB @ 12 kHz |
| Mid Peaking | ±15 dB sweep 100 Hz – 8 kHz |
| Low Shelving | ±15 dB @ 80 Hz |
| Low Cut Filter | 18 dB/octave, –3 dB @ 75 Hz |
| 4-Band EQ (Channels 9-16) | |
| High Shelving | ±15 dB @ 12 kHz |
| Hi Mid Peaking | ±15 dB @ 2.5 kHz |
| Low Mid Peaking | ±15 dB @ 400 Hz |
| Low Shelving | ±15 dB @ 80 Hz |
| Low Cut Filter | 18 dB/octave, –3 dB @ 75 Hz |
| AC Power Requirements | |
| Power Consumption | 50W |
| US, JP | 100 – 120 VAC, 50 – 60 Hz |
| EU, UK, AU, CN | 200 – 240 VAC, 50 – 60 Hz |
| Operating Temperature | 0˚ – 40˚C32˚ – 104˚F |
| Fuse Rating | |
| 100-120V | 1A slo blo, 5 x 20 mm |
| 220-240V | 0.5A slo blo, 5 x 20 mm |
| Dimensions (H x W x D) | |
| Product | 16.7" (425 mm) x 16.6" (421 mm) x 5.2" (131 mm) |
| Shipping | 9.4" (239 mm) x 21.3" (541 mm) x 19.9" (505 mm) |
| Weight | |
| Net | 18.2 lbs (8.3 kg) |
| Shipping | 21.0 lbs (9.5 kg) |
