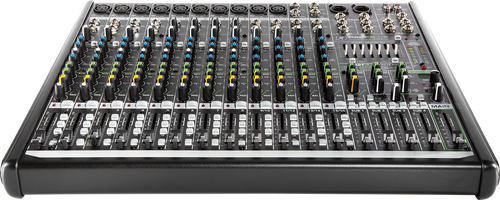

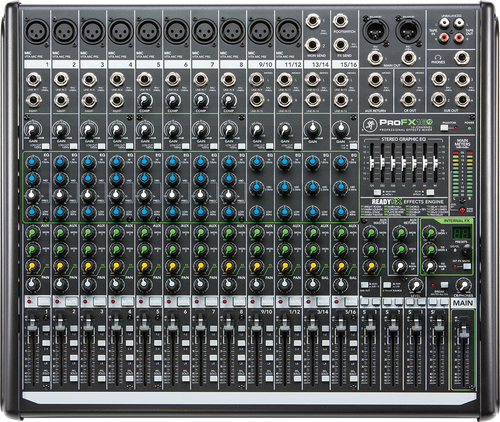

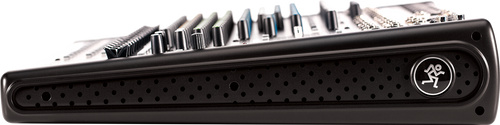

Mackie ProFX16v2 16 Channel 4-Bus Effects Mixer with USB (Discontinued)

By Mackie

Mackie ProFX16v2 16 Channel 4-Bus Effects Mixer with USB (Discontinued)

Name: Mackie ProFX16v2 16 Channel 4-Bus Effects Mixer with USB (Discontinued)
Brand: Mackie
SKU: MACKIE-2044603-00
Price: 499.99 USD
Availability: OutOfStock

Write a Review

Part #:

2044603-00

Model #:

ProFX16v2

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Mackie’s ProFX16v2 16-channel 4-bus mixer features 10 all-new Vita™ preamps for unmatched sound quality and a no-compromise live mixing toolkit including the all-new, powerful ReadyFX™ effects engine.

Description

The Mackie ProFX16v2 16-channel 4-bus effects mixer provides a comprehensive live sound solution with the channel count needed for professional performances. Delivering unmatched sound quality, ProFX16v2 features 10 all-new Mackie Vita™ preamps, which are virtually noiseless and designed specifically for the highly-dynamic world of live sound. ProFX16v2 also includes the immensely powerful new ReadyFX™ effect engine, harnessing floating-point DSP to deliver 16 rich effects that elevate any performance. A no-compromise live sound toolkit includes a GEQ, dedicated inline channel compression and a built-in USB interface for hassle-free recording/playback. With a rugged steel chassis and unmatched sonic performance, ProFXv2 is truly the life of your live mix.

Features

10 extremely low-noise Mackie Vita™ mic preamps designed to add life to any input
All-new ReadyFX™ effects engine with 16 great-sounding effects like reverbs, delays and choruses
Single-knob channel compression for smooth, even dynamic control (ch. 5-8)
7-band graphic EQ for tuning mains or monitors
Built-in USB interface to record the show or provide music playback
4 flexible subgroups for professional mix management
2 aux outputs for monitor mixes, fill speakers and more
3-band EQ with sweepable mids on mono channels
16 high-headroom line level inputs
Individual channel mutes and overload indication
100Hz low-cut filters per channel (18dB/octave)
Channel inserts for connecting outboard processing (ch. 1-4)
60 mm faders for input channels, subgroups and main masters
48V phantom power for connecting condenser mics
FX mute with remote control via footswitch
Break switch mutes all channels for music playback between sets
Control room / headphone outs with level control
Balanced XLR and balanced/unbalanced 1/4" main outputs
Built-in USB recording interface with simple setup via Mac or PC

Choose to record subgroups 1/2 or main L/R mix
Separate USB input level control to mains
USB routable to full-featured channel strip

Great for live recording and perfect for home studios
Stream playback music for live or studio applications
Includes user-friendly Tracktion® recording software
Legendary Mackie “Built-Like-A-Tank” design
Solid steel chassis protects your investment
Tough ABS side protection
Robust internal multi-voltage power supply

Specifications

Noise Characteristics
Mic In to Insert Send Out (Max Gain)	–128 dBu
All Outputs, Master Levels Unity, All Channel Levels Off	–85 dBu
Frequency Response
Mic Input to Any Output	20 Hz to 40 kHz (gain at unity, +0 dB / –1 dB)
Distortion (THD+N)
Mic In to Main Out
Attenuation and Crosstalk
Adjacent Inputs @ 1 kHz	–90 dB
Inputs to Outputs @ 1 kHz	–80 dB
Fader Off @ 1 kHz	–75 dB
Mute Switch / Break Switch Mute @ 1 kHz	–100 dB
Common Mode Rejection Ratio (CMRR)
Mic In to Main Out	70 dB (max gain, 1 kHz)
Maximum Levels
All Inputs	+22 dBu
Main Out XLR	+28 dBu
All Other Outputs	+22 dBu
Impedances
Mic In	3.3 kΩ
Channel Insert Return	10 kΩ
All Other Inputs	≥ 20 kΩ
Tape Output	1 kΩ
Phones Output	25 Ω
All Other Outputs	120 Ω Unbalanced, 240 Ω Balanced
Equalization
Low	±15 dB @ 80 Hz
Mid	±15 dB
High	100 Hz – 8 kHz
Low Cut Filter	18 dB/octave @ 100 Hz
Low	±15 dB @ 80 Hz
Mid	±15 dB @ 2.5 kHz
High	±15 dB @ 12 kHz
Dimensions (H x W x D)
Product	3.8" (97 mm) x 18.7" (475 mm) x 16" (407 mm)
Shipping	8.1" (206 mm) x 22" (559 mm) x 20.1" (511 mm)
Weight
Net	13 lbs (5.9 kg)
Shipping	19 lbs (8.6 kg)
