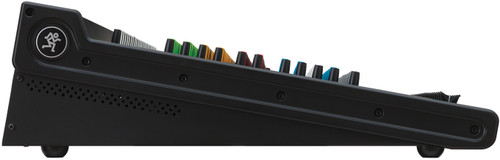

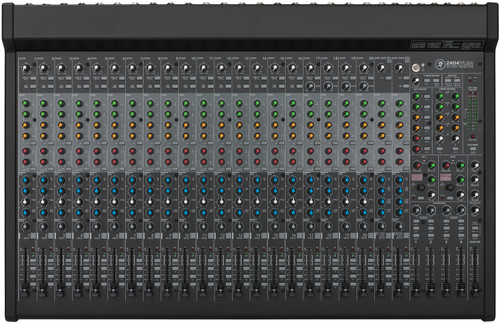

Mackie 2404VLZ4 24-Channel Mixer

Name: Mackie 2404VLZ4 24-Channel Mixer
Brand: Mackie
SKU: MACKIE-2040769-00
Price: 1349.99 USD
Availability: InStock
Rating: 5 (1 reviews)

Write a Review

Part #:

2060805-00

Model #:

2404VLZ4

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The 24-channel 2404VLZ4, featuring Mackie’s flagship Onyx mix preamps, delivers high-headroom/low-noise performance, “Built-Like-A-Tank” construction plus effects and built-in compression in a 4-bus design perfect for larger applications.

Description

The 24-channel 2404VLZ4 features the proven performance of Mackie’s Onyx mic preamps in a high-headroom/low-noise 4-bus design with a feature set perfect for live sound. The 2404VLZ4 features dual 32-bit RMFX+ effects processors each with 24 effects including tap delay. Plus, compression on dedicated channels and subgroups allows for simple, sweet dynamic control. There’s even 4x2 USB connectivity for flexible recording of the show. And, of course, Mackie’s legendary “Built-Like-A-Tank” construction delivers years of reliable use under the most strenuous conditions. The2404VLZ4 is the premium compact FX mixer solution for anybody serious about performance in a design that’s flexible, rugged and professional.

Features

24-channel 4-bus mixer featuring Mackie signature high-headroom/low-noise design
20 boutique-quality Onyx mic preamps

Ultra-wide 60dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20Hz – 50kHz)

Improved RF rejection perfect for broadcast applications
Phantom power for condenser mics
Dedicated inline channel compression for critical inputs (ch. 17-20)
20 high-headroom line inputs with dedicated inserts
3-band EQ with sweepable midrange
18 dB/oct 100Hz low-cut filter on mic input channels
Level, pan, solo and overload/mute LEDs on each channel
4 subgroups featuring dedicated inline compressors for total dynamic control
6 aux sends with inserts, pre/post fader and internal/external FX send options
2 stereo returns and 4 group outs with inserts
Dual 32-bit RMFX+™ processors featuring 24 “Gig Ready” reverbs, choruses and tap delay for live applications
Integrated 4x2 24-bit USB interface

Stream subgroups or master L/R to your PC or Mac for recording
Use your favorite plug-in live via auxes 5/6
Convenient stereo return to mains for music playback or return to channel to implement EQ, auxes and more

PFL/AFL solo modes
60 mm long-wearing log-taper faders
High-resolution 12-segment stereo meters
Sealed rotary control resist dust and grime
“Built-Like-A-Tank” rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
Universal power supply for worldwide use

Specifications

Main Mix Noise
Main Mix Fader Unity, Channel Faders Down	–87.0 dBu (–91.0 dB Signal to Noise Ratio, ref +4 dBu)
Main Mix Fader @ Unity, Channel Faders @ Unity	–81.5 dBu
Total Harmonic Distortion (THD)
Mic In To Insert Send
Mic In To Main Out
Attenuation / Crosstalk
Channel Mute Switch Engaged	–90 dBu
Channel Fader Down	–88 dBu
Equivalent Input Noise (EIN)
150Ω Termination	–128.5 dBu20 Hz–20 kHz (Mic input to insert send out, max gain)
Common Mode Rejection Ratio (CMRR)
1 kHz	Better than –70 dB
Maximum Levels
Mic In	+21 dBu
All Other Inputs	+21 dBu
Main Mix XLR Out	+27 dBu
All Other Outputs	+21 dBu
Impedances
Mic In	2.7 kΩ
Channel Insert Return	2.5 kΩ
All Other Inputs	10 kΩ or greater
Tape Out
All Other Outputs	120 Ω
3-Band EQ (mono channels)
High Shelving	±15 dB @ 12 kHz
Mid Peaking	±15 dB sweep 100 Hz – 8 kHz
Low Shelving	±15 dB @ 80 Hz
Low Cut Filter	18 dB/octave, –3 dB @ 100 Hz
4-Band EQ (stereo channels)
High Shelving	±15 dB @ 12 kHz
Hi Mid Peaking	±15 dB @ 2.5 kHz
Low Mid Peaking	±15 dB @ 400 Hz
Low Shelving	±15 dB @ 80 Hz
USB
Format	USB 1.1
I/O	Stereo Input, 4 Channel Output
A/D/A	24 bit, 44.1 kHz / 48 kHz
AC Power Requirements
Power Consumption	55W
US, JP	100 – 120 VAC, 50 – 60 Hz
Operating Temperature	0˚ – 40˚C32˚ – 104˚F
Dimensions (H x W x D)
Product (Front Height)	1.8" (46.3 mm) x 29.4" (748 mm) x 19.1" (486 mm)
Product (Rear Height)	6" (153 mm) x 29.4" (748 mm) x 19.1" (486 mm)
Shipping	10.6" (269 mm) x 33.9" (861 mm) x 23" (584 mm)
Weight
Net	31.0 lbs (14.1 kg)
Shipping	37.0 lbs (16.8 kg)
