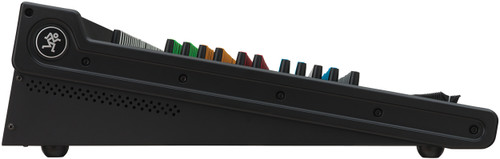

The 32-channel 3204VLZ4 features the proven performance of Mackie’s Onyx mic preamps in a high-headroom/low-noise 4-bus design with a feature set perfect for live sound. The 3204VLZ4 features dual 32-bit RMFX+ effects processors each with 24 effects including tap delay. Plus, compression on dedicated channels and subgroups allows for simple, sweet dynamic control. There’s even 4x2 USB connectivity for flexible recording of the show. And, of course, Mackie’s legendary “Built-Like-A-Tank” construction delivers years of reliable use under the most strenuous conditions. The 3204VLZ4 is the premium compact FX mixer solution for anybody serious about performance in a design that’s flexible, rugged and professional.
| Main Mix Noise | |
|---|---|
| Main Mix Fader Unity, Channel Faders Down | –84.5 dBu (–88.5 dB Signal to Noise Ratio, ref +4 dBu) |
| Main Mix/Channel Faders @ Unity | –80.0 dBu |
| Total Harmonic Distortion (THD) | |
| Mic In to Insert Send | |
| Mic In to Main Out | |
| Attenuation / Crosstalk | |
| Channel Mute Switch Engaged | –90 dBu |
| Channel Fader Down | –88 dBu |
| Frequency Response | |
| Mic Input to Main Output (Gain @ Unity) | +0, –1 dB, 20 Hz to 50 kHz +0, –3 dB, 100 kHz |
| Equivalent Input Noise (EIN) | |
| 150Ω Termination | –128.5 dBu 20 Hz–20 kHz |
| Common Mode Rejection Ratio (CMRR) | |
| 1 kHz | Better than –70 dB |
| Maximum Levels | |
| Mic In | +21 dBu |
| All Other Inputs | +21 dBu |
| Main Mix XLR Out | +27 dBu |
| All Other Outputs | +21 dBu |
| Impedances | |
| Mic In | 2.7 kΩ |
| Channel Insert Return | 2.5 kΩ |
| All Other Inputs | 10 kΩ or greater |
| Tape Out | < 10 kΩ |
| All Other Outputs | 120Ω |
| 3-Band EQ (Mono Channels) | |
| High Shelving | ±15 dB @ 12 kHz |
| Mid Peaking | ±15 dB sweep 100 Hz – 8 kHz |
| Low Shelving | ±15 dB @ 80 Hz |
| Low Cut Filter | 18 dB/octave, –3 dB @ 100 Hz |
| 4-Band EQ (Stereo Channels) | |
| High Shelving | ±15 dB @ 12 kHz |
| Hi Mid Peaking | ±15 dB @ 2.5 kHz |
| Low Mid Peaking | ±15 dB @ 400 Hz |
| Low Shelving | ±15 dB @ 80 Hz |
| USB | |
| Format | USB 1.1 |
| I/O | Stereo Input, 4 Channel Output |
| A/D/A | 24 bit, 44.1 kHz / 48 kHz |
| AC Power Requirements | |
| Power Consumption | 65W |
| US, JP | 100 – 120 VAC, 50 – 60 Hz |
| EU, UK, AU, CN | 200 – 240 VAC, 50 – 60 Hz |
| Operating Temperature | 0° – 40° C 32° – 104° F |
| Dimensions (H x W x D) | |
| Product (Front) | 1.8" (46.3 mm) x 38" (964 mm) x 19.1" (486 mm) |
| Product (Rear) | 6" (153 mm) x 38" (964 mm) x 19.1" (486 mm) |
| Shipping | 10.6" (269 mm) x 42.5" (1080 mm) x 23" (584 mm) |
| Weight | |
| Net | 39 lbs (17.7 kg) |
| Shipping | 44 lbs (20 kg) |
