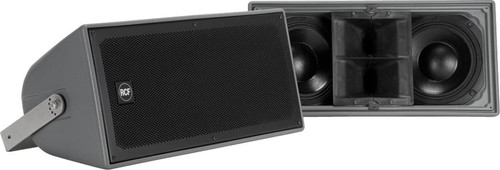

RCF P5228-L Dual 8" 500W Weatherproof 2-Way 131 dB High Output Wide-Dispersion Loudspeaker

By RCF

RCF P5228-L Dual 8" 500W Weatherproof 2-Way 131 dB High Output Wide-Dispersion Loudspeaker

Write a Review

Part #:

13000202

Model #:

P5228

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The RCF P5228-L is a dual 8" IP 55 weatherproof full range, two-way line array speaker module, offering substantial power and efficiency for a variety of professional indoor or outdoor applications.

Description

The P5228-L is an IP 55 (International Protection Rating) weatherproof full range, two-way line array speaker module, offering substantial power and efficiency for a variety of professional indoor or outdoor applications. The high-frequency section includes two constant directivity CMD horn, each loaded with a 1" RCF Precision neodymium compression driver with a 1.75" diaphragm assembly for smooth, wide horizontal dispersion and highly controlled 20° vertical coverage. The low-frequency transducers are two 8" woofers with a 2.5" voice coil.

The cabinet is a single piece rotational molded enclosure, made in medium density polyethylene, fully UV protected equipped with 4 x M8 brass inserts and a stainless steel U-Bracket. Connections to the amplifier are made through a watertight multi-pole connector. The grille is in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing.

Features

500W RMS
Weatherproof cabinet IP55
Aluminum grill and stainless steel bracket
Two 8" high-output LF transducers with 2.5" voice coil
One RCF Precision neodymium 1" compression driver with 1.75" diaphragm assembly
90° x 20° constant directivity horn
2° x 15° enclosure sides for array configurations
Active Mosfet Compression Driver Protection
LICC (Low Impedance Compensated Crossover) network
Input connector 4 pole Amphenol IP67

Specifications

Power Section
Frequency Response -10 dB	80 Hz ÷ 20000 Hz
Max SPL @ 1m	131 dB
Horizontal Coverage Angle	90°
Vertical Coverage Angle	20°
Directivity Index Q	11
System Sensitivity	98 dB
Nominal Impedance	8 Ω
Power Handling	500W
Peak Power Handling	2000W
Recommended Amplifier	1000W
Protections	Dynamic
Crossover Frequencies	1300 Hz
Transducers
Compression Driver	2 x 1" throat, 1.75" coil diaphragm assembly
Nominal Impedance	16 Ω
Input Power Rating	50W AES
Sensitivity	109 dB
Woofer	2 x 8" woofer with 2.5" coil
Nominal Impedance	16 Ω
Input Power Rating	300W AES
Sensitivity	95 dB
Input Connector	4 pole Amphenol
Cabinet Material	8 mm Polyethylene rotomoulded
Hardware	4 x M8 inserts
Grille	Custm perforated aluminium grille with open-cell fiber and water repellent woven fabric backing
Color	Grey
Dimensions (H x W x D)	10.55" (268 mm) x 22.28" (566 mm) x 9.84" (250 mm)
Net Weight	30.86 lbs (14 kg)
