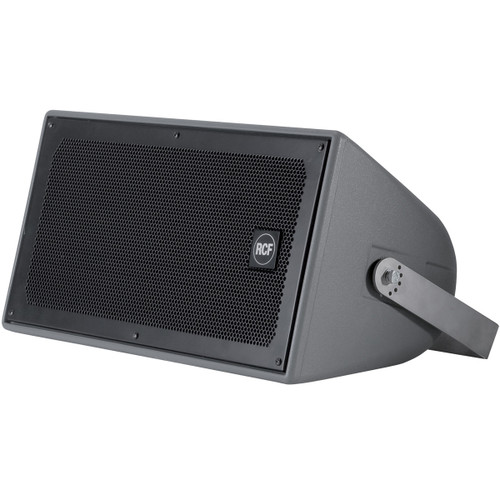

RCF P4228 Dual 8" 400W Weatherproof 2-Way 129 dB High Output Wide-Dispersion Loudspeaker

By RCF

RCF P4228 Dual 8" 400W Weatherproof 2-Way 129 dB High Output Wide-Dispersion Loudspeaker

Write a Review

Part #:

13000199

Model #:

P4228

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The RCF P4228 is an 8" weatherproof, 2-way wide-dispersion loudspeaker offering substantial power and efficiency. The cabinet full UV protected, molded in medium density polyethylene for a variety of professional indoor or outdoor applications.

Description

The P4228 is a weatherproof full range, wide-dispersion, two-way loudspeaker system offering substantial power and efficiency for a variety of professional indoor or outdoor applications. The high-frequency section is a constant directivity CMD horn loaded with a 1.4" RCF Precision compression driver with a 2.5" diaphragm assembly for smooth, wide dispersion. The low-frequency transducer is a double 8" woofer with a 2.5" voice coil.

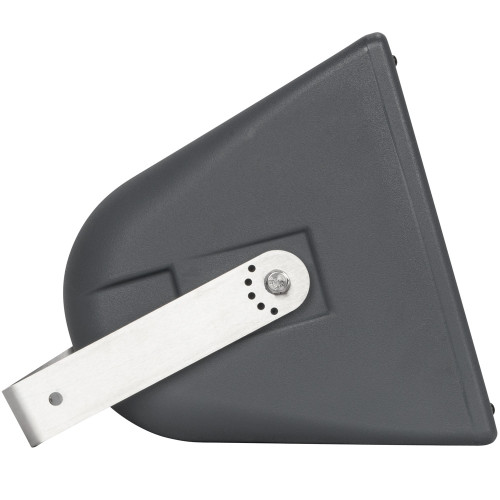

The cabinet is a single piece rotational molded in medium density polyethylene, full UV protected. The cabinet is equipped with 4 x M8 brass inserts, a stainless steel U-Bracket. The front logo is in aluminum and rotatable. The grille is in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing. P 4228 is suitable for indoor and outdoor applications/installations, it meets the requirements of IP 55 code (International Protection Rating).

Features

Weatherproof cabinet IP 55
Aluminum grill and stainless steel bracket
Two 8" high-output LF transducer with 2.5" voice coil
One RCF Precision 1.4" Neo Compression Driver with 2.5" voice coil
110° x 60° constant directivity horn
Built-in passive crossover
2° x 15° enclosure sides for array configurations
Active Mosfet Compression Driver Protection
LICC (Low Impedance Compensated Crossover) network

Specifications

Power Section
Frequency Response -10 dB	80 Hz ÷ 20000 Hz
Max SPL @ 1m	129 dB
Horizontal Coverage Angle	110°
Vertical Coverage Angle	60°
Directivity Index Q	9
System Sensitivity	97 dB
Nominal Impedance	8 Ω
Power Handling	400W
Peak Power Handling	1600W
Recommended Amplifier	800W
Protections	Dynamic
Crossover Frequencies	1100 Hz
Transducers
Compression Driver	1.4" (35.5 mm) throat, 2.5" (63.7 mm) coil diaphragm assembly
Nominal Impedance	8 Ω
Input Power Rating	90W AES
Sensitivity	110 dB
Woofer	2 x 8" (200 mm) woofer with 2.5" (64 mm) coil
Nominal Impedance	16 Ω
Input Power Rating	300W AES
Sensitivity	95 dB
Input Connector	4 pole Amphenol
Cabinet Material	8 mm Polyethylene rotomoulded
Hardware	4 x M8 + U-bracket and pair of spacers
Grille	Custom perforated aluminium grille with open-cell fiber and water repellent woven fabric backing
Color	Gray
Dimensions (H x W x D)	10.55" (268 mm) x 22.28" (566 mm) x 9.84" (250 mm)
Net Weight	30.86 lbs (14 kg)
