RDL D-RN02 0x2 Wall-Mounted Dante Interface with Dual XLR Mic Line Outputs - White

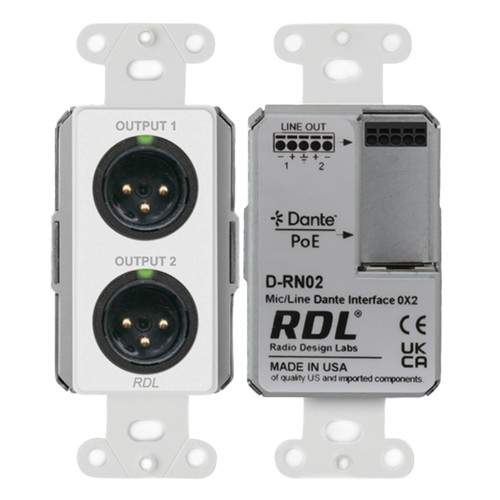

RDL D-RN02 Wall-Mounted Dante Interface in White

The D-RN02 is a professional 0x2 Dante and AES67 network interface designed for high-quality audio output in commercial AV systems. Housed in a clean, white, single-gang wall-mounted format, it provides two balanced XLR outputs on the front panel, along with mirrored outputs on a rear, detachable wiring block. This flexible configuration allows easy connection to amplifiers, powered speakers, or additional audio distribution points within a networked system.

Engineered for precision and control, the D-RN02 converts two Dante network audio channels into balanced analog outputs with exceptional clarity. Each output features software-controlled attenuation in precise 1 dB steps, and the front-panel XLR outputs can be individually set for mic or line level, offering maximum compatibility with a wide range of audio equipment. Configuration is handled via RDL CONSOLE or compatible network control software, and the unit integrates seamlessly with RDL network remote controls.

Built for reliability and performance, the D-RN02 delivers high-resolution 24-bit digital-to-analog conversion with RDL's legendary low-noise circuitry. The white Decora-style faceplate blends into modern installations, while PoE power simplifies setup by eliminating the need for local power supplies. Designed and manufactured in the U.S.A., the D-RN02 is ideal for classrooms, conference rooms, and commercial environments requiring dependable networked audio output.

• 0x2 wall-mounted Dante and AES67 audio interface in white
• Dual XLR outputs on the front panel with additional rear wiring block outputs
• Converts two Dante network channels to balanced analog outputs
• Front-panel XLR outputs selectable for mic or line level
• Software-controlled output attenuation in 1 dB steps
• High-resolution 24-bit digital-to-analog conversion
• Studio-quality, low-noise RDL audio performance
• Configurable via RDL CONSOLE or Dante-compatible software
• Compatible with RDL network remote controls
• Balanced outputs suitable for amplifiers and powered speakers
• PoE powered for simplified installation
• Fits standard single-gang wall boxes
• Durable steel chassis with white Decora-style front plate
• Ideal for classrooms, conference rooms, and commercial AV systems
• Engineered in the U.S.A. for continuous-duty operation
