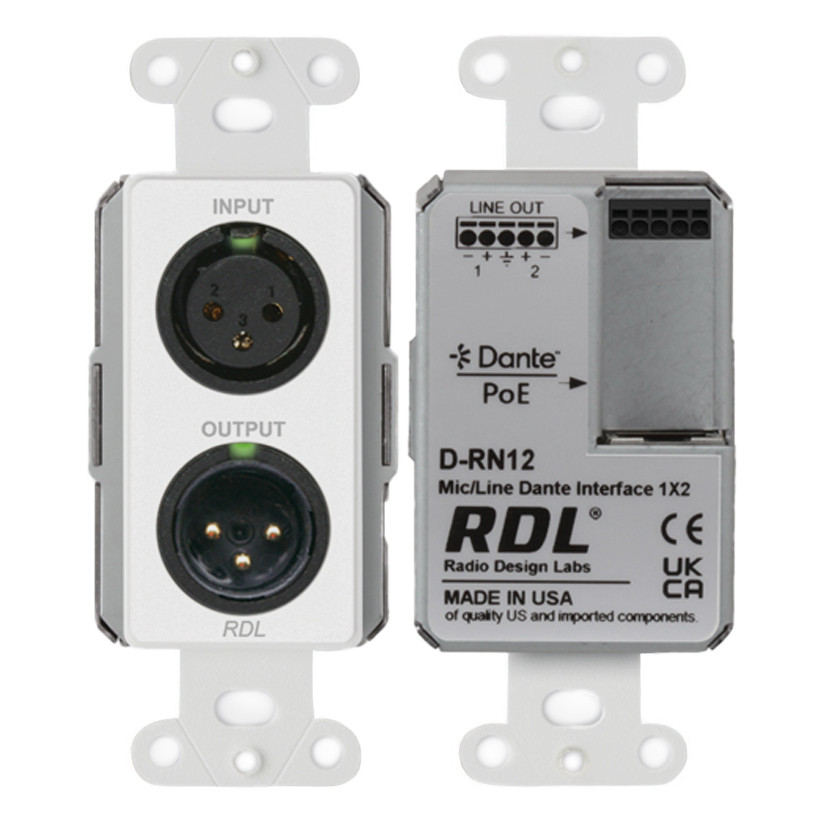

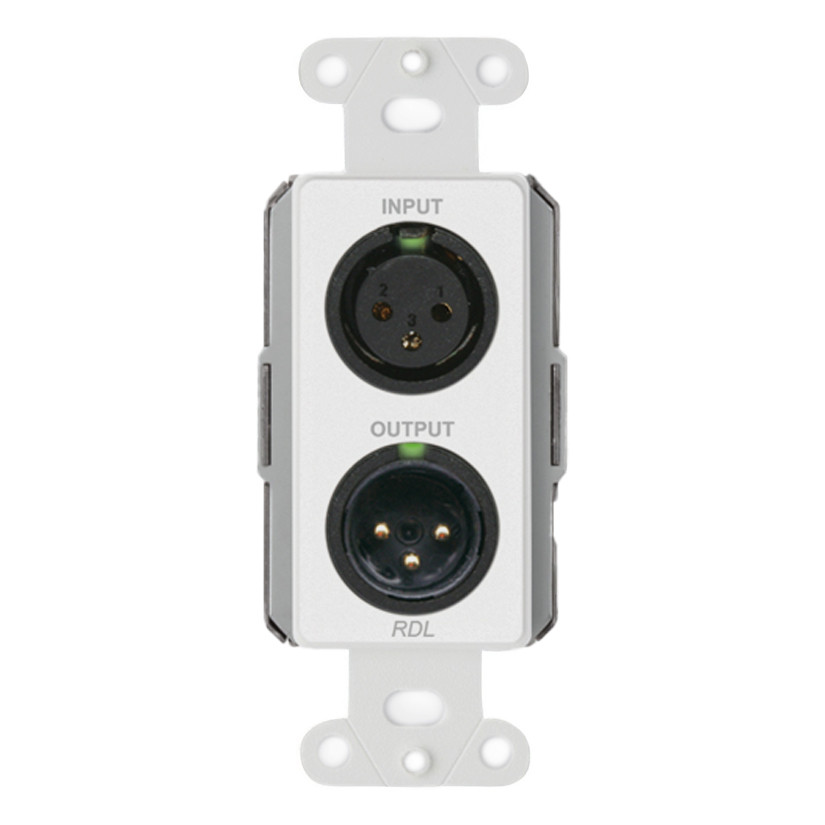

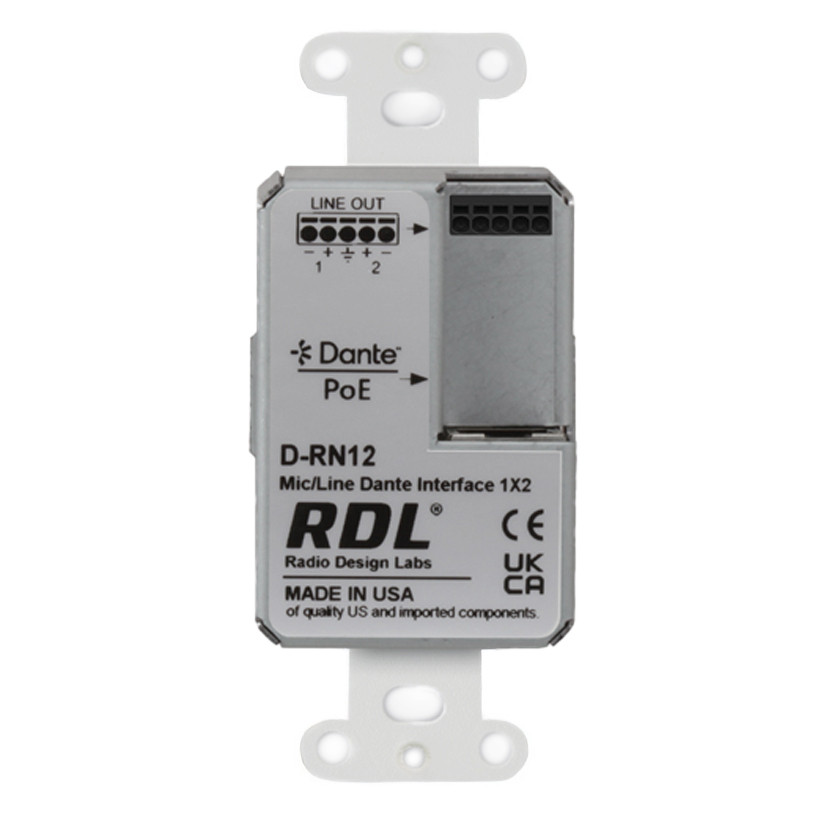

The D-RN12 is a compact and versatile 1x2 bi-directional Dante and AES67 network interface designed for professional audio installations. Housed in a clean white single-gang wall-mounted format, it features one front-panel XLR mic or line input and multiple output options, including a front-panel XLR output and two balanced line outputs on a rear detachable wiring block. This flexible configuration allows a single input source to be routed across networked systems while supporting multiple output destinations.
Engineered for precision and control, the D-RN12 offers software-selectable gain settings for both mic and line inputs, along with optional 48V phantom power for microphone applications. The front-panel XLR output is uniquely selectable for mic or line level, making it ideal for direct connection to a wide range of audio equipment. All outputs include software-controlled attenuation in 1 dB steps, ensuring accurate level matching across systems. Configuration is handled via RDL CONSOLE or compatible network control software, and the unit integrates seamlessly with RDL network remote controls.
Built for reliability, the D-RN12 delivers high-resolution 24-bit analog-to-digital and digital-to-analog conversion with RDL's legendary low-noise performance. The white Decora-style faceplate blends cleanly into modern environments, while PoE power simplifies installation by eliminating the need for local power supplies. Designed and manufactured in the U.S.A., the D-RN12 is ideal for classrooms, conference rooms, and commercial AV systems requiring flexible, high-quality networked audio distribution.
| Network Protocol | Dante |
|---|---|
| Transmission Rate | 100 Mbps |
| Sample Rates Supported | 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz |
| Bit Depth Supported | 24 bits |
| Audio Operating Level | -18 dBFS = +4 dBu |
| Input Type | XLR (female), Mic/Line |
| Mic Gain Settings | 35 dB (LOW), 42 dB (MED), 59 dB (HIGH) |
| Line Gain Settings | Unity (NORM), 12 dB (HIGH) |
| Phantom Power | P48, software-selectable |
| Line Gain | Unity or 12 dB (software selectable) |
| Phantom Power | P48, software selectable |
| Input Impedance | >1.2 kΩ |
| Frequency Response | 20 Hz - 20 kHz (± 0.5 dB) |
| Noise Level | Mic: < -88 dB (LOW), |
| Outputs | Balanced XLR (front) and detachable wiring block (rear) |
| Output Level | +4 dBu nominal, +22 dBu maximum |
| Output Attenuator | Software-controlled, 0 to -63 dB and OFF |
| Dimensions (H x W x D) | 4.11" (104.39 mm) x 1.80" (45.72 mm) x 2.09" (53.09 mm) |
| Shipping Weight | 0.70 lbs (0.32 kg) |
