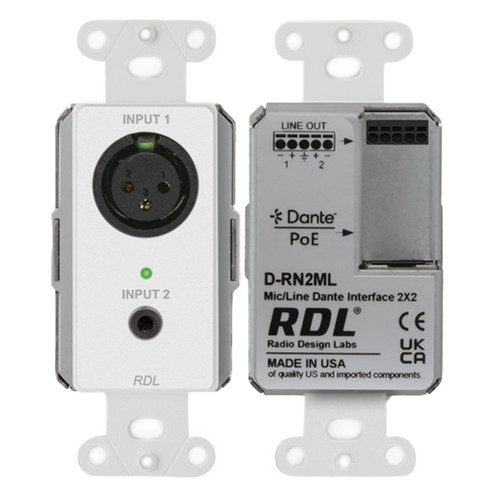

The D-RN2ML is a compact, professional 2x2 bi-directional Dante and AES67 network interface in a clean white single-gang wall-mounted design. It features one balanced XLR mic or line input and one stereo mini-jack input that is summed to mono, making it ideal for integrating microphones, laptops, and other line-level audio sources into a networked audio system. Both inputs are converted to Dante network channels with software-selectable gain and optional 48V phantom power for microphone applications.
Designed for flexible system integration, the D-RN2ML converts network audio back to two balanced line-level outputs on a rear detachable wiring block. Each output includes a software-controlled attenuator adjustable in precise 1 dB steps, ensuring accurate level matching for amplifiers or downstream equipment. Configuration is handled through RDL CONSOLE or other compatible network control software, and the unit supports RDL network remote controls for convenient operation.
The white Decora-style front plate blends seamlessly into modern installations, while PoE power simplifies deployment by eliminating the need for local power supplies. Built with a durable steel chassis and engineered for continuous-duty performance, the D-RN2ML delivers high-resolution 24-bit audio with RDL's legendary low-noise circuitry, making it an ideal solution for classrooms, conference rooms, and commercial AV environments.
| Audio Network Protocol | Dante and AES67 |
|---|---|
| Channels | 2 Input x 2 Output (Bi-Directional) |
| Network Connection | RJ45 Ethernet with link and speed indicators |
| Transmission Rate | 100 Mbps |
| Sample Rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
| Bit Depth | 24-bit |
| Analog Inputs | 1 x XLR mic/line, 1 x 3.5 mm mini-jack (stereo summed to mono) |
| Analog Outputs | 2 x balanced detachable wiring block |
| Mic Gain | 35 dB, 42 dB, 59 dB (software selectable) |
| Mini-Jack Gain | Unity, +5 dB, -5 dB (software selectable) |
| Phantom Power | P48, software selectable |
| Frequency Response | 20 Hz to 20 kHz (±0.5 dB) |
| THD+N | |
| Output Level | +4 dBu nominal, +22 dBu maximum |
| Power Requirement | PoE Class 0, IEEE 802.3af |
| Dimensions (H x W x D) | 4.11" (104.39 mm) x 1.80" (45.72 mm) x 2.09" (53.09 mm) |
| Shipping Weight | 0.71 lbs (0.32 kg) |
