Restaurant Sound System for Patio with 2 Yorkville C130/70 Outdoor Wall Mount Speakers and Bluetooth Mixer Amplifier (Discontinued Components)

Inside the Design

This Yorkville restaurant auxiliary sound system for outdoor patios or entryways features two weather-resistant Yorkville surface mount speakers that provide high quality music reproduction and vocal clarity. Add clear background music and paging to your outdoor restaurant dining area or waiting area to improve the atmosphere without overpowering customer interaction. The versatile mounting and trapezoidal shape of the Yorkville outdoor speakers make them ideal for install in tight locations. The Pure Resonance Audio MA30BT 30W mixer amplifier has the power to handle a variety of inputs with the ability to also stream wirelessly via Bluetooth and the included dual RCA cable allows you to connect this speaker system to your existing sound system.

Sound System Features:

• Yorkville C130/7 outdoor speakers deliver high-quality music reproduction and vocal clarity
• Versatile ceiling or wall mounting with rugged U-brackets and the trapezoidal shape of the speakers make them ideal for install in tight locations
• The Pure Resonance Audio MA30BT mixer amplifier includes built-in Bluetooth allowing you to quickly link up, play and control your music wirelessly from any Bluetooth-enabled device with the ability to add paging if desired
• Included dual RCA to dual RCA cable allows you to integrate this speaker system into your existing restaurant sound system
• Connect a paging mic to activate priority ducking input where music is lowered when speaking to ensure customers can hear when their party is called
• Designed as a DIY audio solution that is simple to install and operate

About the System Components

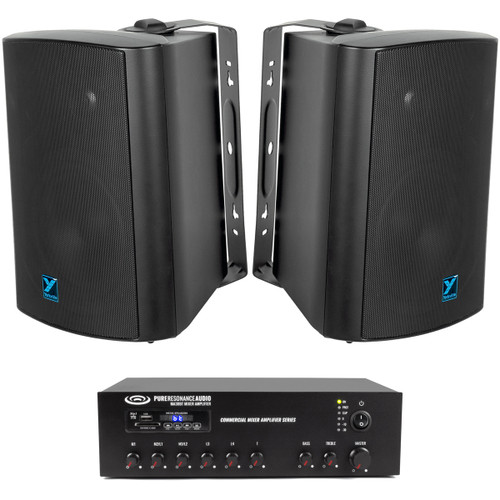

This Pro Acoustics designed restaurant auxiliary sound system includes two Yorkville C130/70 6.5" 100W 70V outdoor installtion surface-mount speakers, Pure Resonance Audio MA30BT 30 watt Bluetooth mixer amplifier, a reliable 6-input solution with built-in Bluetooth and FM radio, a 6' CBI CB2-2RR-6 dual RCA to dual RCA cable and 100' of 16/2 non-plenum black speaker wire.

Not sure if this is the right Restaurant Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

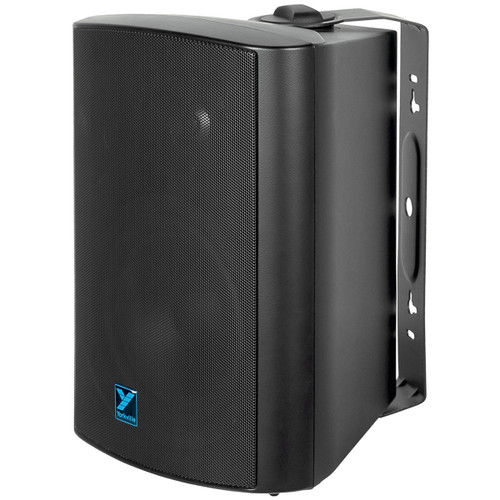

Yorkville C130/70 Coliseum Mini Series 6.5" 100W 70V Installation Loudspeakers:

• 100W / 70V two-way installation loudspeaker
• 6.5" woofer / 1" mylar dome tweeter
• 1/4" and binding post inputs
• Weather resistant plastic cabinet
• Metal grille
• Mounting U-Bracket included
• Available in White (C130W/70) or Black (C130/70) finishes

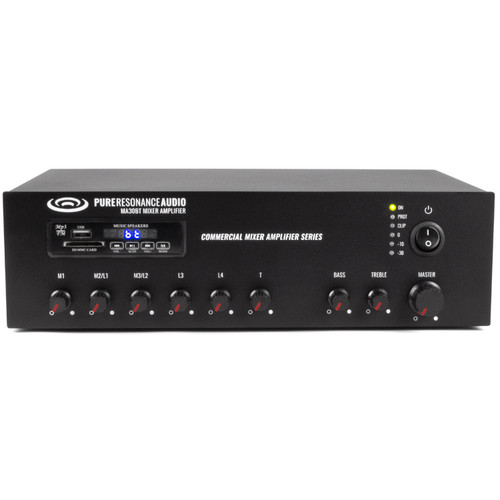

Pure Resonance Audio MA30BT 7-Channel 30W Bluetooth Mixer Amplifier:

• 7-channel powered mixer amplifier (6 inputs + Bluetooth Media Player)
• Volume Controls for Mic 1-3, Line 1-2, MP3/FM Radio, Bass, Treble and Master
• MP3 Player, FM Radio & Bluetooth (with IR remote control)
• USB and SD inputs on front panel
• Power output rating 30 Watts
• Built-in 70V/100V transformer

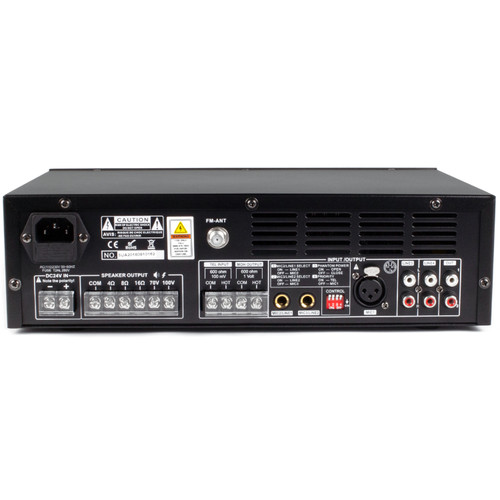

• Speaker outputs: 70V, 100V, 4, 8 and 16 Ohms
• Mic 1 of balanced XLR input (with phantom power)
• Mic 2-3 microphone or line switchable
• Line 1-2 input of RCA inputs
• DIP switches for Mic/Line, phantom power and microphone priority
• Unbalanced 6.3 mm phone jack input
• One RCA line output (0.775 line level 0 dBV)
• Telephone input (600 Ohm/100mV) with VOX priority and MOH (Music on Hold) (600 Ohm 1 Volt)
• LED indicators for power clip, protect signal, Mic 1-3, Line 1-2 and telephone inputs
• Short-circuit, clip, overload and high temp protection
• 24 VDC Emergency backup supply
• 115V 60 Hz and 24V DC both operation system

• (2) Yorkville C130/70 Coliseum Mini Series 6.5" 100W 70V Installation Loudspeakers - Black
• (1) Pure Resonance Audio MA30BT 7-Channel 30W Bluetooth Mixer Amplifier
• (1) CBI CB2-2RR-6 Dual RCA to Dual RCA Cable - 6ft

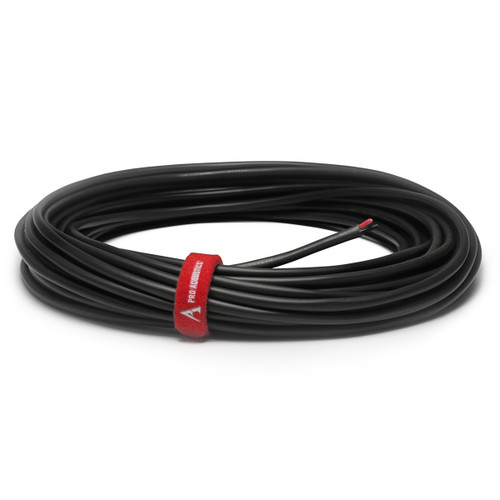

• (100') West Penn 225 16/2 Non-Plenum Audio Speaker Wire - Black
