Inside the Design
This retail store sound system with Bosch ceiling speakers and Pure Resonance Audio MA120BT Bluetooth mixer amplifier is perfect for medium to large retail stores, shops, boutiques and anywhere a background music system and paging with exceptional audio is needed.
Sound System Features:
- The Bosch splash-waterproof ceiling loudspeakers provide excellent audio performance and can be installed in humid environments
- Bosch loudspeakers designed to withstand operating at their rated power for 100 hours in accordance with IEC 268-5 Power Handling Capacity (PHC) standards
- Bluetooth mixer amplifier allows you to wireless stream music from any Bluetooth-Enabled device
- 120W 7-channel mixer amp also features MP3 player, FM radio, USB and SD inputs and IR remote control
- Paging capability with VOX priority and MOH (Music on Hold) feature
- Rugged, affordable dynamic paging microphone with a cardioid polar pattern is ideal for general public address and communication use
About the System Components
Bosch LBC 3951/11 Splash-Waterproof Ceiling Loudspeaker
The Bosch LBC 3951/11 has a perforated metal grille with a plastic surround, finished in an attractive off-white RAL color. The unobtrusive styling of this loudspeaker complements today's interior lighting. The loudspeaker features a very wide opening angle, which means fewer units are required to cover a given area. The wide frequency range means better speech and music reproduction. The unit is supplied with a 100 V matching transformer with taps on the primary winding for full-power, half-power, quarter-power and eighth-power radiation. The loudspeaker (with special treated paper cone), is IPx4 water protected from the front and can be applied in humidity environments such as bathrooms, saunas, atriums and swimming pool areas. The LBC 3951/11 is a compact, 6 W loudspeaker with a perforated metal grille. It has excellent audio performance and is easy to install with its integral mounting clips. The loudspeaker is IPx4 water protected from the front so it can be installed in humid environments..

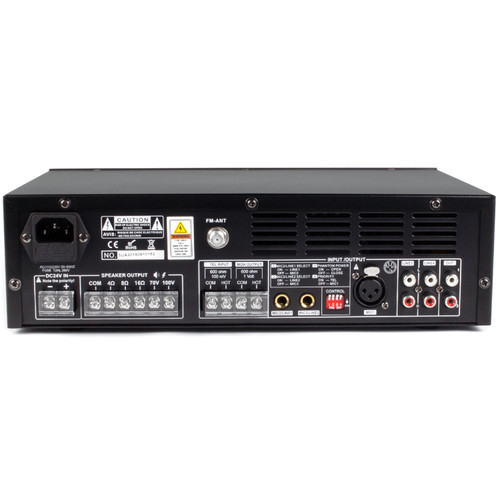

Pure Resonance Audio MA120BT 7-Channel Bluetooth 120W Commercial Mixer Amplifier
The Pure Resonance Audio MA120BT mixer amplifier with built-in Bluetooth and 70V/100V transformer technology provides a simple to operate and reliable 6-input solution with a built-in Bluetooth media player for installation in commercial applications. Balanced and unbalanced inputs 70V, 100V, 8 ohm or 4 ohm outputs, and a compact size and interface are all combined to make this mixer-amp an easy choice for any application.

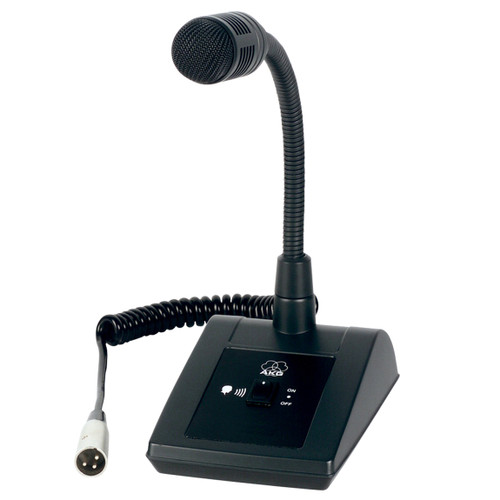

AKG DST99 S Dynamic Gooseneck Paging Microphone
The DST99 S is a paging microphone with a cardioid polar pattern for general public address and communication use. The DST99 S provides a frequency response tailored to speech use, for optimum intelligibility as well as good off-axis rejection, high gain before feedback and suppression of unwanted ambient noise. The all-metal body ensures a long useful life for the microphone, even in tough day-to-day use. The DST99 S is mounted on a table stand with an on/off switch and supplies a coiled cable with three-pin XLR connector. Using a dynamic capsule, the DST99 S does not require any powering.
