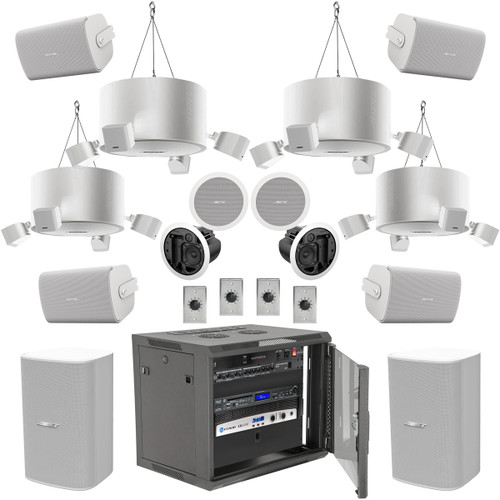

Rock Climbing Gym Sound System with 4 QSC All-In-One Pendant Loudspeaker Systems, 10 Bose Speakers and Bluetooth Connectivity

Inside the Design

This large indoor rock climbing facility multizone sound system features four all-in-one QSC pendant speaker systems, each containing four satellite speakers and a subwoofer in a single enclosure, along with ten Bose loudspeakers to cover multiple areas such as the main climbing zone with high open ceilings, lobby, offices, locker rooms, and workout spaces. The system includes four wall-mounted volume controls for fine-tuning levels in each area. Designed to provide both background and foreground music for an energetic and exciting environment, this system offers Bluetooth capability and supports media playback through AM/FM radio, CDs, USB, SD card, and mobile devices.

Sound System Features:

• Clear, high-quality background music and paging performance
• QSC AD-P.HALO pendant loudspeakers deliver sleek aesthetics and premium audio
• Bose FS2C ceiling speakers feature a full-range 2.25" transducer with a low frequency range down to 85 Hz
• Bose FS4SE surface-mount speakers include a 4.5" transducer with a low frequency range down to 70 Hz
• Bose DesignMax DM8S speakers feature an 8" woofer with a 1" compression driver for a 60 Hz to 20 kHz frequency range
• The Tascam CD-400U provides CD, Bluetooth, AM/FM, USB, and SD card playback in one convenient unit
• AtlasIED AT100 attenuators offer excellent frequency response, low insertion loss, and reliable volume control performance



About the System Components

QSC AD-P.HALO 6.5" All-In-One Pendant Loudspeaker Systems

The QSC AD-P.HALO is a fully integrated SUB/SAT pendant loudspeaker system featuring an internal 6.5" subwoofer and four 2.75" satellite transducers housed in a single enclosure. Designed for business music applications where sound defines the atmosphere, it offers a 200W RMS power rating with outstanding dynamic headroom that surpasses traditional two-way pendant loudspeakers.

Bose FreeSpace FS2C In-Ceiling Loudspeaker

The Bose FS2C ceiling loudspeaker features a full-range 2.25" cone transducer with a frequency range down to 85 Hz and supports both 16-ohm and 70V/100V operation. It includes front baffle-mounted tap settings and a detachable Euroblock connector for easy installation. The redesigned enclosures and updated aesthetics make the FS series ideal for high-quality background music and paging applications in commercial spaces.

Bose FreeSpace FS4SE Surface-Mount Loudspeaker

The Bose FS4SE surface-mount loudspeaker features a full-range 4.5" cone transducer with a frequency range down to 70 Hz and supports 8-ohm and 70V/100V operation. Its detachable Euroblock connector and IP55 outdoor rating provide flexible installation options. The FS series offers high-quality sound for background music and voice announcements with a modern, updated design.

Bose DesignMax DM8S 8" Surface Mount Loudspeaker

DesignMax loudspeakers combine premium performance with versatile installation options for commercial environments. The DM8S includes an 8" woofer paired with a 1" compression driver to deliver powerful full-range sound from 60 Hz to 20 kHz. With no DSP or EQ required, these speakers offer instantly impressive audio. Optional DSP and SmartBass processing through select Bose processors enhance performance even further.

Crown CDi 2000 2-Channel Power Amplifier

The Crown CDi Series amplifiers are designed for installed sound applications, offering rugged, lightweight construction and reliable performance. The CDi 2000 delivers professional-grade power output suitable for commercial venues, providing consistent operation and excellent value.

Rolls RM67 Mic/Source Mixer

The Rolls RM67 is a single rack space mic and source mixer built for installation environments. It mixes three balanced microphone inputs with four stereo sources into mono or stereo balanced outputs. Features include individually switchable phantom power, mic/line level switching, tone controls, priority talkover, and a front-panel 3.5 mm input. It also includes a pre-master RCA output for recording and a remote volume control connection.

Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth

The Tascam CD-400U combines disc playback, wireless streaming, AM/FM radio, USB, and SD card support into a compact 1RU media player. Ideal for commercial environments such as gyms, restaurants, houses of worship, and education facilities, it ensures flexible and reliable playback of multiple media formats for any audio need.

ART PS8-II Professional Power Sequencer

The ART PS8-II power sequencer provides controlled power activation for audio equipment, helping prevent damage from power surges. It features eight switched rear outlets and one unswitched front outlet, allowing sequential powering of equipment racks in professional installations.

AtlasIED AT100 100W Plate-Mounted Attenuators

The AtlasIED AT100 attenuators offer excellent frequency response, low insertion loss, and dependable performance for volume control in distributed audio systems. They provide up to 100 watts of power handling and are ideal for multizone installations requiring independent level adjustment.

Gator GRW2009509 9U 21" Deep Sectional Wall Rack with Glass Door

The Gator GRW2009509 is a 9U sectional wall rack featuring a tempered glass front door, robust steel construction, and a 21" depth suitable for housing a variety of installed audio components securely.

System & Component Videos

QSC AD-P.HALO 6.5" 200W Integrated SUB/SAT All-In-One Pendant Loudspeaker Systems

• Integrated 6.5" subwoofer with four 2.75" satellite transducers housed in a single pendant enclosure
• All-in-one system design eliminates the need for assembly or additional satellite mounting
• Offers a powerful 200W RMS rating with impressive dynamic headroom
• Provides consistent tonal quality across the AcousticDesign family for ceiling, surface, and pendant applications
• Compatible with Q-SYS intrinsic correction and QSC processing amplifiers for optimized system performance
• Durable ABS enclosure designed for long-term reliability
• Equipped with low-saturation 70V and 100V transformers with a 6 ohm bypass option
• Transformer taps include 100W, 50W, 25W, and 12.5W settings
• Rated IP54 for dust and splash protection
• UL1480A and CE certified for safety and compliance
• Available in black (RAL 9011) or white (RAL 9010) to match various installation environments
• Includes complete suspension hardware and fasteners for streamlined installation
• Full EASE, CAD, and BIM documentation available online

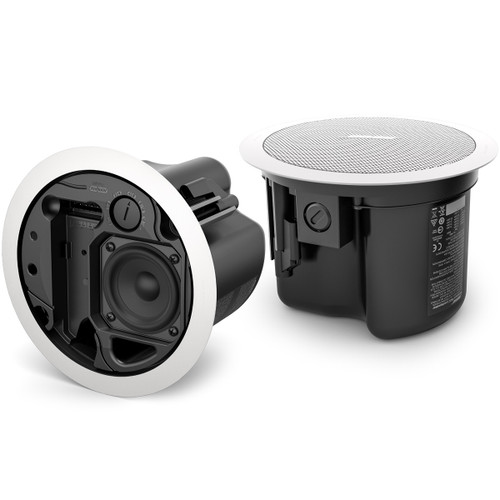

Bose FreeSpace FS2C In-Ceiling Loudspeaker

• Features a full-range 2.25" transducer with low frequency extension down to 83 Hz for clear background music and speech
• Supports 16 ohm and 70V or 100V operation with front baffle tap selection for quick adjustments
• Offers smooth, natural sound with shared voicing across all FS models for consistent performance
• Designed to deliver excellent voice reproduction and balanced musical clarity
• Provides flexible installation options with mix and match ceiling, surface, and pendant models for system customization
• Updated modern enclosures available in black or white with removable logos for discreet integration
• Compatible with a full suite of mounting accessories tailored for diverse site conditions
• Front-baffle Euroblock input simplifies wiring and setup
• UL1480 ULC-S541 listed for use in fire alarm and signaling systems



Bose FreeSpace FS4SE Surface-Mount Loudspeaker

• Full-range 4.5" transducer delivers enhanced low-frequency performance down to 70 Hz
• Supports 8 ohm, 70V, and 100V operation for versatile system integration
• Weather-ready design suitable for outdoor wet installations
• Shared voicing across all FS models ensures consistent tonal quality throughout the system
• Provides excellent clarity for both music and speech reinforcement
• Modern, low-profile enclosures available in black or white with removable logos
• Accessory options simplify mounting in a wide range of environments
• Euroblock connections streamline installation and servicing
• UL1480 ULC-S541 listed for fire alarm and life-safety applications

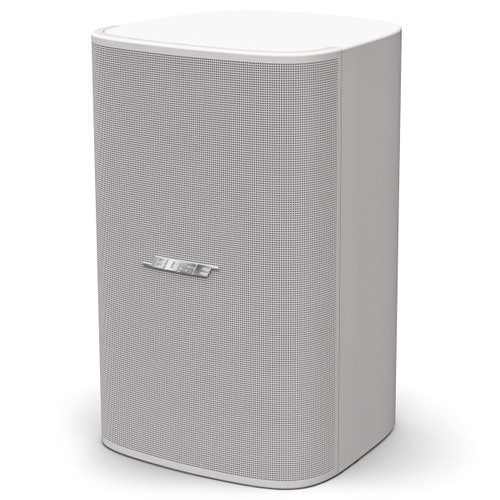

Bose DesignMax DM8S 8" Surface Mount Loudspeaker

• Part of a versatile family featuring 12 loudspeaker models for creating scalable system designs
• Delivers premium sound instantly with custom Bose drivers that require no DSP or EQ to perform well
• Enhanced audio quality available when used with Bose DSPs and amplifiers to activate SmartBass processing and Bose EQ
• Elegant, minimum-bezel design available in black or white with removable logos for clean visual integration
• Patented QuickHold mounting system reduces installation time and helps prevent damage
• Includes Euroblock connectors for simple wiring and troubleshooting
• Produces high SPL output suitable for foreground music applications



Crown CDi 2000 2-Channel Power Amplifier

• Supports 2, 4, and 8 ohm loads as well as 70V and 140V constant voltage systems for maximum flexibility
• Energy-efficient switch-mode universal power supply
• Front panel LCD screen allows quick setup and configuration
• Built-in DSP includes crossovers, EQ, delay, and output limiting for system tuning and protection
• Stores up to 20 user defined DSP presets for fast recall



Rolls RM67 Mic/Source Mixer

• Three balanced XLR mic inputs with switchable phantom power and input padding
• Clip LEDs provided for each microphone input
• Mute jack allows contact closure muting of the main output
• Master output level control for building-wide adjustments
• Remote Volume jack supports an optional 100K ohm wall control
• Stereo Record Out for easy system recording
• Priority ducking for microphone paging or jukebox override
• Mic insert jack allows external processing for microphone channels
• Four stereo RCA inputs for consumer-level audio sources
• Bass and Treble controls available on source channels

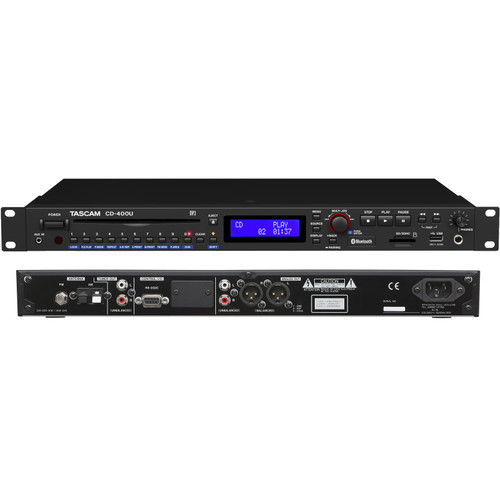

Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth

• Slot-loading CD player offers fast and reliable disc handling
• Supports USB thumb drives, HDDs, SD, and SDHC cards for modern media playback
• Built-in Bluetooth enables wireless audio streaming from phones and tablets
• Power-On-Play function automatically starts playback from USB, SD, or CD sources when powered on
• Wireless Bluetooth range up to 100 feet for flexible device placement
• Supports CD-DA, MP3, WAV, and AAC file formats
• Includes 3.5 mm input for portable audio players and mobile devices
• Integrated AM/FM tuner with dedicated audio output for multi-room routing
• Balanced XLR and unbalanced RCA outputs for easy system integration
• Direct track access through 10-key front panel keypad
• Random, repeat, and single play modes for versatile playback control
• Pairs with up to 8 Bluetooth devices for quick source switching
• Folder-only and all-play modes for organizational convenience
• Lockable front panel prevents unauthorized adjustments
• Includes IR remote control for long-range operation
• 1RU rack-mount design with removable rack ears
• Detachable IEC AC input and 100 to 220V switching power supply

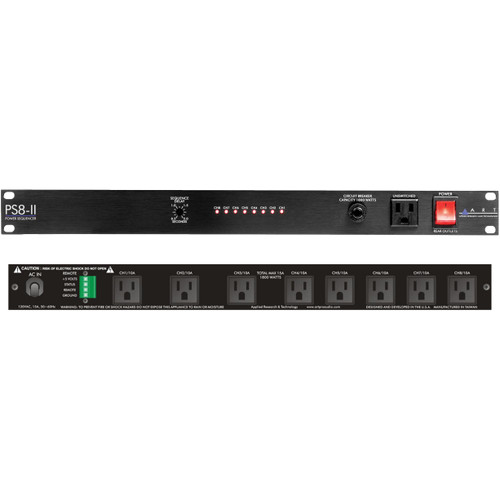

ART PS8-II Professional Power Sequencer

• Adjustable sequence delay from 0.5 to 2.0 seconds per output
• Eight individually sequenced rear outlets with front-panel LED indicators
• Rear terminal block for remote sequence triggering
• Front panel unswitched outlet for always-on equipment
• Supports up to 1800 watts of connected equipment
• Master front breaker and power switch
• Built-in EMI and RFI filtering for noise reduction
• Provides surge and spike protection for connected devices

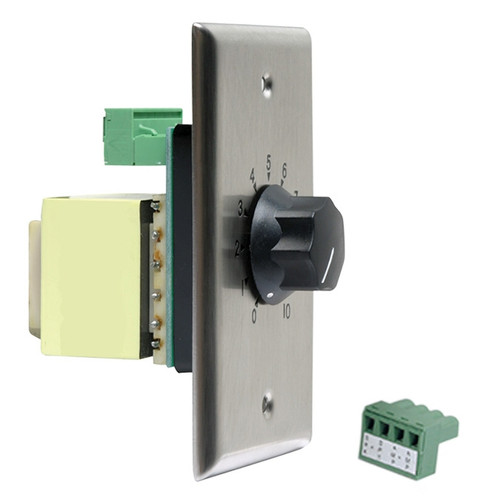

AtlasIED AT100 100W Plate Mounted Attenuators

• Includes 10 attenuation steps plus positive off for precise level control
• Fits standard 1-gang electrical boxes for easy installation
• UL listed for commercial reliability and safety
• Stainless steel wall plates with stamped dial scale and a skirted black knob

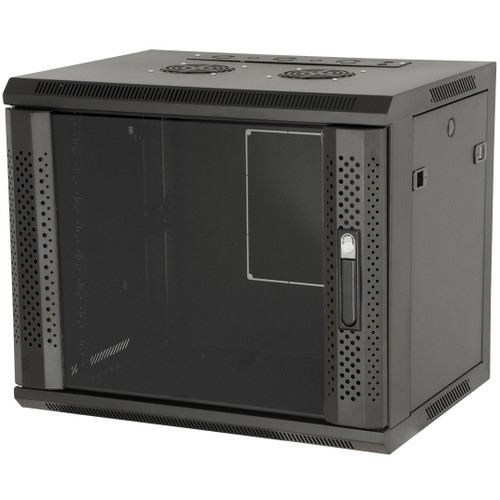

Gator GRW2009509 9U 21" Deep Sectional Wall Rack with Glass Door

• Double section hinged welded frame for secure and accessible equipment mounting
• Removable 18 gauge side panels with spring latches
• Made with 18 gauge SPCC cold rolled steel top and bottom panels
• Fan ready perforated top for ventilation
• Front and rear rack rails are 11 gauge steel and pre-tapped
• Printed rack unit markings for fast equipment placement
• Includes 10/32 rack screws
• Multiple cable entry knockouts including 1/2", 5/8", 3/4", 1", 1 1/4", and 1 1/2"
• 5/8" knockout designed for VHF and UHF antennas
• 10" x 10" rear knockout enables large cable entry
• Front door features toughened glass with vented sides and a spring loaded push and turn lock



• (4) QSC AD-P.HALO 6.5" 200W Integrated SUB/SAT All-In-One Pendant Loudspeaker Systems
• (4) Bose FreeSpace FS2C In-Ceiling Loudspeakers
• (1) Bose FreeSpace FS2C Tile Bridges, Adjustable (6-Pack)
• (4) Bose FreeSpace FS4SE Surface-Mount Loudspeakers
• (2) Bose DesignMax DM8S 8" Surface Mount Loudspeakers
• (1) Crown CDi 2000 2-Channel Power Amplifier
• (1) Rolls RM67 Mic/Source Mixer
• (1) Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth
• (1) ART PS8-II Professional Power Sequencer
• (4) AtlasIED AT100 100W Plate Mounted Attenuators
• (1) Gator GRW2009509 9U 21" Deep Sectional Wall Rack with Glass Door

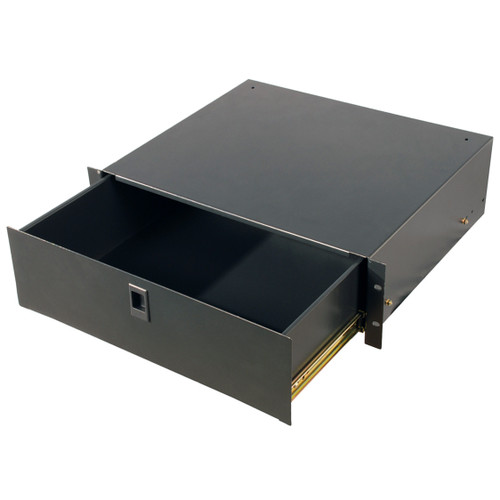

• (1) Gator GRW-DRW3 3U Rack Drawer
• (1) Gator GRW-PNLSTFT1 1U Steel Flat Panel
• (2) CBI BLA-3-PREP-TRS Male 1/4" TRS to Prep Cables - 3ft

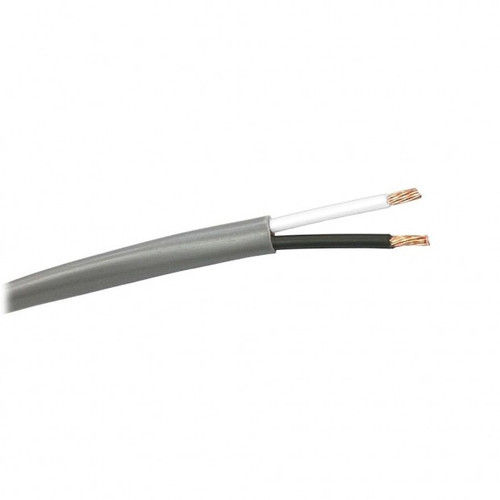

• (1000') West Penn 226 14/2 Non-Plenum Audio Speaker Wire - Gray
