Sennheiser ew 312 G3 Wireless Lavalier Microphone System (Discontinued)

Sennheiser ew 312 G3 Wireless Lavalier Microphone System (Discontinued)

Name: Sennheiser ew 312 G3 Wireless Lavalier Microphone System (Discontinued)
Brand: Sennheiser
SKU: SENN-503330
Price: 849 USD
Availability: OutOfStock

Write a Review

Part #:

503330

Model #:

EW-312-G3

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

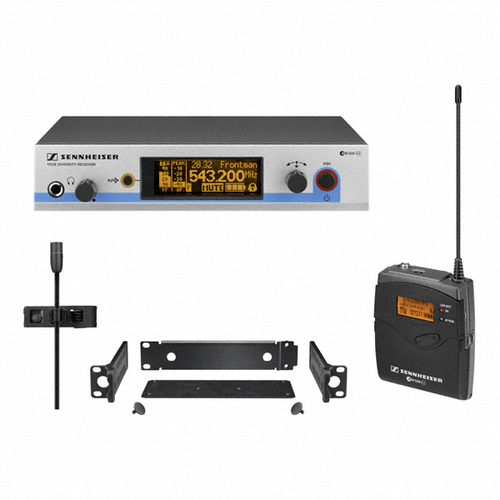

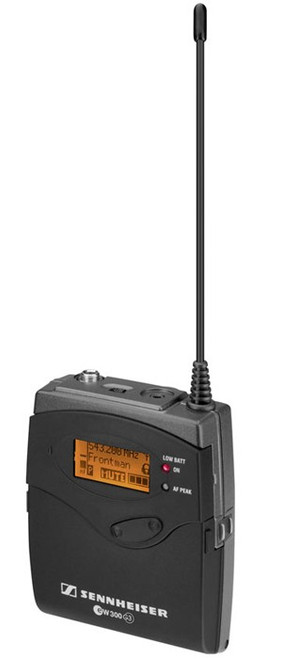

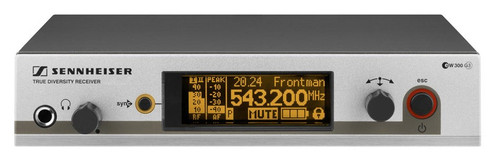

The Sennheiser ew 312 G3 is a wireless lavalier microphone system with unobtrusive ME 2 cardioid omni-directional clip-on microphone, robust SK 300 G3 bodypack transmitter, and EM 300 G3 true diversity receiver for highest reception quality.

Description

Communicating in harmony: when the settings on the receiver are changed, the components adjust to each other automatically with one push of the front panel sync button. The bodypack transmitter is equipped with charging contacts for the optional BA2015 rechargeable battery. The inconspicuous omni-directional clip-on microphone is optimized for best reproducing the sound of the human voice and provides supreme speech intelligibility.

Features

Unobstrusive clip-on microphone optimized for speech intelligibility
Highest reception quality thanks to true diversity technology
Scan function identifies available frequencies
Sturdy metal housing (transmitter and receiver)
42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
Enhanced frequency bank system with up to 24 compatible frequencies
Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Enhanced AF frequency range
Increased range for audio sensitivity
Wireless synchronization of transmitter parameter from receiver
User-friendly menu operation with more control options
Illuminated graphic display, receiver also shows transmitter settings
Auto-Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Transmitter feature battery indicatation in 4 steps, also shown on receiver display
Programmable Mute function
Integrated Equalizer and Soundcheck mode
Contacts for recharging BA 2015 accupack directly in the transmitter
Wide range of accessories adapts the system to any requirement

Specifications

General
Microphone Frequency Response	80...18000 Hz
Compander	HDX
Audio-XLR Connector	6,3 mm
Presets	24
Microphone	Electret
Sound Pressure Level	130 dB(SPL) max.
THD	< 0,9 %
Pick-Up Pattern	omni-directional
AF Sensitivity	20 mV/Pa
Signal-to-Noise Ratio	> 115 dB(A)
RF Frequency Range	516...865 MHz
RF Output Power	10/30 mW
Transmission/Receiving Frequencies	1680
Switching Bandwidth	42 MHz
Peak Deviation	+/- 48 kHz
In Compliance With	ETS 300422, ETS 300445, CE, FCC
Antenna Connector	2 BNC, 50 Ω
Input Voltage Range	1,8 V, line
Audio Output Level (Balanced)	unbalanced: Jack : +12 dBu max
Audio Output Level (Unbalanced)	balanced: XLR : +18 dBu max
Transmitter
Operating time	> 8 h
Dimensions (H x W x D)	0.94" (24 mm) x 2.52" (64 mm) x 3.22" (82 mm)
Weight	0.35 lbs (0.16 kg)
Receivers
Dimensions (H x W x D)	1.69" (43 mm) x 8.34" (212 mm) x 7.95" (202 mm)
Weight	2.16 lbs (0.98 kg)
