Shure MXW6X/C Cardioid Wireless Boundary Microphone Transmitter

Shure MXW6X/C Cardioid Wireless Boundary Microphone Transmitter - Black

Name: Shure MXW6X/C Cardioid Wireless Boundary Microphone Transmitter - Black
Brand: Shure
SKU: SHURE-MXW6X/C=-Z10
Price: 737 USD
Availability: InStock

Write a Review

Part #:

MXW6X/C=-Z10

Model #:

MXW6X/C

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Shure MXW6X/C is a low-profile boundary microphone transmitter in black with an integrated cardioid capsule, delivering focused, clear speech pickup for conferencing. Offers up to 17 hours of runtime, AES-256 encryption, and seamless integration with Microflex Wireless neXt systems.

Description

Shure MXW6X/C Cardioid Black Boundary Transmitter

The MXW6X/C cardioid boundary microphone transmitter combines discreet design with advanced wireless performance, making it ideal for boardrooms, classrooms, and collaborative meeting spaces. Its cardioid microphone element captures speech with clarity while rejecting surrounding noise, ensuring that conversations remain intelligible and professional.

With up to 17 hours of continuous use from the included SB906 rechargeable lithium-ion battery, the MXW6X/C supports even the longest meetings. Features like programmable mute control, remote room system integration, out-of-range alerts, and adjustable transmit power ensure reliable and flexible operation. Built-in AES-256 encryption guarantees that sensitive meeting audio stays private, while the compact black housing blends seamlessly into any conference environment.

Features

Low-profile boundary microphone transmitter in black with integrated cardioid capsule
Optimized speech pickup with focused rejection of background noise
Compatible with Microflex Wireless neXt systems
Up to 17 hours runtime with included SB906 rechargeable Li-Ion battery
AES-256 encryption ensures secure, private audio transmission
Programmable mute button with push-to-talk, push-to-mute, or toggle options
Remote mute/unmute integration with room control systems
Adjustable transmit power for coverage up to 160 ft (50 m)
Out-of-range alert with audible reminder
Defeatable power switch to prevent accidental shutdown
Information screen shows battery time remaining, room assignment, and status
Earphone output jack for translation, cueing, or monitoring

Specifications

Internal Microphone Input	Cardioid Condenser Capsule
Frequency Response (Mic)	27 Hz ‒ 19 kHz (+3 dB / -3 dB)
Dynamic Range (Mic)	112 dB (A-weighted), 110 dB (unweighted), typical
Headphone Output – Max Level	-1 dBV (Volume = 100%)
Headphone Frequency Response	27 Hz – 19 kHz (+0.5 dB / -3 dB)
Headphone Dynamic Range	100 dB (A-weighted), 98 dB (unweighted), typical
Headphone Load Impedance	>8 kΩ, typical
Max Headphone Output Power	1.5 mW (8Ω load, 1 kHz sine wave)
Short-Circuit Protection	Yes (headphone outputs protected)
Wireless Range	Up to 160 ft (50 m)
Mute Functionality	Programmable (push-to-talk, push-to-mute, toggle, or remote)
Finish	Black
Encryption	AES-256 (always on)
Battery Type	Shure SB906 Rechargeable Li-Ion
Battery Life	Up to 17 hours

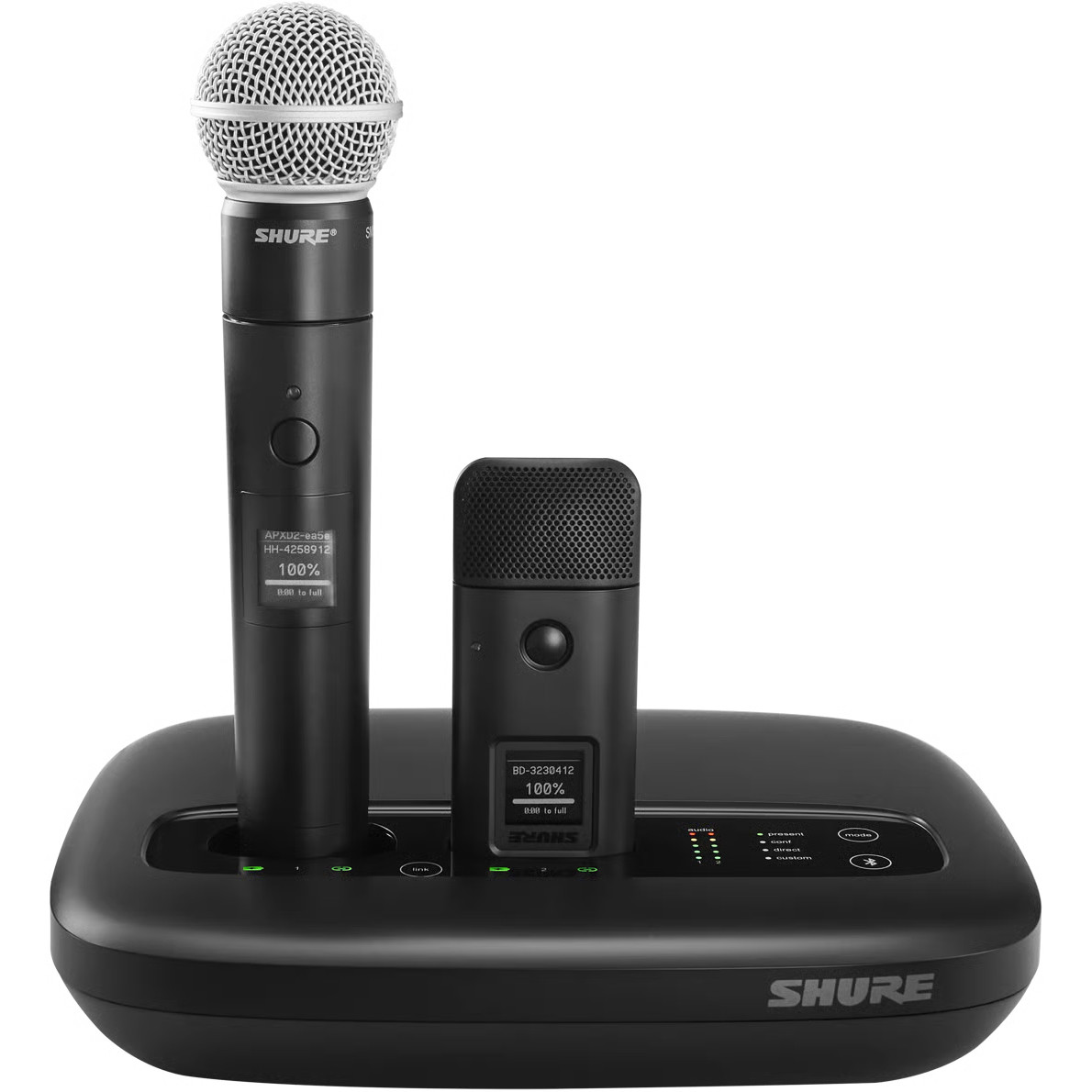

Battery Charge Time	3 hours (docked in APXD2 / NDX4/8/4G/8G)
Dimensions (H x W x D)	4.66" (118.43 mm) x 1.85" (46.99 mm) x 1.03" (26.10 mm)
Weight (with Battery)	0.25 lbs (0.12 kg)
