Public Address and Stadium Systems, ideal for 1000-1500 people gathered within an arena setting where vocal clarity and coverage are essential. Typical applications are football, baseball and soccer stadiums, race tracks and parking areas.
The Electro-Voice PA430T is a 30-watt constant-directivity paging projectors for use in any public address or paging application. The drivers employ rugged phenolic diaphragms, 1.5 inch diameter voice coils and “rim centered” ferrite magnet structures for long life and reliability under extreme operating conditions. A 12 inch connecting cable, color coded for phase, is provided for connecting to the PA430T. Included are connections for 25V, 70.7V, and 100V distributed systems and a screwdriver-operated power tap select switch. (Patent #4, 775, 766) A nominal 60° horizontal by 40° vertical coverage pattern together with a low-frequency cutoff of 350 Hz provides excellent articulation in demanding applications. The PA430T is molded from high-impact ultraviolet-inhibiting acrylic-styrene-acrylonitrile (ASA). A positive lock, super tough nylon swivel base and rear housing provides maximum mounting flexibility and ease of installation. (Patent #4,984,278) Ideal for both indoor and outdoor applications, these drivers are well suited for any installation requiring rugged, reliable performance.

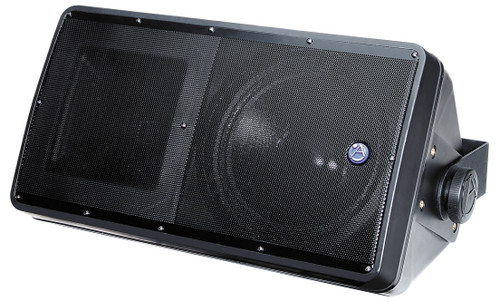

The Atlas Sound SM82T is an environment-resistant SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and 1" exit compression driver frequency device. Vocal and musical clarity is optimized by the mathematically conceived, advanced design of the Atlas Sound TRX Control WaveGuide high frequency director. This design provides smooth, even sound coverage (65°H x 65°V). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the Atlas Sound PolyGuard protection circuit. The SM82T includes an internally mounted 60 watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications and an 8Ω bypass.
The Atlas Sound AA240 is a 240 Watt six input channel mixer amplifier engineered with unique features to assist the contractor or installer in today’s commercial business audio environment. It is designed for distributed paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required.
The Shure SM48S-LC unidirectional dynamic microphone is a great performance microphone. It maintains a true cardioid pattern throughout its frequency range, ensuring high gain before feedback and rejection of off-axis sound. The tailored frequency response is ideal for lead vocals, backup vocals, and spoken word applications. A presence rise brightens mid-range performance, and a low frequency roll off controls proximity effect. The SM48S-LC includes a shock-mounted cartridge, a steel mesh grille, and an integral "pop" filter.
