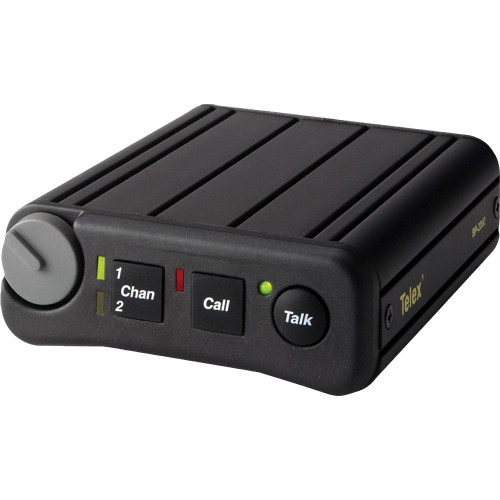

Telex BP-2002 Portable Single Channel Headset Station Beltpack with Call Button and Indicator (Discontinued)

Description

Details

The BP-2002 is an ideal beltpack that keep users connected and offers mobility as well as hands-free convenience. The power circuitry has been redesigned and reinforced to improve overall performance. For a completely portable intercom system, directly connect your belt pack to the back of an intercom power supply or master station.

Alternately, passive wall connector plates can be permanently installed at strategic locations, and the beltpacks can then be connected to these using cables. The BP-2002 is Clear-Com compatible.

Talk Button and Indicator

The Talk button activates the headset and can operate in either Hands-Free-Talk or Push-to-Talk Mode.

Channel Button and Indicators

Allows the user to select which intercom channel is active. A yellow indicator light shows the active channel.

Sidetone Control

The sidetone control adjusts your own voice level heard in the headphone.

Call Button and Indicator

The call function allows the user to send or receive signals to other user stations on the intercom channel. The user can receive call light signals as well as send signals easily.

Clear-Com Compatible

Features

Features

The Talk button activates the headset and can operate in either Hands-Free-Talk or Push-to-Talk Mode
Allows the user to select which intercom channel is active. An indicator light shows the active channel
The sidetone control adjusts your own voice level heard in the headphone
The call function allows the user to send or receive signals to other user stations on the intercom channel. The user can receive call light signals as well as send signals easily
Clear-Com Compatible

Specification

Channels	2 Channels
Color	Black
Power Requirements
Channel Supplied	24 VDC nominal, 45 to 70 mA
Local Power	24 VDC nominal(22 to 30 VDC), 45 to 70 mA
Environmental Requirements
Storage	-20°c to 80ºc; 0% to 95% humidity, noncondensing
Operating	-15ºc to 60°c; 0% to 95% humidity, noncondensing
Headset	50 to 200 ohm dynamic microphone, 150 to 600 ohm headphones
Balanced Intercom Channel
Output Level	1 Vrms nominal
Bridging Impedance	Greater than 10,000 ohm
Unbalanced Intercom Channel 1
Output Level	775 mVrms ±10%
Bridging Impedance	Greater than 10,000 ohms
Headphone Amplifier
Maximum Output	60 mW into 150 ohm
Frequency Response	200 Hz to 8 kHz with no more than 4 dB deviation
Audible Alert	1 kHz, tone
Total Harmonic Distortion	Less than 2% at 50 mW from the line
Sidetone	20 dB minimum range, adjustable
Dimensions (H x W x D)	5" (127 mm) x 3.5" (88.9 mm) x 1.8" (45.7 mm)
Weight	1.5 lbs (0.68 kg)
