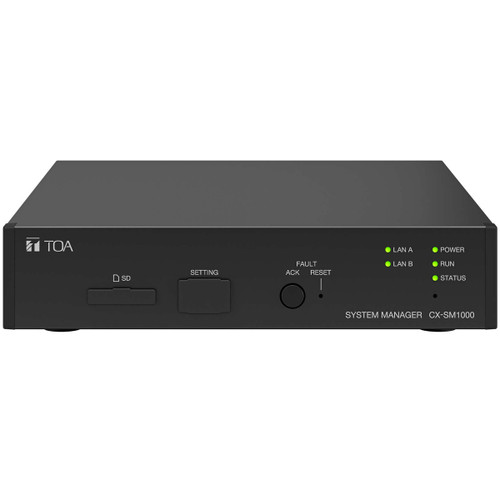

TOA CX-SM1000 System Manager

The CX-SM1000 is the central control unit for the CX-1000 series IP communication system, enabling seamless management of intercom stations, audio interfaces, amplifier units, and remote microphones. It allows system-wide conversations, broadcast control, and integration of up to 3,000 stations.

Equipped with a failure detection function and dual LAN ports for network redundancy, the CX-SM1000 ensures reliable system operation. The built-in web server allows convenient browser-based configuration, while the SD card slot supports system backup, log storage, and settings transfer.

With support for up to 15,000 I/O configurations and up to 200 audio links, the CX-SM1000 integrates easily with external devices via relay and open collector outputs. Its flexible desktop, rack, or wall-mount design and 24V DC power input with a removable terminal block make it adaptable to a wide range of installation environments.

Features

Features

Central control unit for CX-1000 IP communication system
Supports up to 3,000 connected stations
Failure detection and network redundancy for high reliability
Dual LAN ports for flexible network connection
Browser-based configuration via built-in web server
SD card slot for log storage and backup
Supports up to 15,000 I/O configurations
Manages up to 200 audio links for calls and broadcasts
Relay and open collector outputs for external device integration
Desktop, rack, or wall-mountable installation
24V DC power input with removable terminal block
Compatible with SIP, HTTP, and other standard protocols

Specification

Power Source	24V DC (Operating Range: 21.6 - 26.4V DC) or Optional AC Adapter
Current Consumption	200 mA
Power Consumption	5W
Network Interface	100Base-TX
Network Protocols	TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, IGMP, NTP, SIP, FTP, RSTP, DNS
LAN Ports	2 x RJ45
Maximum Stations Supported	Up to 3000 Devices within System
Maximum Audio Links	Up to 200 Simultaneous Links
Control Outputs	Relay Output (30V DC/1.0A) + Open Collector Output (30V DC/100 mA)
SD Card Support	SD/SDHC/SDXC for Configuration Backup and Log Storage
Installation Options	Desktop, Rack Mount, or Wall Mount (Optional Brackets Required)
Operating Temperature	0°C to +40°C (32°F to 104°F)
Operating Humidity	Up to 90% RH (Non-Condensing)
Dimensions (H x W x D)	1.74" (44.3 mm) x 8.27" (210 mm) x 10.55" (268 mm)
Weight	3.31 lbs (1.5 kg)
