| Frequency Band |
2.4 GHz (ISM band) |
| Modulation |
GFSK digital transmission |
| Range |
Up to 100 ft outside, Up to 200 ft inside |
| Multi Channel |
Up to 15 simultaneous channels (one way mode) |
| Battery Type |
2 x AAA Alkaline or NiMH |
| Power Save |
Auto Sleep Mode after 5 min of no RF signal |
| Frequency Response |
150 Hz – 11 kHz |
| S/N Ratio |
65 dB (A weighted) |
| THD |
0.45% |
| Antenna |
Internal |
| Output |
60 mW, 3.5 mm stereo jack with mono output for Headphones/Earphones |
| Controls |
Power, Volume +/-, Channel +/-, Setup, Battery Type |
| Display |
LCD shows status: Battery Level, RSSI, Group/Channel# |
| Indicators |
Red LED - blinks when charging, Green LED - stays on when charged |
| Docking Connector |
30-pin iPod Style for charging and audio out |
| Compatible Transmitter |
DLT 100 |
| Temp. Range |
32° – 122°F (0° to 50°C) |
| Chargers |
CHG 102, CHG 1012, Digi-Dock |
| Accessories |
Silicone Skin, Lanyard, Wrist Strap |
| Approvals |
FCC, Industrie Canada, RoHS, CE, WEEE, C-tick |
| Warranty |
2 years, parts & labor |
| Dimensions (H x W x D) |
3.54” (90 mm) x 2.36” (60 mm) x 0.63" (16 mm) |
| Weight |
0.1036 lbs (47 g) |
| Color |
Black and silver |
| Enclosure |
Shatter resistant PC/ABS plastic |
| Battery type |
Li Polymer with smart charge built into transceiver |
| Battery life |
Up to 14hrs talk time per charge |
| Charge time |
5hrs. TFP 045 with cable and international adapters |

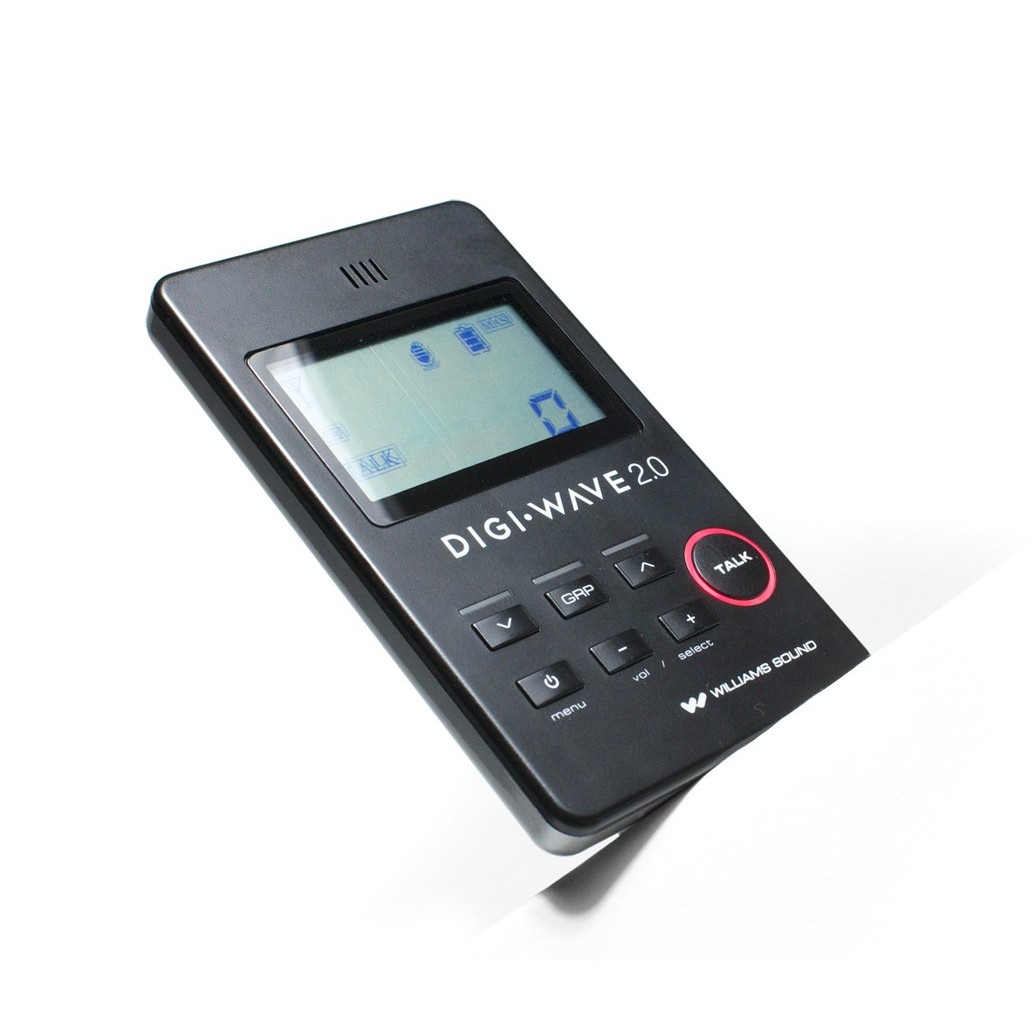

| Channels |
Up to 15 simultaneous channels, Up to 4 simultaneous groups (2 way mode) |
| Operating frequencies |
2.4GHz (ISM band) 2.402 – 2.476GHz FHSS |
| Frequency response |
150 – 11KHz |
| S/N ratio |
69dB (A weighted) |
| THD |
0.33 % |
| Microphone input |
Internal microphone and 3.5mm stereo jack |
| Audio output |
Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) |
| Range |
Up to 100ft outdoors and 200ft indoors |
| Modulation |
GFSK, binary CDMA |
| RF output |
14dBm Max |
| Security code |
87 bit encryption |
| Output |
3.5mm stereo/mono jack 30 pin charging jack |
| Side tone |
Adjustable: Off (0dB), -6dB, -12dB below volume |
| Speaker |
Internal speaker (disabled when ear jack is engaged) |
| Indicators |
LCD |
| Maximum presenters |
Two presenters at any given time |
| Approvals |
FCC, Industrie Canada, CE, C-tick, RoHS, WEEE |
| Dimensions (H x W x D) |
2.4" (62 mm) x 4.1" (103 mm) x 0.4" (11 mm) |
| Weight |
0.176 lbs (80 g) |

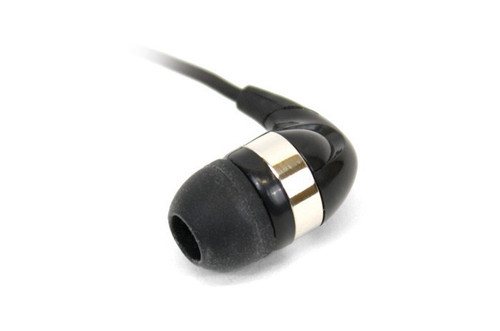

| Style |
Single, in-ear, isolation earphone |
| Plug |
3.5 mm mono |
| Cord |
39” (990.6 mm) |
| Driver Size |
10 mm |
| Nominal Impedance |
16 Ω |
| Freq. Response |
20 - 20kHz |
| Max Power Input |
5 mW |
| Sensitivity |
104 dB @ 1kHz |
| Replacement Silicone Tip |
EAR 043 (0ne pair) |
| Color |
Black |
| Plug |
3.5 mm mono |
| Cord |
39” (990.6 mm) |
| Phantom Powered |
No |
| Nominal Impedance |
1500Ω @ 1kHz |
| Operating Voltage |
1.5 - 10VDC |
| Freq. Response |
20 - 18kHz |
| Pick-Up Pattern |
Omni-direct |
| Transducer Type |
Back electret |
| Max Input Sound Level |
110dB SPL |
| Sensitivity |
-56dB ± 3dB |
| Replacement Windscreen |
WND 090 |
| Replacement Lapel Clip |
CLP 090 |
| Weight |
0.033 lbs (15 g) |
