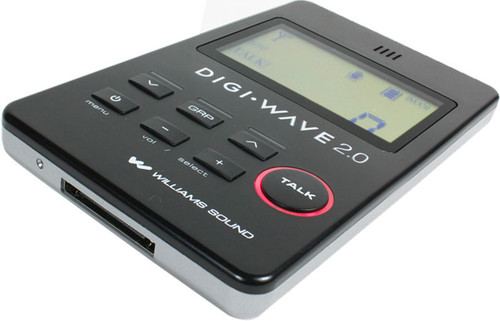

Williams Sound DWS PCS 2 Digi-Wave Personal Communication System (Discontinued)

Part #:
DWS PCS 2
Model #:
DWS PCS 2
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Williams Sound DWS PCS 2 Digi-Wave Personal Communication System is a simultaneous, two-way system that helps you hear in everyday situations -- and you can easily access two-way communication with the push of a button.

Description

The Williams Sound DWS PCS 2 Digi-Wave Personal Communication System is a simultaneous, two-way system that helps you hear in everyday situations -- and you can easily access two-way communication with the push of a button. Perfect for classrooms, Digi-Wave maximizes a student’s ability to hear, ensures that the teacher’s message is heard clearly, and provides the option for student Q&A. Add an optional DLT 100 2.0 and MIC 044 2P headset microphone to your DWS PCS 2 to create the ideal team-teach scenario. Two teachers can speak simultaneously and hear one another. The student can hear both teachers and has push-to-talk capability.

Add an optional DLT 100 2.0 to your DWS PCS 2 to enhance conference/meeting interaction. Place a DLT 100 2.0 on either end of a conference table. (The DLT 100 2.0 features a built-in microphone and speaker; so, additional headsets for other meeting attendees are unnecessary.) The listener (with a DLT 100 2.0) can hear other meeting attendees and has push-to-talk capability.

Features

  • 2-way, simultaneous communication
  • Both parties on constant talk; no need to keep pushing button
  • Convenient dock charger
  • Crystal-clear audio
  • Multiple channels available
  • Patented, interference-reduction technology provides seamless, secure operation
  • 2.4 GHz operation works well in RF-saturated environments
  • Range of up to 100 feet outdoors/200 feet indoors (depending on environmental conditions).
  • Legal for use in most countries
  • 2-year-warranty

Specifications

Color Black and silver
Enclosure Shatter resistant PC/ABS plastic
Battery type Li Polymer with smart charge built into transceiver
Battery life Up to 14hrs talk time per charge
Charge time 5hrs. TFP 045 with cable and international adapters, Optional two-bay charger CHG 102
Channels Up to 15 simultaneous channels (Interpretation mode), Up to 4 simultaneous groups (2 way mode)
Operating frequencies 2.4GHz (ISM band) 2.402 – 2.476GHz FHSS
Frequency response 150 – 11KHz
S/N ratio 69dB (A weighted)
THD 0.33 %
Microphone input Internal microphone (disabled when MIC jack engaged)
Microphone input 3.5mm stereo jack (tip/sleeve) with electret microphone bias, adjustable gain with 63dB range
Audio output Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041)
Audio output Internal speaker (disabled when ear jack engaged)
Audio output 16mW @ 33Ω
Range Up to 100ft outdoors and 200ft indoors
Modulation GFSK, binary CDMA
RF output 14dBm Max
Security code 87 bit encryption
Controls Front push buttons for volume up/down, quick group select, menu access and selection
Controls MIC on/off, power on/off, tone control, side-tone adjustment, SLOC access and Secure Key access
Controls System reset button (rear of unit)
Output 3.5mm stereo/mono jack 30 pin charging jack
Side tone Adjustable: Off (0dB), -6dB, -12dB below volume
Speaker Internal speaker (disabled when ear jack is engaged)
Indicators LCD (Group, channel, volume level, battery status, mode, signal strength)
LED’s (charge status, voting) Red LED around talk button when enabled. Amber LED signifying voting feature activated
Maximum presenters Two presenters at any given time
Dimensions (H x W x D) 4.1" (103 mm) x 2.4" (62 mm) x 0.4" (11 mm)
Weight 80g (0.175 lbs) including battery
Color Black
Plug 2 x 3.5mm
Cord 39"
Phantom Powered No
Nominal Impedance 32Ω
Freq. Response 150 - 18kHz
Pick-Up Pattern Cardiod
Transducer Type Electret Cond
Sensitivity 105dB EAR
Replacement Windscreen WND 008
Replacement Earpad EAR 035
Weight 0.163 lbs (74 g)
Power input 110—240V AC @ 50-60 Hz
Power output 5 volts DC @ 1.2 amps
Cable length 6’ (1.8 meters)
Dimensions (H x W x D) 9.25" (234.95 mm) x 6.25" (158.75 mm) x 2" (50.8 mm)
Weight .75 lbs (340.1 g)
Dimensions (H x W x D) 4.375" (111.125 mm) x 2.75" (69.85 mm) x 0.5" (12.7 mm)
Weight .11 lbs (49.8 g)
Dimensions (H x W x D) 9.25" (234.95 mm) x 8" (203.2 mm) x 3" (76.2 mm)
Weight .70 lbs (317.51 g)

In The Box

  • (2) DLT 100 2.0 transceivers
  • (2) MIC 044-2P headset microphones
  • (1) CHG 102 two-bay charger
  • (2) CCS 044 silicone skins
  • (1) CCS 043 system carry case
