The IR ME1 D IR+ infrared assistive listening system is a professional solution for delivering clear, secure audio in venues requiring assistive listening. Featuring a Dante-enabled IR M1 modulator with integrated Wi-Fi server, this system supports both infrared transmission and networked audio distribution for maximum flexibility.
Paired with the IR E4 emitter, the system provides reliable infrared coverage, making it ideal for environments where audio privacy is essential, such as courtrooms, theaters, and conference rooms. Users can access audio through dedicated receivers or stream directly to personal smart devices via Wi-Fi, expanding accessibility and convenience.
Designed for seamless integration into professional AV systems, the IR ME1 D includes an ADA wall plaque to promote compliance and inform users of available assistive listening services. With its combination of Dante connectivity, infrared security, and modern streaming capability, this system offers a versatile and scalable solution for accessible audio.
| IR M1 D Modulator | |
|---|---|
| Power Supply | 110-240 VAC input, +48 VDC output (international desktop supply) |
| Power Consumption | 36W |
| Audio Inputs | 2x XLR/TRS combo (mic/line, balanced/unbalanced, phantom power selectable) |
| Dante Support | Integrated Dante audio networking |
| Frequency Response | 40 Hz - 16 kHz (+1 dB, -3 dB) |
| Signal-to-Noise Ratio | 67 dB (typical) |
| Carrier Frequency | Selectable: 2.3/2.8 MHz or 3.3/3.8 MHz |
| Emitter Outputs | 4x RJ-45 (CAT5e) for power, control, and IR signal |
| Dimensions (H x W x D) | 1.75" (44.45 mm) x 19" (483 mm) x 8.2" (208 mm) |
| Weight | 5.2 lbs (2.4 kg) |

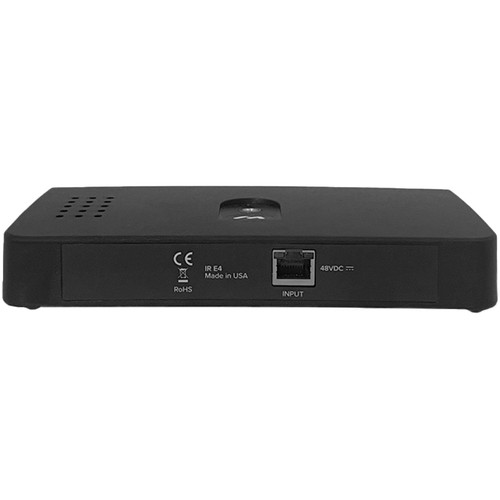

| IR E4 Emitter | |
| Power | 48 VDC supplied by IR M1 via CAT 5e cable |
| Coverage Area | Up to 18,000 (1670 m) square feet in single channel mode |
| Connectivity | +48 VDC Power, RS-485 communication, and Baseband signals for IR transmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1 |
| Operating Requirements | 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere |
| Approvals | CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI |
| Color | Black |
| Dimensions (H x W x D) | 1.4" (35.56 mm) x 7.5" (190.5 mm) x 3.6" (91.44 mm) |
| Weight | 0.8 lbs (0.36 kg) |
