The IR ME1 IR+ infrared assistive listening system is a flexible and secure solution for delivering clear audio in environments that require assistive listening. Combining infrared transmission with integrated Wi-Fi streaming, this system supports both dedicated receivers and personal smart devices, expanding accessibility for users.
At the core of the system is the IR M1 modulator with a built-in Wi-Fi server, which processes and distributes audio signals efficiently. Paired with the IR E4 emitter, the system delivers reliable infrared coverage, making it ideal for venues where privacy and controlled audio distribution are essential, such as courtrooms, theaters, and conference spaces.
Designed for professional installation, the IR ME1 system also includes an ADA wall plaque to promote accessibility compliance and inform users of available assistive listening services. This streamlined combo system offers an easy-to-deploy solution for enhancing audio clarity and inclusivity in a wide range of applications.
| IR M1 Modulator | |
|---|---|
| Power Supply | 110-240 VAC input, +48 VDC output (international desktop supply) |
| Power Consumption | 36W |
| Audio Inputs | 2x XLR/TRS combo (mic/line, balanced/unbalanced, phantom power selectable) |
| Frequency Response | 40 Hz - 16 kHz (+1 dB, -3 dB) |
| Signal-to-Noise Ratio | 67 dB (typical) |
| Carrier Frequency | Selectable: 2.3/2.8 MHz or 3.3/3.8 MHz |
| Emitter Outputs | 4x RJ-45 (CAT5e) for power, control, and IR signal |
| Dimensions (H x W x D) | 1.75" (44.45 mm) x 19" (483 mm) x 8.2" (208 mm) |
| Weight | 5.2 lbs (2.4 kg) |

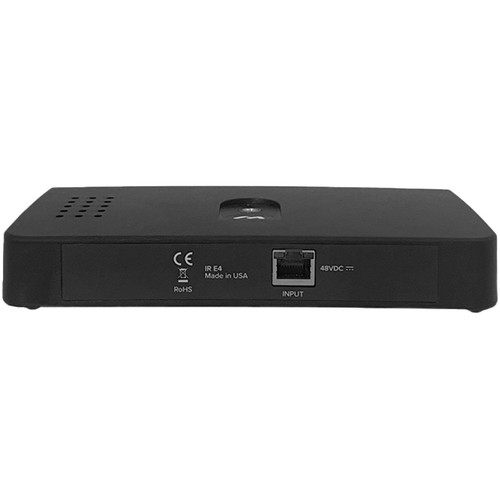

| IR E4 Emitter | |
| Power | 48 VDC supplied by IR M1 via CAT 5e cable |
| Coverage Area | Up to 18,000 (1670 m) square feet in single channel mode |
| Connectivity | +48 VDC Power, RS-485 communication, and Baseband signals for IR transmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1 |
| Operating Requirements | 0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere |
| Approvals | CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI |
| Color | Black |
| Dimensions (H x W x D) | 1.4" (35.56 mm) x 7.5" (190.5 mm) x 3.6" (91.44 mm) |
| Weight | 0.8 lbs (0.36 kg) |
