The IR+ Control Center provides audio over Wi-Fi and Infrared. Infrared is best used for assistive audio in large spaces or for secured audio transmission within a room. Connect the IR M1 to a Wi-Fi multicast router or in-house network you can stream audio over Wi-Fi to the Williams AV WaveCAST app (available in the iOS app store or Google Play store).
The IR+ Control Center features a distributed infrared emitter array architecture allowing up to four emitters either stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies, or other obscured venue locations.

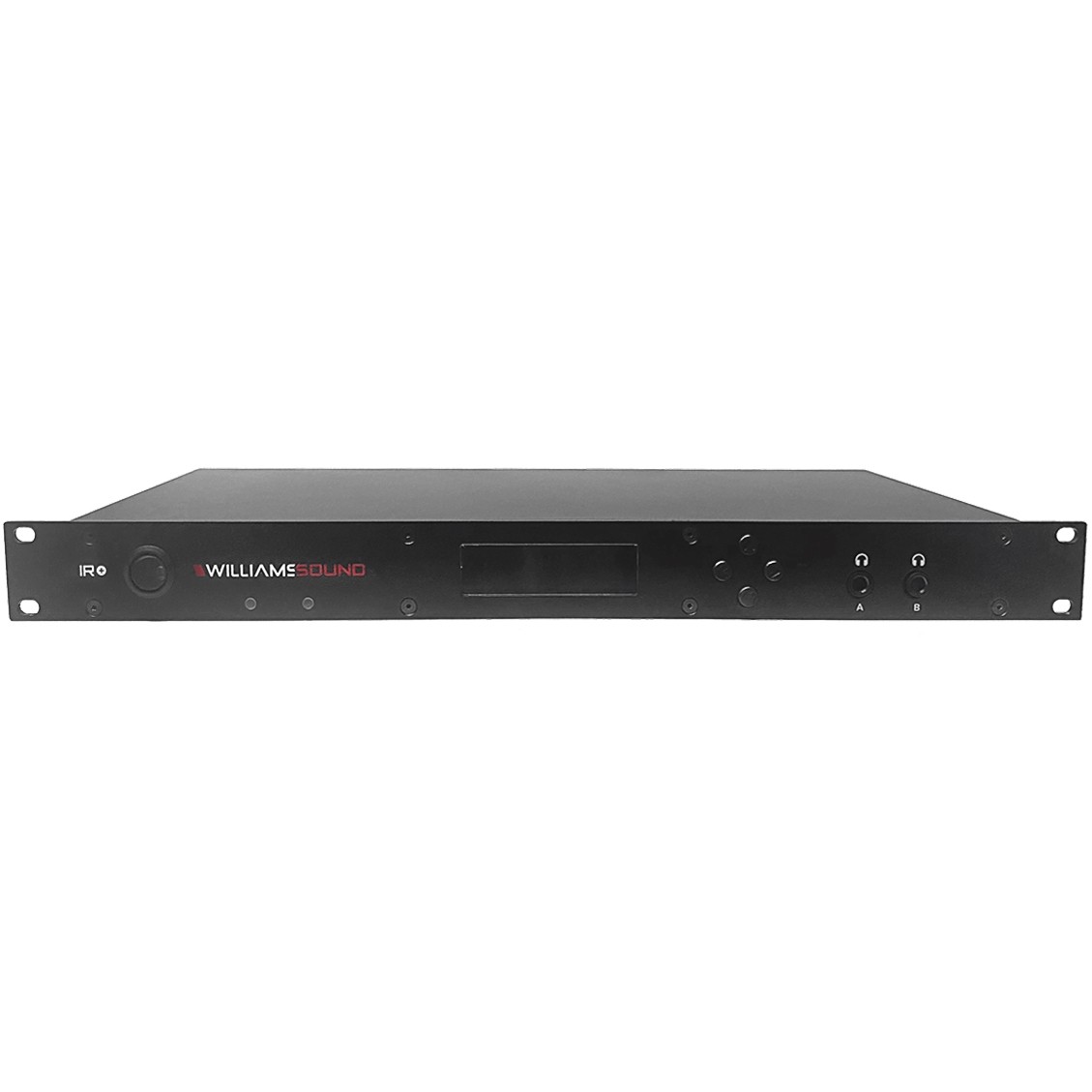

The rack-mounted or remotely located IR M1 Control Center comes standard with support for up to four IR emitters. Each emitter runs back to the modulator via a CAT5e cable, providing the audio and power needed to support the remote emitter. Each emitter has a coverage area of 18,000 sq. ft.
*Note: Firmware updates are currently unable to be completed on Mac computers.
| Power Supply | International Desktop Supply Input: 36 W, 110-240 VAC 50-60 Hz Output: +48VDC, 0.75A center-positive |
|---|---|
| Power Switch | Rocker switch with LED |
| Modulation | FM Wideband, +50kHz deviation, 50uS pre-emphasis |
| Carrier Frequency | Selectable, 2.3/2.8 or 3.3/3.8MHz |
| Signal to Noise Ratio | 67 dB (typical) |
| Frequency Response | 40 to 16,000Hz, +1 dB, -3dB, electrical response |
| Total Harmonic Distortion | Less than 2%, electrical response |
| Audio Processor Functions | DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control |
| Audio Input | (2x) Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power |
| Dante | Optional |
| Headphone Output | (2) 1/4" headphone jacks on front panel for monitoring CH A and CH B audio inputs |
| Emitter Output Jack | Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission |
| Approvals | CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI |
| Dimensions (H x W x D) | 1.75" (44.45 mm) x 19" (483 mm) x 8.2" (208 mm) |
| Weight | 5.2 lbs (2.4 kg) |
