Williams AV IR SY12 D IR Plus Complete Infrared Assistive Listening System

Williams AV IR SY12 D IR+ Complete Infrared Assistive Listening System with Dante, IR M1 D Modulator, Two IR E4 Emitters and 5 IR RX20 Receivers

By Williams AV

Williams AV IR SY12 D IR+ Complete Infrared Assistive Listening System with Dante, IR M1 D Modulator, Two IR E4 Emitters and 5 IR RX20 Receivers

Name: Williams AV IR SY12 D IR+ Complete Infrared Assistive Listening System with Dante, IR M1 D Modulator, Two IR E4 Emitters and 5 IR RX20 Receivers
Brand: Williams AV
SKU: WILLIAMS-IR SY12 D
Price: 6350 USD
Availability: InStock

Write a Review

Part #:

IR SY12 D

Model #:

IR SY12 D

Current Stock:

Availability: 2+ Week Lead Time

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Williams AV IR SY12 D IR+ complete infrared assistive listening system with Dante includes an IR M1 D modulator, two IR E4 emitters, and five IR RX20 receivers. It delivers secure, high-quality audio for assistive listening in professional and ADA-compliant environments.

Description

Williams AV IR SY12 D IR Plus Complete Infrared Assistive Listening System with Dante

The IR SY12 D IR+ complete infrared assistive listening system with Dante is a comprehensive solution designed to deliver secure, high-quality audio in assistive listening applications. Ideal for venues requiring privacy and reliability, this system uses infrared technology to transmit audio clearly without signal spillover beyond the room.

At the core of the system is the IR M1 D IR+ modulator with built-in Wi-Fi server and Dante input, supporting two channels of audio for flexible integration into modern networked audio environments. The included IR E4 emitters ensure wide and even coverage, while the IR RX20 receivers provide clear, intelligible sound for end users.

This complete package includes five receivers, two neckloops for hearing aid compatibility, a five-bay charger, a metal linking bar, and an ADA wall plaque. Designed for easy deployment, the IR SY12 D system is ideal for theaters, courtrooms, houses of worship, and conference spaces requiring secure and compliant assistive listening solutions.

Features

Complete IR+ assistive listening system with Dante network audio support
Includes IR M1 D modulator with Wi-Fi server and 2-channel Dante input
Two IR E4 infrared emitters for wide and reliable coverage
Five IR RX20 receivers for clear, high-quality audio delivery
Secure infrared transmission prevents signal spillover outside the room
Includes two NKL 001 neckloops for hearing aid compatibility
CHG 520 five-bay charger for convenient receiver management
Metal linking bar included for emitter installation
ADA wall plaque included for compliance and accessibility
Ideal for theaters, courtrooms, conference rooms, and worship spaces

Specifications

IR M1 D Modulator
Power Supply	110-240 VAC input, +48 VDC output (international desktop supply)
Power Consumption	36W
Audio Inputs	2x XLR/TRS combo (mic/line, balanced/unbalanced, phantom power selectable)
Frequency Response	40 Hz - 16 kHz (+1 dB, -3 dB)
Dante Support	Integrated Dante audio networking
Signal-to-Noise Ratio	67 dB (typical)
Dimensions (H x W x D)	1.75" (44.45 mm) x 19" (483 mm) x 8.2" (208 mm)
Weight	5.2 lbs (2.4 kg)
IR E4 Emitter
Power	48 VDC supplied by IR M1 via CAT 5e cable
Coverage Area	Up to 18,000 (1670 m) square feet in single channel mode
Connectivity	+48 VDC Power, RS-485 communication, and Baseband signals for IR transmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1
Operating Requirements	0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Dimensions (H x W x D)	1.4" (35.56 mm) x 7.5" (190.5 mm) x 3.6" (91.44 mm)
Weight	0.8 lbs (0.36 kg)
WIR RX22
Battery Type	2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
Battery Drain	25 mA, nominal
Frequency Response	25 Hz to 16 KHz, +1 dB, -3 dB, electrical response
Total Harmonic Distortion	Less than 1%, electrical response
Controls	ON/OFF/VOLUME: combination thumbwheel knob Channel Selector: four-position rotary switch
Dimensions (H x W x L)	1.2" (30.4 mm) x 3.86" (72.4 mm) x 4.1" (104.1 mm)
Weight	0.28 lbs (0.13 kg)
CHG 520 Charger
Power Supply Input	120 VAC
Power Supply	100-240V/5 VDC
Unit Capacity	5 Units
Indicators	Individual Charging Indicators: Red LEDs
Approvals	WEEE, RoHS, CE, FCC, CANADA, RCM, UK CA
Dimensions (H x W x D)	1.5" (38.1 mm) x 6.25" (158.8 mm) x 12" (304.8 mm)
Weight	0.85 lbs (0.39 kg)

DOCUMENTS

System Includes

(1) IR M1 D Rack Mounter Infrared Modulator with Dante
(2) IR E4 Wall-Mounted IR Emitters

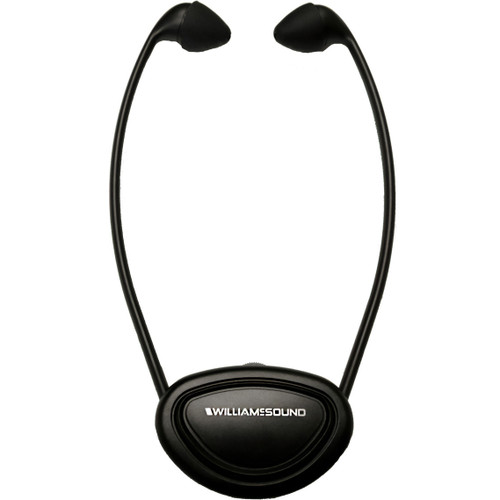

(5) IR RX20 SoundPlus Infrared Receiver Headset

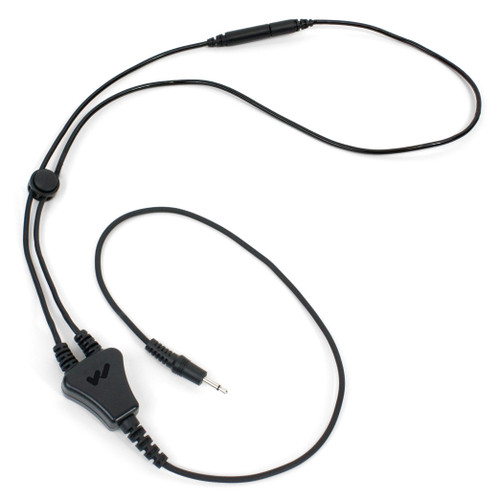

(2) NKL 001 Neckloops
(1) CHG 520 5-Bay Charger
(1) MLB 003 Linking Bar for Dual Emitters

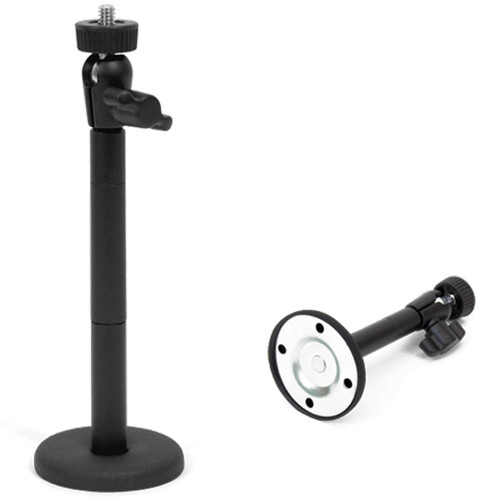

(2) BKT 024 Wall-Mount for Dual Emitters

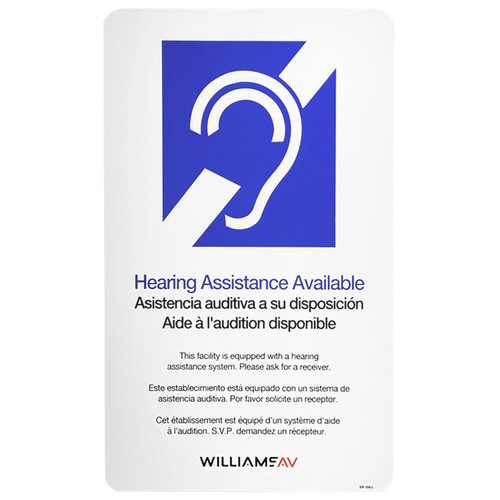

(1) IDP 008 ADA Signage
