Sound engineers can now manage multiple live mics without continually riding individual faders. The Dugan-MY16 automatically detects the active mics and makes fast, transparent cross-fades without the distracting sonic artifacts common to noise gates. It tracks unscripted dialogue perfectly and maintains consistent system gain for up to 16 open mics. With the Dugan-MY16, cueing mistakes and late fade-ups are a thing of the past.
| Standard Operating Mode | 16 channels of Dugan mixing at 44.1 or 48 kHz ADAT connectors link multiple Dugan units |
|---|---|
| High-rate Operating Mode | 8 channels of Dugan mixing at 88.2 or 96 kHz ADAT connectors link multiple Dugan units |
| Shared Operating Mode | 8 channels of Dugan mixing and 8 channels of general purpose ADAT I/O |
| Digital I/O | ADAT optical, 24 bit, 44.1/48 kHz (Shared mode only) |
| Gain | Unity |
| Audio Latency | 0.2ms |
| Optical Linking | Up to 8 units may be linked in a ring; links with Models D-2, D-3 , E, E-1 and Dugan-MY16 |
| Connectors | 10/100 BASE T: RJ-45 Linking and Digital I/O: ADAT optical |

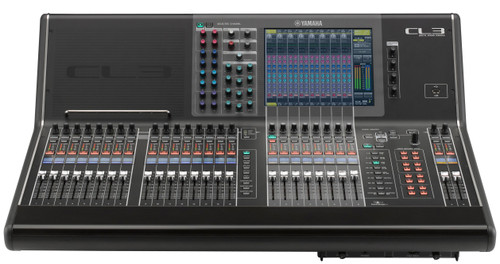

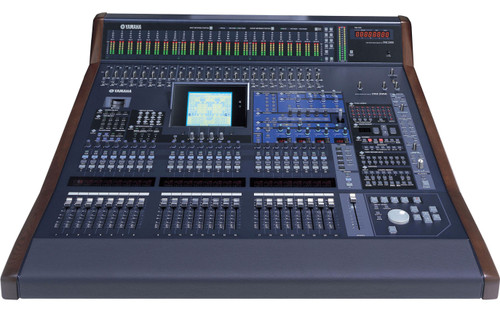

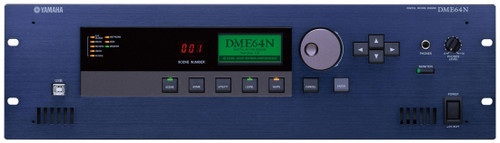

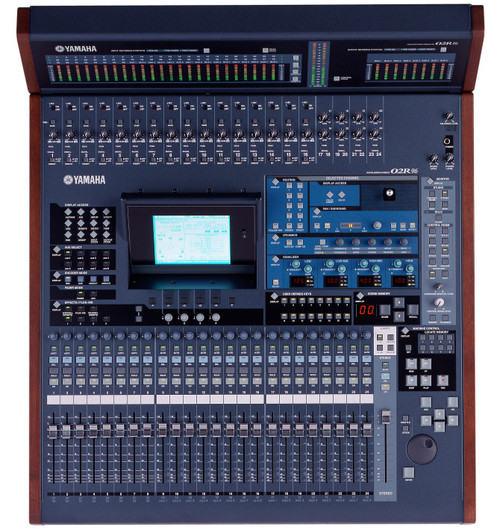

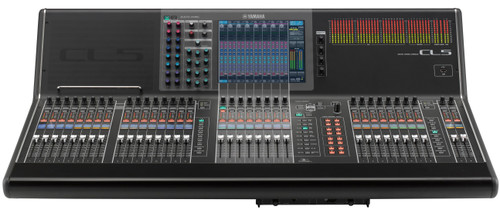

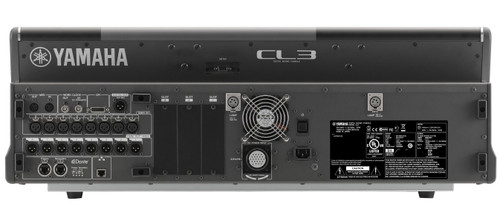

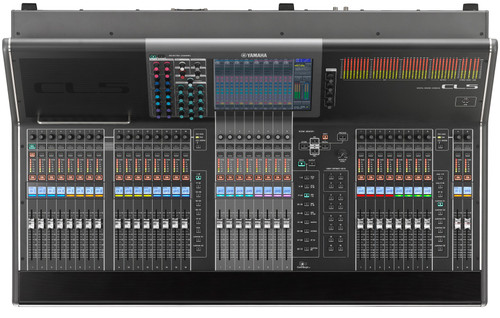

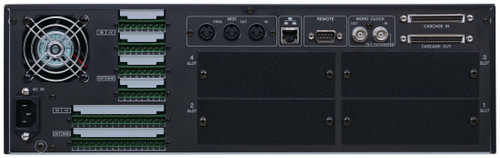

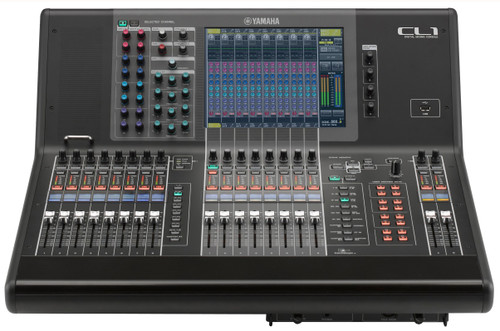

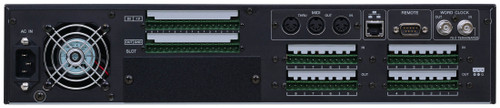

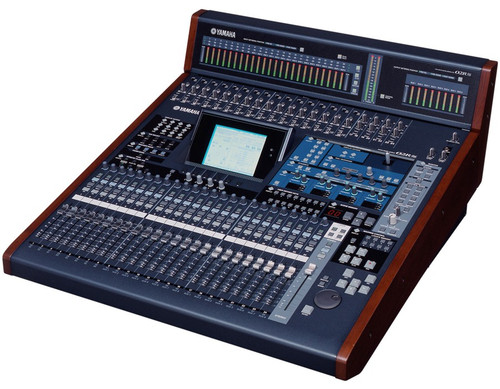

| Compatible Yamaha Mixers | PM5D/PM5D-RH, DSP5D, M7CL, MTX5-D, LS9, DM2000, DM1000, 02R96, 01V96/01V96i, DME64N, DME24N, CL1, CL3, CL5 |
| Dimensions (H x W x D) | 1.57" (39.88 mm) x 4.72" (119.89 mm) x 6.91" (175.51 mm) |
| Weight | 5.6 oz (160 g) |
| Shipping Weight | 1 lb 5 oz (0.6 kg ) |
