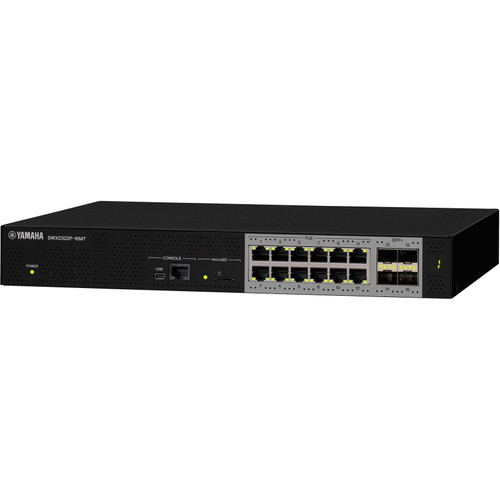

Yamaha SWX2322P-16MT 16-Port Multi-Gigabit Intelligent Network Switch

The SWX2322P-16MT is a high-performance L2 Intelligent Multi-Gigabit network switch designed for professional audio/video, enterprise, and industrial networks. With 12 multi-gigabit ports supporting 100M/1G/2.5G/5G/10G and 4 SFP+ ports, it provides flexible, high-speed connectivity for diverse network devices.

Equipped with PoE++ capabilities, the SWX2322P-16MT supplies up to 90W per port (total 250W), making it ideal for powering high-demand devices such as access points, cameras, and audio/video equipment. A built-in RADIUS server ensures advanced network security, while PTPv2 Transparent Clock (TC) guarantees precise timing for latency-sensitive applications.

Seamlessly compatible with Yamaha LAN Monitor, the switch allows centralized monitoring and management of your network. Optimized for Dante and other high-quality audio/video systems, this switch ensures reliable transmission and low-latency performance, making it perfect for backbone networks, concert halls, and professional installations.

Features

Features

16-port Intelligent L2 Multi-Gigabit network switch with PoE++
12 multi-gigabit ports (100M/1G/2.5G/5G/10G) + 4 SFP+ ports
PoE++ delivering up to 90W per port, total 250W budget
Built-in RADIUS server for advanced network security
Supports PTPv2 Transparent Clock (TC) for precise timing
Compatible with the Yamaha LAN Monitor for centralized management
Ideal for high-speed audio/video, enterprise, and industrial networks
Optimized for Dante and other low-latency media systems

Specification

LAN Ports	Standard: IEEE802.3 (100BASE-TX/1000BASE-T/2.5GBASE-T/5GBASE-T/10GBASE-T) Number of Ports: 12 Communication Mode: Auto negotiation Connector Type: RJ-45 Polarity: Automatic detection of straight/cross, or fixed at straight
SFP+ Ports	Standard: IEEE 802.3z (1000BASE-SX/1000BASE-LX), IEEE 802.3ae (10GBASE-SR/10GBASE-LR) Number of Ports: 4
Console Ports	Standard: RS-232C, USB 2.0 Connector Type: RJ-45, USB mini-B (5-pin) Data Transmission Speed: 9600 (default value)/19200/38400/57600/115200 bit/s
Performance	Switching Bandwidth: 320 Gbit/s Forwarding Rate: 238.10 Mpps Flame Buffer: 3 MB
Ports Available for PoE Power Supply	12 ports (1 - 12)
PoE Standards	IEEE802.3bt
Power Supply System	Alternative A
Maximum Power Supply	Per Port: 90W, All Ports: 250W
microSD Slot	Standard: microSD/microSDHC File System: FAT/FAT32 Number of Slots: 1
Indicators	POWER, microSD, STACK ID, LAN port (LINK/ACT, SPEED), SFP+ port (LINK/ACT, SPEED)
MAC Address	Indicated in product label on top panel of unit
Number of Fans	3
Operating Environment	Ambient temperature: 0 - 50 °C, Ambient humidity: 15 - 80 % (non-condensing)
Storage Environment	Ambient temperature: -20-60˚C, Ambient humidity 10–90% (non-condensing)
Power Supply Voltage, Frequency	AC100 - 240V, 50/60 Hz
Maximum Power Consumption	385W
Accessories	Manual (Read This First), Power cord, Power cord clamp, Dust covers, Legs, 19-inch rack mount hardware, Wall mount hardware and Screws
Dimensions (H x W x D)	1.73" (44 mm) x 13" (330 mm) x 9.8" (250 mm)
Weight	6.39 lbs (2.9 kg)
