Developed from Yamaha's successful VXC8 full-range ceiling speaker, the VXC8S is the first ceiling subwoofer in the VXC range. Designed for background music playback, its band-pass type structure, with a frequency response of 44Hz - 280Hz.

Description

Yamaha VXC8S 8" In-Ceiling Subwoofer

Developed from Yamaha's successful VXC8 full-range ceiling speaker, the VXC8S is the first ceiling subwoofer in the VXC range. Designed for background music playback, its band-pass type structure, with a frequency response of 44Hz - 280Hz, sensitivity of 88db SPL and power Lo-Z: PGM 200W, Hi-Z: 3.8W to 60W in 4/5 steps make it the ideal solution for situations like retail stores and larger restaurants where additional low frequencies are needed.

Measuring 12.8" wide by 5.98" deep, ease of installation is optimized with features including anti-drop tab, carrying band, magnet catch grille and black or white (paintable) color options.

Features
  • Sound and size ideally matched to the VXS and VXC series
  • Band-pass design ensures smooth, distortion-free low-frequency extension

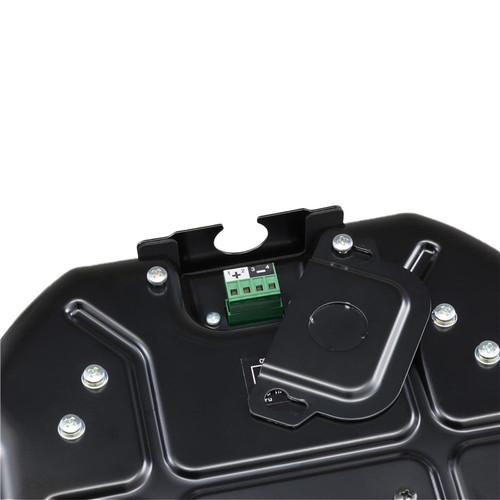

  • Direct support for low-impedance or high-impedance connections
  • Built-in carrying band increases safety during installation

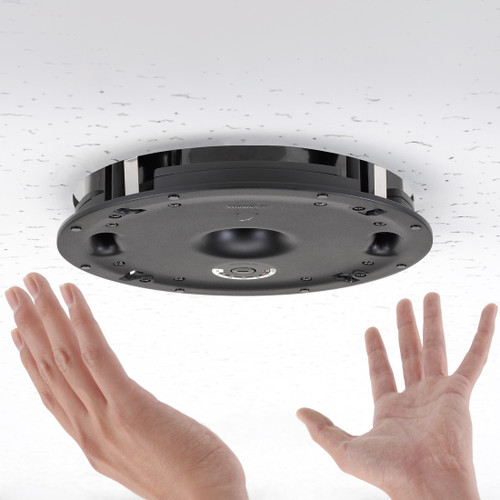

  • Anti-drop tab mechanism provide secure temporary positioning during installation
  • Double-threaded speaker clamp screws for speedy tightening
  • Paintable grilles with magnetic catches
  • Black and white versions available
  • 19.2 lbs (8.7 kg), Ø324 x D314 mm (Ø12-13/16" x D12-23/64")
  • AB-C8S (sold separately) is required to secure safe installation of VXC8S

Specifications
Frequency Range 44Hz - 280Hz
Driver 8"
Lo-Z PGM 200W
Hi-Z 3.8W to 60W in 4/5 steps
Nominal impedance 8Ω
Transformer Taps
70V 60W, 30W, 15W, 7.5W, 3.8W
100V 60W, 30W, 15W, 7.5W
Sensitivity 88db SPL
Finish Black, White
Dimensions (Dia x D) 12.80" 325 mm x 12.40" (315 mm)
