The Yamaha VXC3FW is a 3.5" full-range low-profile ceiling speaker pair in white with 140° coverage, engineered for superior BGM reproduction, flexible impedance options, and easy installation with paintable grilles and carrying bands.

Description

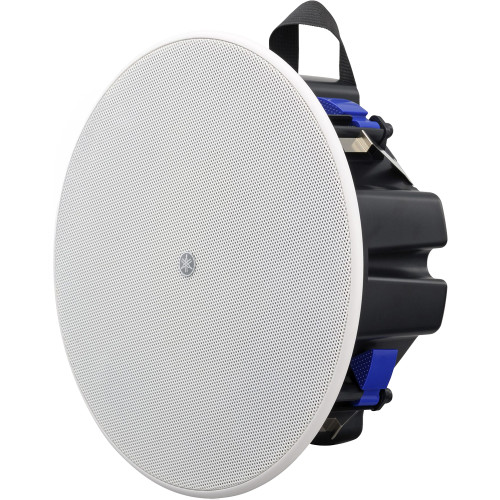

Yamaha VXC3FW 3.5-Inch Full-Range Low-Profile White Ceiling Speakers

The VXC3FW 3.5" ceiling speakers deliver exceptional background music (BGM) performance in a sleek, clean white, low-profile design. Designed for commercial and residential spaces, these speakers provide wide 140° coverage, ensuring clear and consistent sound throughout the listening area. Their optimized bass-reflex tuning produces a firm, tight low-end, while the full-range speaker unit reproduces music with clarity and precision.

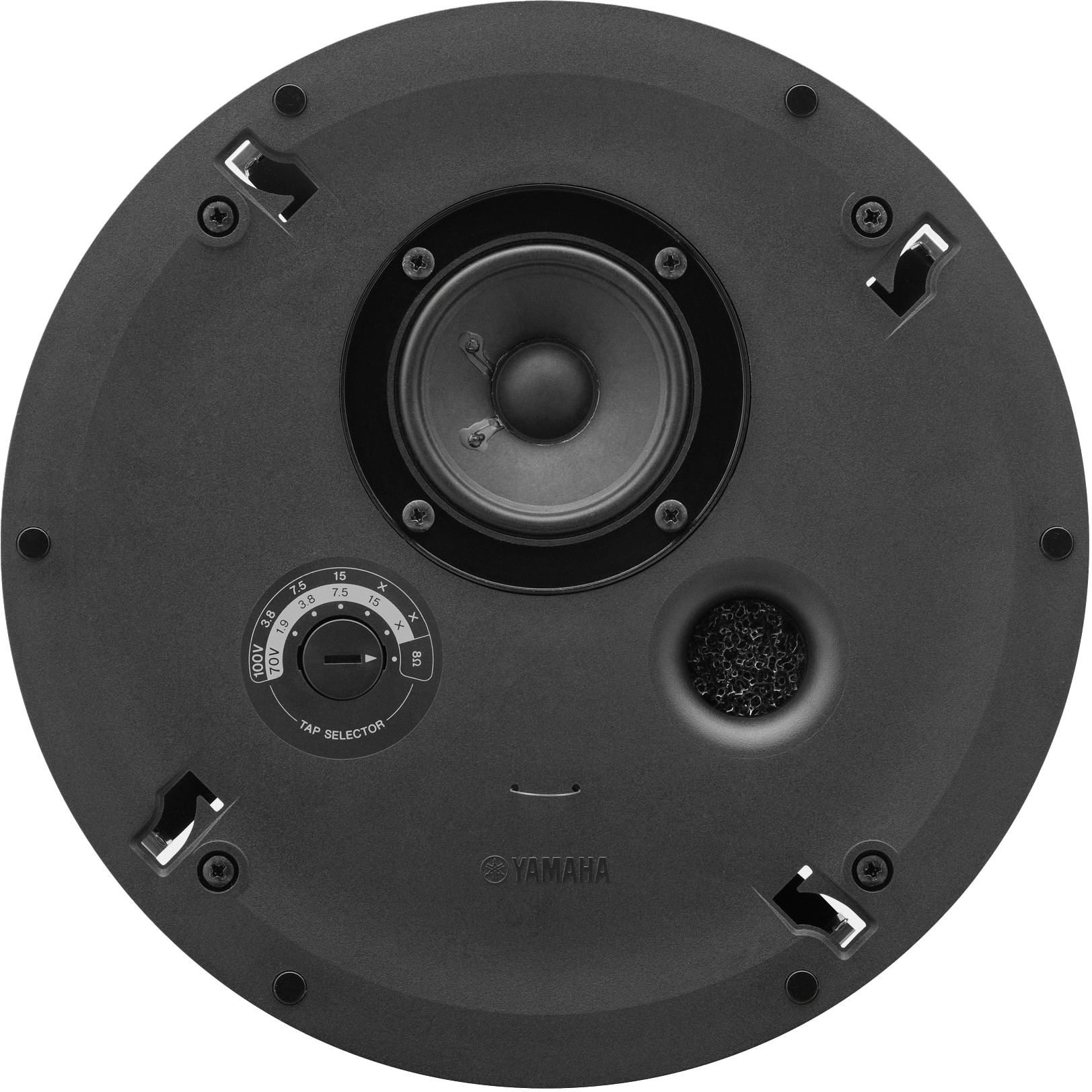

Installation is fast and secure with features like anti-drop tabs, double-threaded clamp screws, and a built-in carrying band for safe handling. The speakers support both low-impedance and high-impedance operation, selectable via a simple tap switch on the baffle, offering flexibility for various audio setups. The low-profile design allows installation in tight ceiling spaces without compromising sound quality.

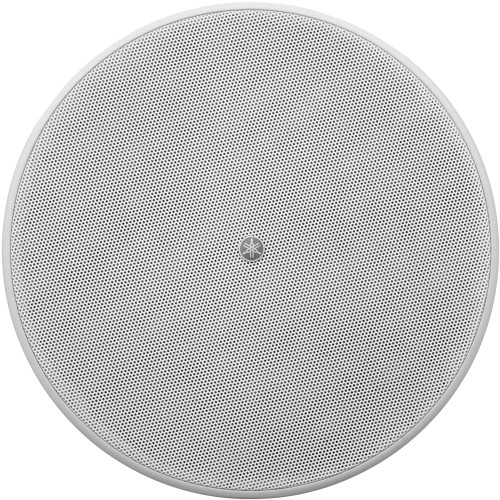

The VXC3FW speakers come complete with paintable grilles and tile rails, enabling seamless integration with interior decor. Overload protection circuits safeguard speaker components, ensuring long-term reliability, while the white finish adds a clean, modern look ideal for any environment.

Features

  • 3.5" full-range low-profile ceiling speakers for superior music reproduction
  • Wide 140° coverage for consistent audio across rooms or open spaces
  • Optimized bass-reflex design for firm, tight low-end performance
  • Supports low-impedance and high-impedance connections via selectable tap switch
  • Anti-drop tab mechanism provides secure temporary positioning during installation
  • Built-in carrying band increases safety and convenience when handling multiple speakers
  • Double-threaded clamp screws for fast and secure mounting
  • Comes with paintable grilles and tile rails for flexible design integration
  • Overload protection circuit safeguards speaker components
  • Sleek white finish blends seamlessly with ceilings

Specifications

System Type Full-range, Bass-reflex
Components 3.5" full-range
Frequency Range (-10 dB) 71 Hz - 20 kHz
Coverage Angle (Horizontal x Vertical) 140° conical
Nominal Impedance
Transformer Taps 70V: 15W, 7.5W, 3.8W, 1.9W
100V: 15W, 7.5W, 3.8W
Power Rating NOISE: 20W, PGM: 40W, MAX: 80W
Sensitivity (1W, 1m) 87 dB SPL
Maximum SPL (Calculated, 1m) 106 dB SPL

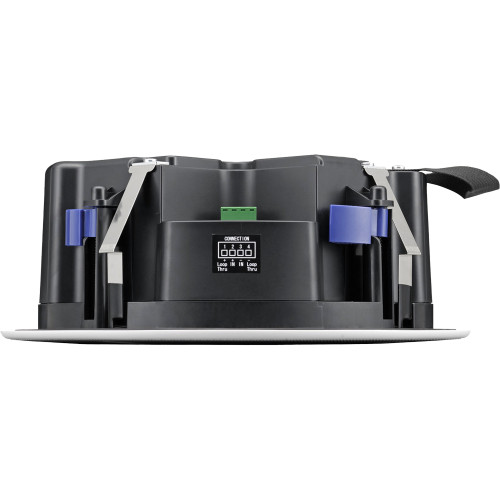

Connectors 1 x Euroblock (4 pin) (input: +/-, loop-thru: +/-)
Color White
Packaging Pair
Certificate UL1480, NFPA70, CE, EAC, RoHS
Cutout Size 9.8" (248.92 mm)
Dimensions (Dia x D) 11.22" (285 mm) x 4.4" (112 mm)
Weight 19.84 lbs (9 kg)
