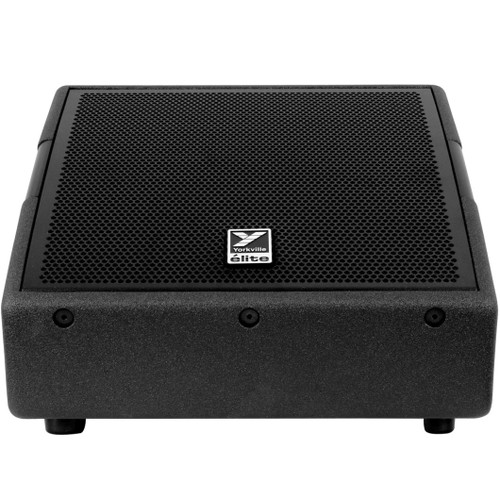

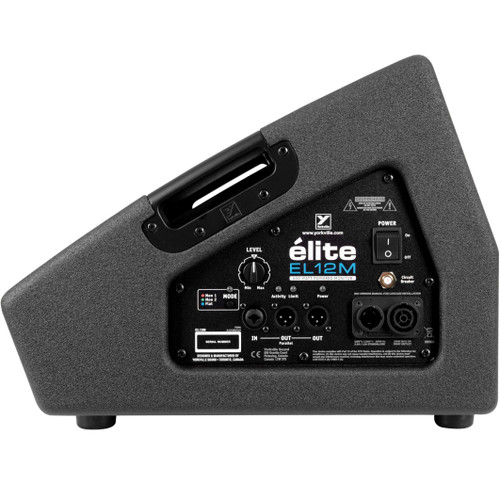

Yorkville EL12M Elite Series 12" 1200W Powered Stage Monitor

Part #:
EL12M
Model #:
EL12M
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Yorkville EL12M Elite Series is a 12" powered stage monitor delivering 1200W peak power with a coaxial design for clear, accurate monitoring. Featuring selectable voicing modes, onboard limiting, and rugged birch plywood construction, it is built for professional stage performance.

Description

Yorkville EL12M 12-Inch Powered Stage Monitor

The EL12M Elite Series is Yorkville's first dedicated powered stage monitor, designed to deliver precision, clarity, and power for professional performers. Equipped with a 12" coaxial woofer and 1" high-frequency driver, it provides coherent, high-output monitoring with excellent vocal intelligibility and instrument detail. With 1200 watts of peak power, the EL12M ensures reliable performance even in demanding live environments.

Engineered for versatility, the EL12M features three selectable voicing modes, including vocal-optimized settings and a flat response mode ideal for instruments, electronic drums, and FRFR applications for amp modelers. Its onboard limiter ensures consistent, distortion-free output while protecting system integrity during high-output operation.

Built from durable 15 mm birch plywood and weighing under 40 pounds, the EL12M is designed for rugged touring and stage use. Connectivity includes a combo XLR/TRS input, dual XLR outputs for system linking, and powerCON TRUE1 compatible connectors for secure, professional-grade integration into any PA system.

Features

  • 1200W peak powered 12" stage monitor for professional live performance
  • Coaxial 12" woofer with 2.5" voice coil for phase-coherent monitoring
  • 1" HF driver with 1.75" voice coil for detailed high-frequency response
  • Three selectable voicing modes including vocal and flat instrument settings
  • Ideal for vocals, instruments, electronic drums, and FRFR applications
  • Onboard limiter ensures clean output and system protection
  • Rugged 15 mm birch plywood enclosure built for touring reliability
  • Lightweight sub-40 lb design for easy stage handling and transport
  • Combo XLR/TRS input for flexible connectivity options
  • Dual XLR outputs for easy system linking and signal distribution
  • powerCON TRUE1 compatible input and output connectors
  • Designed for professional stage monitoring applications
  • Made in Canada for premium build quality and reliability
  • Compact wedge design optimized for floor monitoring setups

Specifications

System Type Powered Monitor
Power Rating 1200W Peak (600W Program)
Max SPL 132 dB Peak (120 dB Continuous)
Frequency Response 60 Hz - 20 kHz (+/- 3 dB)
Dispersion (H x V) 60° x 60°
Crossover Frequency 1500 Hz
HF Driver(s) 1" with 1.75" Voice Coil
LF Driver(s) 12" Co-axial Woofer with 2.5" Voice Coil
Power Cable powerCON TRUE1 Connectors (Input / Output)
Power Consumption (typ/max) 2.5A, 6A
Inputs 1x Combo-jack (XLR / 1/4")
Outputs 2x XLR
Level Controls Yes
EQ Controls Mon 1, Mon 2, and Flat Modes
LED Indicators Power, Activity, Protection, Modes
Bar Handles 2x Side, 1x Bottom
Pole Mount Adapter No
Enclosure Materials 15 mm Birch Plywood
Grille Powder-Coated Steel
Covering/Finish Textured Paint
Dimensions (H x W x D) 12.2" (309.88 mm) x 16.3" (414.02 mm) x 17" (431.8 mm)
Weight 38.7 lbs (17.6 kg)
