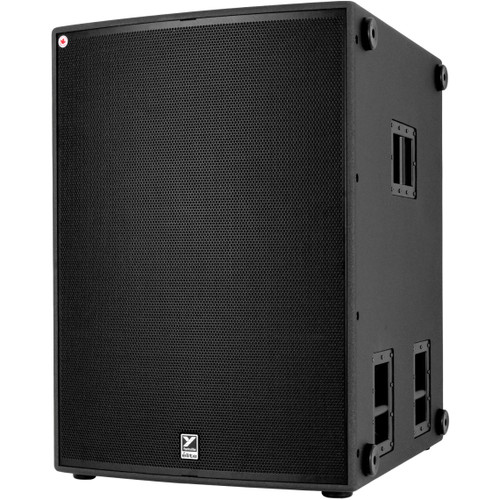

The EL24S Elite Series 24" powered subwoofer is built for professional live sound applications where maximum low-frequency output and exceptional bass performance are essential. Its massive 24" neodymium woofer and 6" voice coil deliver deep, powerful bass with a frequency response of 30 Hz to 100 Hz, making it an ideal choice for demanding large-format sound reinforcement systems.
With 5000 watts of peak power and 2500 watts of program power, the EL24S produces an impressive 143 dB peak SPL and 137 dB continuous SPL. An onboard limiter helps manage high-output operation, while the integrated connectivity includes two XLR inputs, full-range parallel XLR outputs, and two high-passed XLR outputs for flexible system integration.
Built for professional touring and installation environments, the EL24S features a rugged 15 mm birch plywood cabinet for durability and reliability. Pole mount adapters on the top and side provide additional system configuration options, while powerCON TRUE1 compatible input and output connectors support secure professional power connections. Proudly manufactured at the Yorkville factory outside Toronto, Canada, the EL24S delivers the extreme low-frequency performance expected from the Elite Series.
| System Type | Powered Subwoofer |
|---|---|
| Power Rating | 5000W Peak (2500W Program) |
| Max SPL | 143 dB Peak (137 dB Continuous) |
| Frequency Response | 30 Hz - 100 Hz (± 3 dB) |
| Crossover Frequency | 100 Hz |
| LF Driver(s) | 24" Neodymium with 6" Voice Coil |
| Inputs | 2x Combo-jack (XLR/1/4" TRS) |
| Outputs | 2x XLR High-Pass 2x XLR Link (Full Range) |
| Power Cable | powerCON TRUE1 Compatible Connectors (Input/Output) |
| Power Consumption | 6.5A, 12A (typ/max) |
| Level Controls | Yes |
| LED Indicators | Power, Activity, Protection |
| Flying Hardware | No |

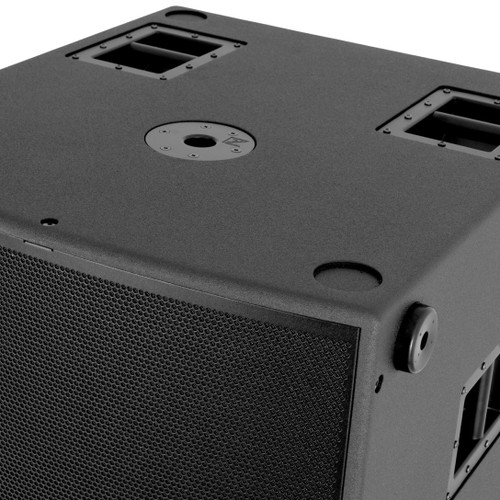

| Pole Mount Adapter | 1x Top, 1x Side |
| Wheels | 2x Rigid, 2x Swivel Casters |
| Bar Handles | 2x Top, 6x Side, 2x Bottom |
| Enclosure Materials | 15 mm Birch Plywood |
| Grille | Powder-Coated Steel |
| Covering/Finish | Textured Paint |
| Dimensions (H x W x D) | 39" (990.6 mm) x 27.9" (708.66 mm) x 31.4" (797.56 mm) (Depth with Casters 36.6") |
| Weight | 240 lbs (109 kg) |
