Audix W3HT5 Wireless Bodypack System with HT5 Headset

Home /
Audix W3HT5 Wireless Bodypack System with HT5 Headset (Discontinued)

Description

Details

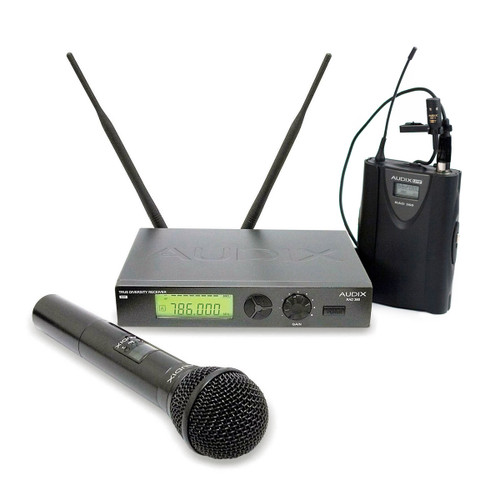

The Audix W3HT5 is a RAD360 Wireless System that is frequency agile with 193 selectable frequencies (per system group) and dual tuner, true diversity receivers.

The RAD360 is designed for a wide range of professional applications including live performances, fixed installations, corporate meetings, education and Houses of Worship.

The HT5 is a professional pre-polarized headworn condenser microphone designed for stage, presentation and broadcast applications. The HT5 is known for its excellent sonic characteristics, intelligibility, low profile, high sensitivity and comfort. Designed for use with the Audix RAD360 wireless, the HT5 is also available in a wired version (Model HT5P).

Characterized with a uniformly controlled omni-directional polar pattern, the HT5 is designed to capture vocals from a comfortable distance of 2”-3”off axis. With a wide frequency range of 20 Hz - 20 kHz, the HT5 will handle high sound pressure levels of ≥140 dB without distortion.

The HT5 is easy to position, lightweight and manufactured with high standards and tight tolerances. Roadworthy construction includes a rubber coated steel alloy frame, a high performance 5 mm capsule, black or beige finish, and a 3’high quality cable terminating in a mini 3-pin XLRf connector.

Features

Features

General:

Frequency agile
Soft-key controls
Backlit LCD menu driven displays
Noise squelch circuitry analyzes signal quality
Surface Acoustic Wave (S.A.W.) filters RF resistance
Tone key squelch eliminates unwanted noise
Tuned antennas
Audio output
RF level meters
Audio meters
Battery power indicators
Easy to use set and lock function
Sensitivity adjustment
Interchangeable head assemblies
Durable metal housings

HT2 Wireless Headset:

Lightweight and comfortable
Hands free, headworn vocal mic
Excellent for live sound vocals
Adjustable and durable construction

Specification

General
Switchable Frequencies	193 (per system group of 24 MHz spaced 125 kHz apart)
Signal-to-Noise Ratio	>110 dB
Compander System	HDX
Pilot Tone	32.768 kHz
R360 Receiver
Receiving System	Dual tuners, true diversity receiver
Image Rejection	50 dB nominal, 45 dB minimum
Signal-to-Noise Ratio	110 dB @ 30 kHz deviation (IEC-weighted), max modulation 75 kHz
Total Harmonic Distortion	1% (10 kHz deviation at 1 kHz)
Sensitivity	26 dBμV (S/N 60 dB at 5 kHz deviation, IEC-weighted) <2.5μV
Intermediate Frequency	55.875 MHz, 10.7 MHz
Audio Output (AF Level Set At “0”)	Unbalanced: 1/4” phone jack Balanced: XLR
Output Connectors	Unbalanced: 1/4” phone jack, Balanced: XLR
Nominal Peak Deviation	Balanced: -24 to +18dBu Unbalanced: -30 to +12dBu (adjustable in 6 dB-steps)
Adjacent Channel Rejection	>68 dB
Intermodulation Spacing	>68 dB
Image Rejection	>72 dB
Power Supply	120V AC 60 Hz; 12-18V DC, 350 mA, with external supply
Dimensions (H x W x D)	1.1" (38 mm) x 8.35" (212 mm) x 6.5" (165 mm)
Net Weight	2.32 lbs (1.05 kg)

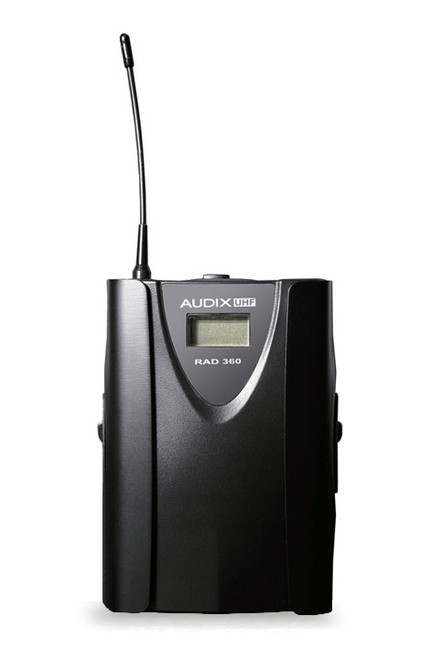

B360 Bodypack
RF Power Output	50 mW Max
Spurious Emissions	Under federal regulations
Input Connector	3 pin mini-XLR
Input Controls	Mic/line switch, and 20 dB potentiometer
Current Consumption	100 mA typical
Input Impedance	Mic: 10kOhm; Line: 1M Ohm
Max Sound Pressure Level	approx. 128–140 dB (depending on mic)
Dimensions (H x W x D)	4" (104 mm) x 2.8" (71.3 mm) x 1" (27 mm)
Net Weight (with Battery)	0.45 lbs (0.20 kg)
HT5 Headset
Transducer Type	Pre-Polarized Condenser
Frequency Response	20 Hz - 20 kHz
Polar Pattern	Omni-directional
Output Impedance	1000 Ohms balanced
Sensitivity	5 mV / Pa @ 1k
Equivalent Noise Level	26 dB (A weighted)
Signal-to-Noise Ratio	68 dB
Maximum SPL	140 dB
Cable/Connector	Miniature 3 pin or4 pin (HT5-4PIN) XLRf connector
Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Housing/Finish	Flexible steel alloy/Black or Beige
Weight	0.068 lbs (0.03 kg)
