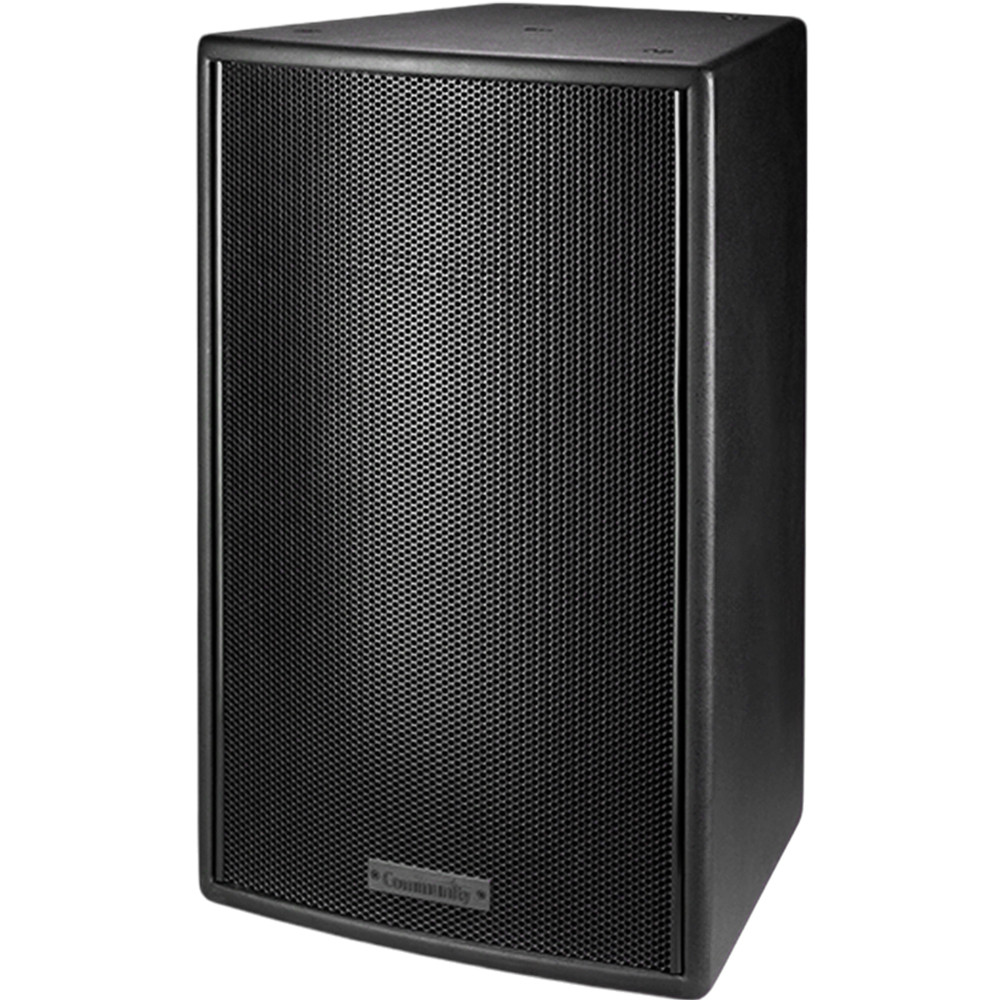

Community V2-1296B 12-inch Black Full-Range Loudspeaker

The V2-1296B is a compact yet powerful 12-inch, two-way, full-range loudspeaker designed for a wide variety of fixed installation applications. Finished in black, it is ideal for venues such as clubs, auditoriums, houses of worship, and multipurpose performance spaces.

With its 90° x 60° dispersion pattern, the V2-1296B provides broad, even coverage, making it especially effective in rooms that are wider than they are deep. Its trapezoidal enclosure supports clustering with other units to form high-output arrays, while M10 threaded rigging points and multiple bracket options enable versatile mounting solutions.

Engineered with Dyna-Tech driver protection circuitry, a ferrofluid-treated HF driver, and Carbon Ring Cone Technology for extended LF response, the V2-1296B delivers punchy bass, low distortion, and clear, intelligible sound reproduction. Featuring both terminal strip and NL4-compatible connectors, this passive loudspeaker integrates easily into professional audio systems.

For optimized performance, it is fully compatible with Community ALC404D Amplified Loudspeaker Controllers, with higher-power ALC models also supported. Built for reliability and sonic quality, the V2-1296B is a versatile solution for professional sound reinforcement.

Features

Features

12-inch LF driver and 1-inch HF driver
Black finish for professional installations
90° x 60° controlled dispersion
Compact trapezoidal enclosure for array configurations
Optimized voicing for full-range music and speech reproduction
DYNA-TECH driver protection circuitry for dependable operation
Ferrofluid-treated HF driver for enhanced heat dissipation
Carbon Ring Cone Technology for improved LF output and excursion
Terminal strip and NL4-compatible input connectors
Multiple bracket options for flexible mounting and arraying
Compatible with Community ALC404D (and higher power ALC models)
5-year warranty

Specification

Operating Range	60 Hz to 18 kHz (-10 dB)
Frequency Response	90 Hz to 16 kHz (±3 dB)
Max Input Ratings	200W continuous, 500W program 40 volts RMS, 80 volts momentary peak
Sensitivity (1W/1m)	98 dB (100 Hz to 12.5 kHz) free space
Maximum Output	121 dB SPL / 127 dB SPL (peak)
Nominal Impedance	8 ohms
Minimum Impedance	6.2 ohms @ 160 Hz
Nominal –6 dB Beamwidth	90° H x 60° V (in vertical position)
Crossover Frequency	1.3 kHz
Recommended Signal Processing	60 Hz, 24 dB/octave Butterworth high pass filter
Drivers	LF 1 x 12" cone HF 1 x 1"
Driver Protection	DYNA-TECH protection circuitry
Input Connection	NL4-compatible locking connector with terminal strip in parallel
Enclosure	Trapezoidal (22.5° included angle) 18 mm, 11-ply cross-laminated birch
Mounting/Rigging Provisions	13 x M10 threaded rigging fittings 4 x M8 threaded fittings for third-party suspension products
Finish	Catalyzed polyester two-part paint, black
Grille	Powder coated steel, black finish
Dimensions (H x W x D)	23.9" (608 mm) x 15.4" (390 mm) x 14.3" (362 mm)
Weight	38.4 lbs (17.4 kg)
Shipping Weight	48.4 lbs (21.95 kg)
