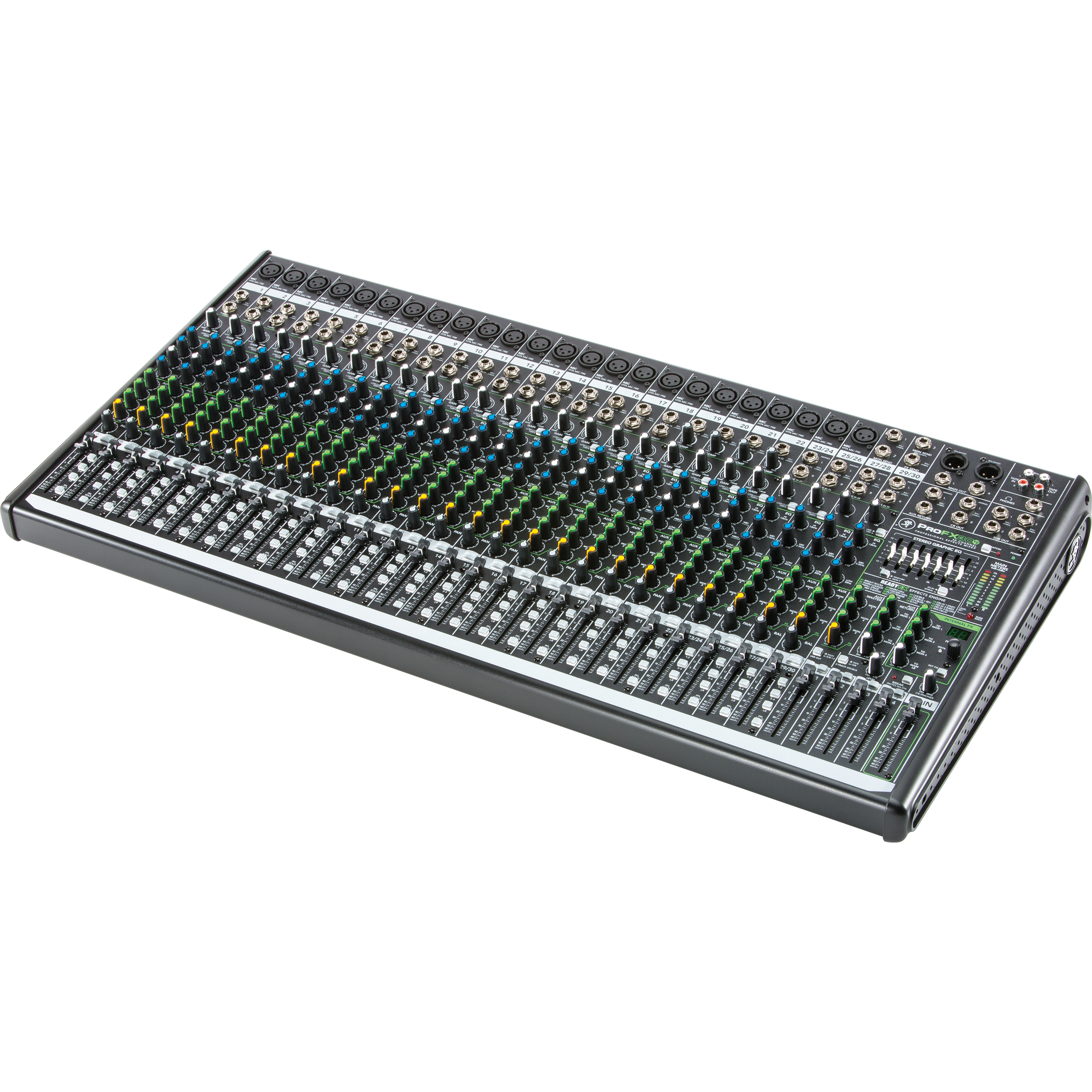

Mackie ProFX30v2 30 Channel 4-Bus Effects Mixer with USB

Home /
Mackie ProFX30v2 30 Channel 4-Bus Effects Mixer with USB (Discontinued)

Description

Details

The Mackie ProFX30v2 30-channel 4-bus effects mixer provides a comprehensive live sound solution ideal for live music venues and full bands. Delivering unmatched sound quality, ProFX30v2 features 24 all-new Mackie Vita™ preamps, which are virtually noiseless and designed specifically for the highly-dynamic world of live sound. ProFX30v2 also includes the immensely powerful new ReadyFX™ effect engine, harnessing floating-point DSP to deliver 16 rich effects that elevate any performance. A no-compromise live sound toolkit includes GEQ, dedicated inline channel compression and a built-in USB interface for hassle-free recording/playback. With a rugged steel chassis and unmatched sonic performance, ProFX30v2 is truly the life of your live mix.

Features

Features

24 extremely low-noise Mackie Vita™ mic preamps designed to add life to any input
All-new ReadyFX™ effects engine with 16 great-sounding effects like reverbs, delays and choruses
Single-knob channel compression for smooth, even dynamic control (ch. 19-22)
7-band graphic EQ for tuning mains or monitors
Built-in USB interface to record the show or provide music playback
4 flexible subgroups for professional mix management
3 aux outputs for monitor mixes, fill speakers and more
3-band EQ with sweepable mids on mono channels
30 high-headroom line level inputs
Individual channel mutes and overload indication
100Hz low-cut filters per channel (18dB/octave)
Channel inserts for connecting outboard processing (ch. 1-18)
60 mm faders for input channels, subgroups and main masters
48V phantom power for connecting condenser mics
Break switch mutes all channels for music playback between sets
Control room / headphone outs with level control
Balanced XLR and balanced/unbalanced 1/4-inch main outputs
Built-in USB recording interface with simple setup via Mac or PC

Choose to record subgroups 1/2 or main L/R mix
Separate USB input level control to mains
USB routable to full-featured channel strip

Great for live recording and perfect for home studios
Stream playback music for live or studio applications
Includes user-friendly Tracktion® recording software
Legendary Mackie “Built-Like-A-Tank” design
Solid steel chassis protects your investment
Tough ABS side protection
Robust internal multi-voltage power supply

Specification

Noise Characteristics
Mic In to Insert Send Out (Max Gain)	–128 dBu
All Outputs, Master Levels Unity, All Channel Levels Off	–85 dBu
Frequency Response
Mic Input to Any Output	20 Hz to 40 kHz (gain at unity, +0 dB / –1 dB)
Distortion (THD+N)
Mic In to Main Out	<0.01% (+4 dBu output)
Attenuation and Crosstalk
Adjacent Inputs @ 1 kHz	–90 dB
Inputs to Outputs @ 1 kHz	–80 dB
Fader Off @ 1 kHz	–75 dB
Mute Switch / Break Switch Mute @ 1 kHz	–100 dB
Common Mode Rejection Ratio (CMRR)
Mic In to Main Out	70 dB (max gain, 1 kHz)
Maximum Levels
All Inputs	+22 dBu
Main Out XLR	+28 dBu
All Other Outputs	+22 dBu
Impedances
Mic In	3.3 kΩ
Channel Insert Return	10 kΩ
All Other Inputs	≥ 20 kΩ
Tape Output	1 kΩ
Phones Output	25 Ω
All Other Outputs	120 Ω Unbalanced, 240 Ω Balanced
Equalization
Mono Channels
Low	±15 dB @ 80 Hz
Mid	±15 dB
High	100 Hz – 8 kHz
Low Cut Filter	18 dB/octave @ 100 Hz
Stereo Channels
Low	±15 dB @ 80 Hz
Mid	±15 dB @ 2.5 kHz
High	±15 dB @ 12 kHz
Dimensions (H x W x D)
Product	3.8" (97 mm ) x 33.6" (853 mm) x 16.6" (422 mm)
Shipping	8.3" (211 mm) x 37.4" (950 mm) x 20.9" (531 mm)
Weight
Net	25 lbs (11.4 kg)
Shipping	34 lbs (15.4 kg)
