Williams AV IR ME2 D IR+ Flex Infrared Assistive Listening System

The IR ME2 D IR+ Flex infrared assistive listening system is a turnkey solution designed for high-performance audio distribution in assistive listening environments. Engineered with Dante network audio integration, this system delivers flexible, scalable, and high-quality infrared transmission for classrooms, theaters, conference rooms, and houses of worship.

This complete kit includes the IR M1 infrared modulator and Wi-Fi server with Dante input support for up to two channels, along with dual IR E4 infrared emitters for wide-area coverage. The included MLB 003 metal linking bar ensures stable emitter alignment and mounting, while the IDP 008 ADA wall plaque provides required accessibility compliance signage.

Designed for reliability and ease of installation, the IR ME2 D system offers professional-grade performance in a compact, fully integrated package.

Features

Features

Complete IR+ Flex assistive listening system with Dante integration
Includes IR M1 modulator with Wi-Fi server and 2-channel Dante input support
Dual IR E4 emitters for expanded infrared coverage
MLB 003 metal linking bar for secure emitter mounting and alignment

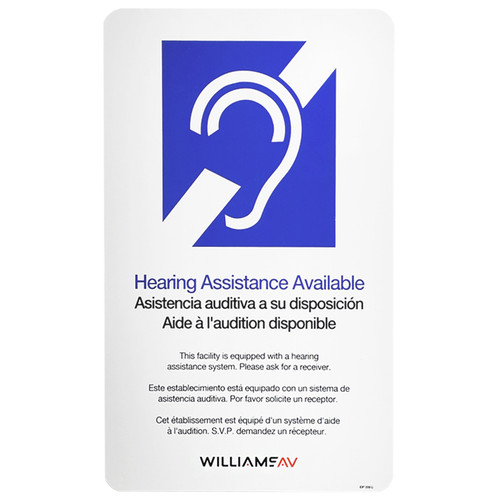

IDP 008 ADA-compliant signage included
Designed for professional AV and assistive listening installations
Scalable and flexible system architecture for modern AV networks
Ideal for compliance-driven public and commercial spaces

Specification

IR M1 D Modulator
Power Supply	110-240 VAC input, +48 VDC output (international desktop supply)
Power Consumption	36W
Audio Inputs	2x XLR/TRS combo (mic/line, balanced/unbalanced, phantom power selectable)
Dante Support	Integrated Dante audio networking
Frequency Response	40 Hz - 16 kHz (+1 dB, -3 dB)
Signal-to-Noise Ratio	67 dB (typical)
Carrier Frequency	Selectable: 2.3/2.8 MHz or 3.3/3.8 MHz
Emitter Outputs	4x RJ-45 (CAT5e) for power, control, and IR signal
Dimensions (H x W x D)	1.75" (44.45 mm) x 19" (483 mm) x 8.2" (208 mm)
Weight	5.2 lbs (2.4 kg)

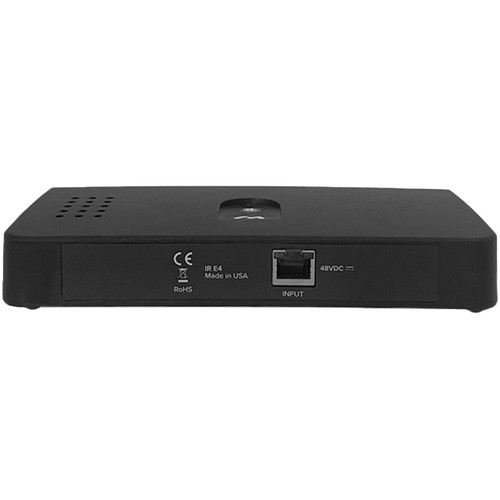

IR E4 Emitter
Power	48 VDC supplied by IR M1 via CAT 5e cable
Coverage Area	Up to 18,000 (1670 m) square feet in single channel mode
Connectivity	+48 VDC Power, RS-485 communication, and Baseband signals for IR transmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1
Operating Requirements	0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Approvals	CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Color	Black
Dimensions (H x W x D)	1.4" (35.56 mm) x 7.5" (190.5 mm) x 3.6" (91.44 mm)
Weight	0.8 lbs (0.36 kg)
